Engineering Guide to UCT Series: Take-up Bearing Units for Precision Adjustment

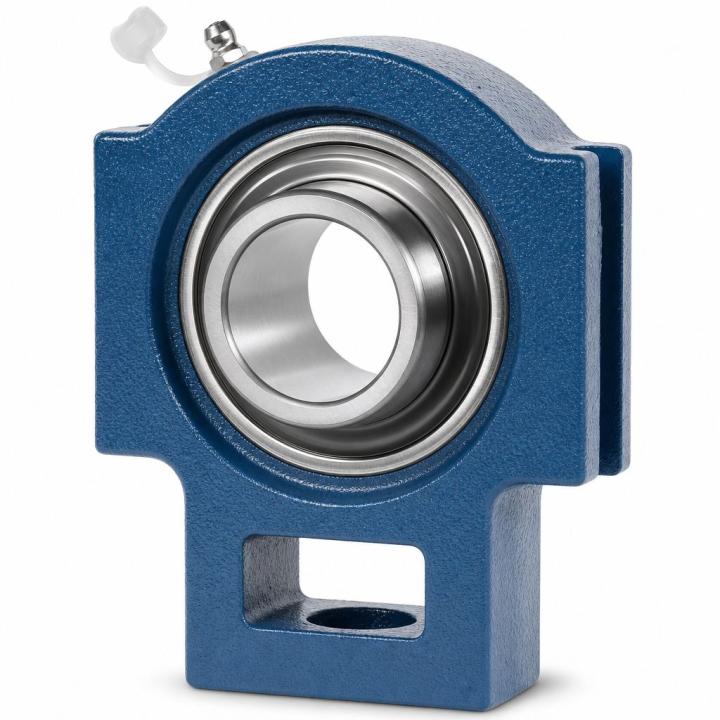

UCT Series (Take-up Bearing Units) are essential components in machinery requiring precise, continuous adjustments of center distances or belt tension. Engineered with specialized side-slide grooves, these units are designed to travel along a rail, providing the necessary mobility to maintain optimal tension in conveyor systems, drive chains, and transmission rollers.
In this technical documentation from Kamyar Gostar Iranian Industrial Group (DKFL), we explore the mechanical functionality, technical specifications, and industrial applications of the UCT series.
1. Distinctive Features of the UCT Series
- Linear Adjustment Capability: Integrated side grooves allow for precise linear travel along take-up frames, enabling accurate tensioning.
- Dynamic Stability: Once positioned, the heavy-duty cast iron construction by DKFL provides vibration damping and load transfer, ensuring operational stability.
- Standardized Compatibility: Designed around the widely available UC-insert series, ensuring seamless bearing replacement and maintenance.
2. Technical Data: UCT Series (DKFL Standard)
| Unit Code | Shaft Dia. (mm) | Length L (mm) | Housing T | Bearing UC |
|---|---|---|---|---|
| UCT 204 | 20 | 94 | T 204 | UC 204 |
| UCT 205 | 25 | 97 | T 205 | UC 205 |
| UCT 206 | 30 | 113 | T 206 | UC 206 |
| UCT 207 | 35 | 129 | T 207 | UC 207 |
3. Industrial Applications
- Conveyor Systems: Maintaining optimal belt tension to prevent slippage and maximize belt service life.
- Printing & Packaging Machinery: Precise roller positioning for uniform material tensioning and high-quality output.
- Agricultural Equipment: Reliable drive-chain tensioning in harvesters and planters operating in rugged field conditions.
4. Installation & Maintenance Guidelines
For optimal performance of the UCT series, ensure the use of high-quality, compatible take-up frames. Regular lubrication through the housing's grease nipple is critical to preventing binding on the adjustment rail and maintaining smooth operation.
