Industrial Bearing Housings are precision-engineered mechanical structures designed to stabilize shaft positioning, support static and dynamic loads, compensate for initial shaft misalignment, and protect the bearing from harsh environmental contaminants. Selecting the correct housing geometry (Pillow Block, Flanged, Take-Up, or Split Housing) directly impacts stress distribution, fatigue life (per ISO 281 standards), and the long-term operational stability of production lines.
Comprehensive Engineering Guide to Industrial Bearing Housings: Analysis of UC-Series Bearing Units and SN-Series Split Housings
Industrial Bearing Housings are precision-engineered mechanical structures designed to stabilize shaft positioning, support static and dynamic loads, compensate for initial shaft misalignment, and protect the bearing from harsh environmental contaminants. Selecting the correct housing geometry (Pillow Block, Flanged, Take-Up, or Split Housing) directly impacts stress distribution, fatigue life (per ISO 281 standards), and the long-term operational stability of production lines.
This technical reference, provided by the Kamyar Gostar Iranian Industrial Group (DKFL) technical engineering department, provides a metallurgical and geometric analysis of the UC-series (Insert Units) and the heavy-duty SN-series split housings.
This technical reference, provided by the Kamyar Gostar Iranian Industrial Group (DKFL) technical engineering department, provides a metallurgical and geometric analysis of the UC-series (Insert Units) and the heavy-duty SN-series split housings.
1. Comparative Guide: Common Housing Types
| UCF | 4-Bolt Flange | Radial/Axial (Side Mount) | Mixers, Side-wall mounting |
| UCFL | 2-Bolt Flange (Rhombus) | Radial (Tight Space) | Packaging machinery |
| UCFC | Round Flange (Spigot) | Radial (High Precision) | Rotary Valves, Gearbox Input |
| UCT | Take-Up Housing | Adjustable Radial | Belt Tensioning Systems |
| UCPA | Short Base (Tapped) | Vertical (Compact) | Compact Chassis |
| SN | Split Plummer Block | Heavy Combined/Shock | Mining, Steel, Cement |
2. Technical Analysis: UC-Series Bearing Units
The UC-series units consist of a cast iron housing (standard HT200/GG20 grade) and a deep-groove ball bearing with a convex spherical outer ring. This design allows for self-alignment of up to 2-3 degrees, compensating for shaft deflection or mounting inaccuracies without compromising load capacity.
Key Geometries:

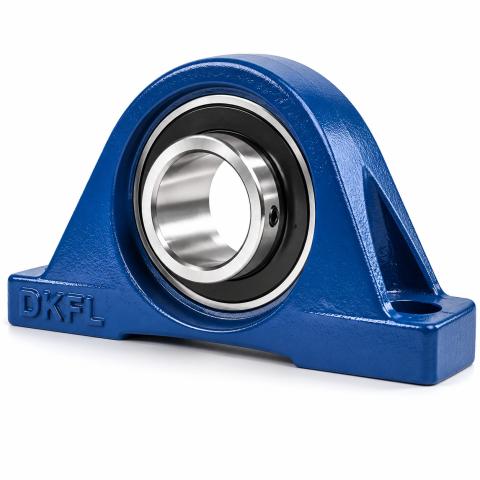

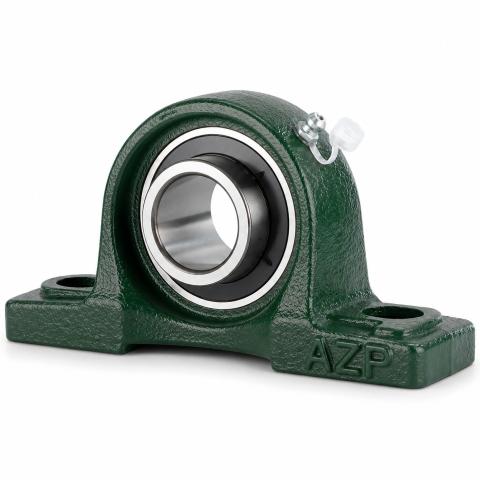

- UCP: The industry-standard pillow block. DKFL units feature a "Solid Base" construction, which prevents deformation and structural failure under heavy bolt-tightening torques.

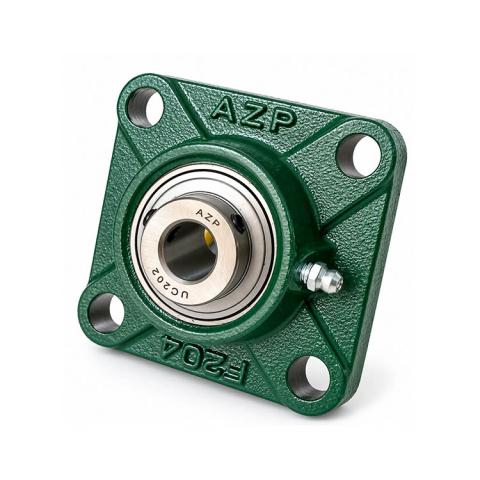

- UCF & UCFL: Flanged units for mounting perpendicular to the shaft axis. The 4-bolt UCF offers superior torsional rigidity, while the 2-bolt UCFL is ideal for tight-space constraints.

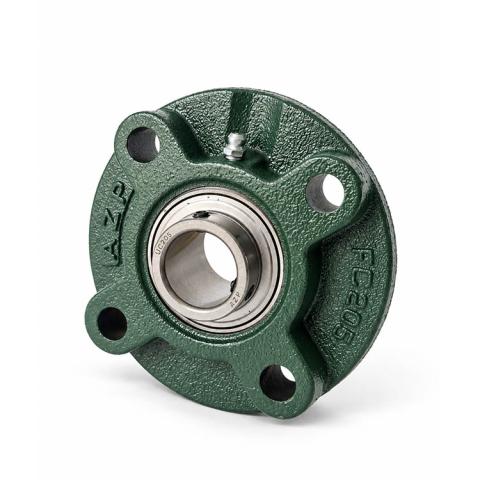

- UCFC: Features a pilot spigot ring for precise centering, eliminating shear stress on mounting bolts.
- UCT: Designed for rail-mounting, enabling adjustment of shaft position for belt or chain tensioning.
- UCPA: A short-base design with tapped mounting holes, ideal for compact machinery frames.
3. SN-Series Split Plummer Blocks (Heavy-Duty)
SN-Series (e.g., SN 500, SN 600) housings are two-piece composite structures built to DIN 736/739 standards. They are engineered to house spherical roller bearings or self-aligning ball bearings (with adapter sleeves), capable of handling massive shock loads and heavy radial forces.
- Maintenance Ease: The split-cap design allows for inspection or bearing replacement without disassembling the entire drive train.
- Advanced Sealing: Supports Felt Strips, Double Lip Seals, and Labyrinth Rings for operation in contaminated environments.
- Lubrication Flexibility: Compatible with both grease lubrication and oil-bath systems, including oil level indicators.
4. Engineering Selection Checklist
- Load Capacity: Use UC units for light-to-medium loads; use SN housings with spherical roller bearings for heavy-duty industrial shocks.
- Locking Method: UC bearings typically use set screws or eccentric locking collars. SN housings use adapter sleeves and locknuts for a precise, friction-locked fit.
- Base Construction: Ensure the housing has a "Solid Base" to avoid structural failure and debris accumulation.
5. Engineering FAQs
What is the main difference between a UCP Pillow Block and an SN Housing?
A UCP unit is a pre-assembled, integrated unit designed for light-to-medium loads. An SN housing is a separate two-piece split housing that requires custom selection of the bearing, adapter sleeve, and seals, designed specifically for heavy-duty, high-maintenance industrial environments.
Why is the grease nipple important?
The grease nipple allows for the direct injection of fresh lubricant into the bearing raceway. This renews the elastohydrodynamic (EHL) film and purges aged, contaminated grease out through the seal lips, significantly extending the service life of the unit.
