Engineering Guide to Needle Roller Bearings: Maximum Load Density in Compact Assemblies
Needle Roller Bearings are a specialized class of cylindrical roller bearings characterized by rollers with a small diameter relative to their length (length-to-diameter ratio ≥ 4:1). This compact geometry makes them the optimal mechanical solution for applications demanding extremely high radial load capacity and rigidity within restricted radial envelope spaces.
In this technical guide from Kamyar Gostar Iranian Industrial Group (DKFL), we explore the mechanical principles, classification types, and metallurgical benchmarks of needle roller bearings.
1. Key Technical Features & Benefits
- Extremely Low Cross-Section: Allows dramatic downsizing of machine housings while maintaining exceptional load performance.
- Superior Radial Load Capacity: High contact line area and a large number of rolling elements per pitch circle ensure superior load distribution.
- High System Rigidity: Minimal elastic deformation under severe static and shock-loading regimes.
- Inner-Ringless Configurations: Can run directly on a hardened and ground shaft raceway (58–64 HRC) to minimize the pitch circle diameter.
2. Classification of DKFL Needle Roller Bearing Types
| Type | Common Series | Design Characteristics | Typical Application |
|---|---|---|---|

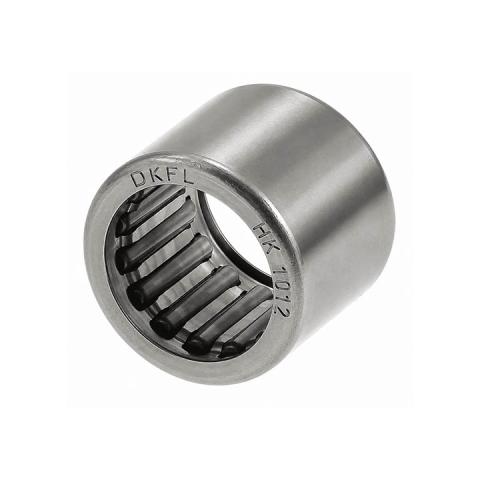

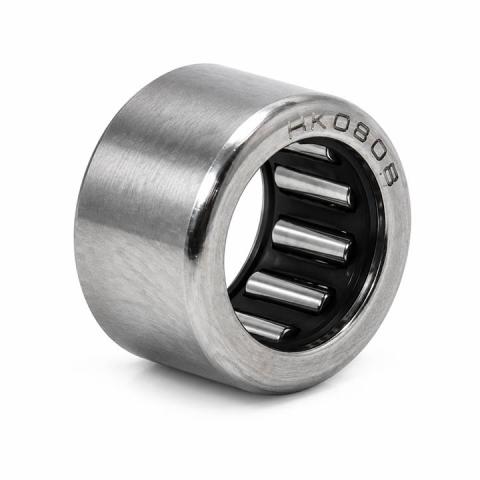

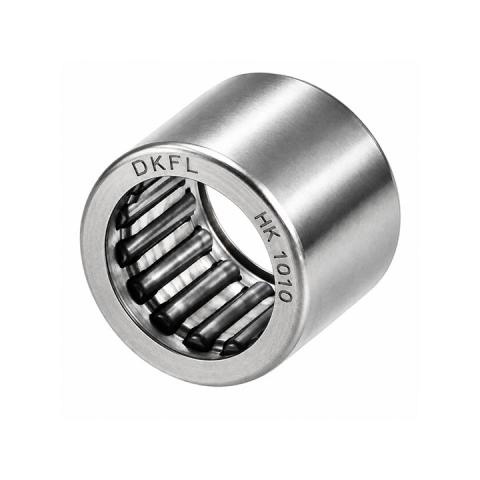

| Drawn Cup | HK (Open), BK (Closed) | Thin-walled, deep-drawn outer ring with no inner ring | Compact gearboxes, hydraulic pumps, power tools |

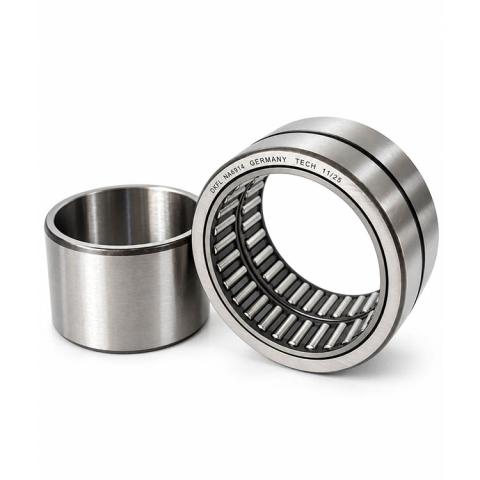

| Machined / Solid Ring | NA (with inner ring), RNA (without inner ring) | Machined rigid outer ring providing high precision & load ratings | Industrial drives, heavy power transmissions, elevators |
| Roller & Cage Assembly | K, K...ZW (Single/Double Row) | Cage-guided rollers requiring hardened shaft & housing bore | Engine connecting rods, crankshafts, compressors |
| Thrust Needle Bearings | AXK, AS, LS | Accommodate pure unidirectional axial load in minimum axial space | Automotive steering systems, automatic transmissions |
3. Metallurgy and Manufacturing Standards
Due to the concentrated contact zones resulting from small roller diameters, material purity is vital. DKFL implements rigorous quality benchmarks:
- Precision Rollers: Crafted from 100Cr6 (GCr15) high-carbon chromium bearing steel, heat-treated to 60–64 HRC for peak fatigue endurance.
- Crowner Profile Rollers: Relieves edge stresses at the raceway interface, preventing localized spalling and allowing slight misalignment.
- High-Strength Cages: Formed steel cages or glass-fiber reinforced polyamide 6.6 (PA66-GF) for precise roller retention and reduced rotational inertia.
4. Installation & Shaft Preparation Guidelines
- Shaft Raceway Standards: When operating without an inner ring, the shaft must achieve a surface hardness of 58–64 HRC and a fine ground surface finish of Ra ≤ 0.2 μm.
- Mounting Practice: For drawn cup units (HK/BK), use a specialized arbor press fixture contacting only the stamped rim to prevent outer cup distortion.
- Lubrication: High-quality lithium-complex grease or circulating oil must be introduced prior to commissioning to mitigate boundary friction.
