Engineering Guide to Angular Contact Ball Bearings: Contact Mechanics, Configurations & Selection
Angular Contact Ball Bearings are essential precision components engineered to sustain high rotational speeds alongside demanding combined loads. Unlike standard deep groove bearings, their raceways in the inner and outer rings are displaced relative to each other along the bearing axis. This asymmetrical internal geometry establishes an inclined contact line, permitting the transmission of significant axial thrust loads simultaneously with radial loads.
Manufactured by Kamyar Gostar Iranian Industrial Group (DKFL), our portfolio delivers exceptional rotational accuracy, structural rigidity, and heat dissipation across precision machine tool spindles, industrial pumps, and power transmissions.
1. Contact Angle Geometry ($\alpha$) & Load Relationships
The contact angle ($\alpha$) is formed between the line of action through the ball contact points and the radial plane perpendicular to the shaft axis. The magnitude of this angle dictates axial capacity versus permissible rotational speed:
- 15° Contact Angle (Suffix C): Engineered for ultra-high-speed spindle operations where low heat generation and centrifugal force mitigation are paramount under predominant radial loads.
- 25° Contact Angle (Suffix AC): Optimal balance of high-speed capability and axial stiffness, widely specified in CNC milling and lathe main spindles.
- 40° Contact Angle (Suffix B): Maximum axial load ratings and high axial rigidity, making it the industry standard for centrifugal process pumps, industrial gearboxes, and screw compressors.
2. Structural Variants: Single-Row, Double-Row & Four-Point Contact
DKFL supplies angular contact bearings in three primary kinematic designs:
- Single-Row Bearings (70XX, 72XX, 73XX Series): Accommodate unidirectional thrust loads. Standardly deployed in matched paired sets to provide bidirectional positioning and controlled preloading.

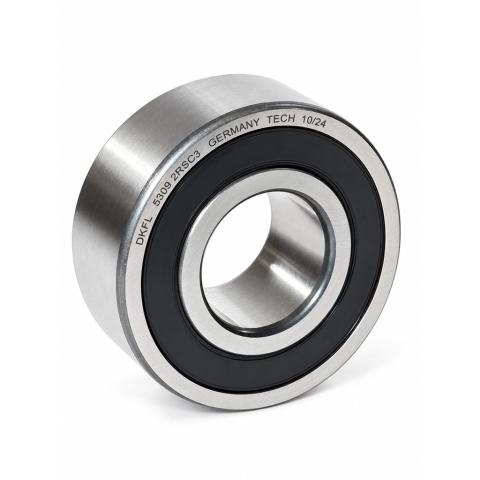

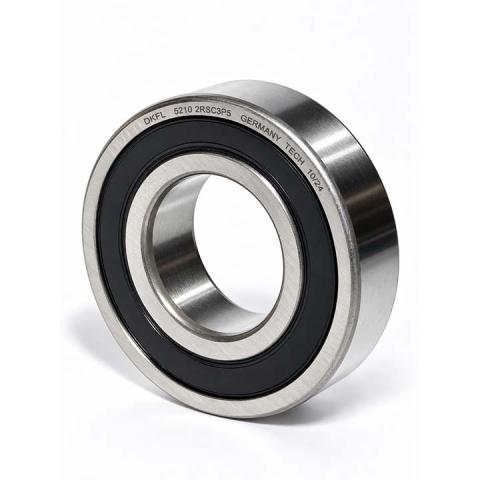

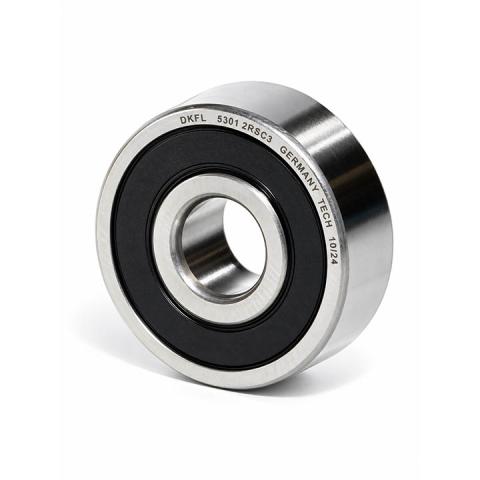

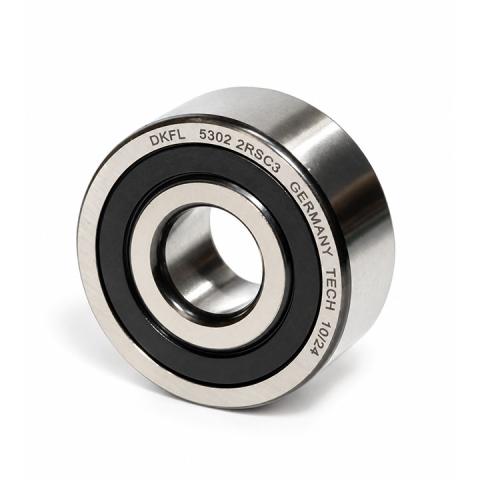

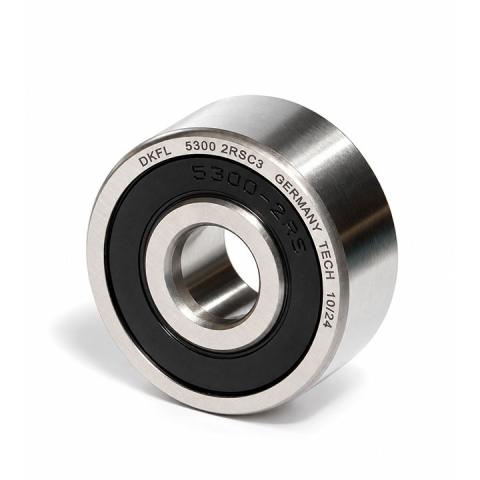

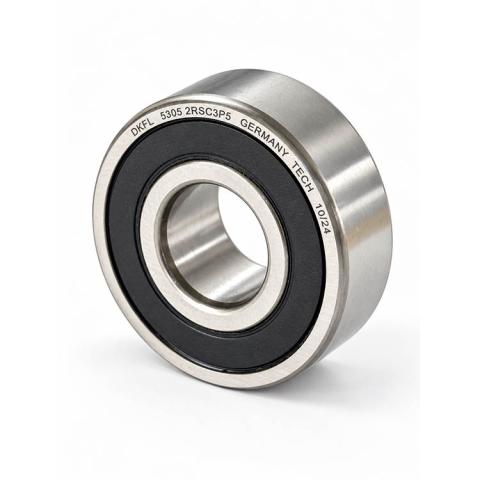

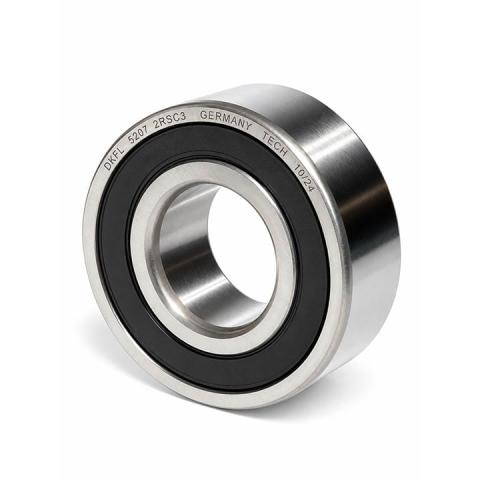

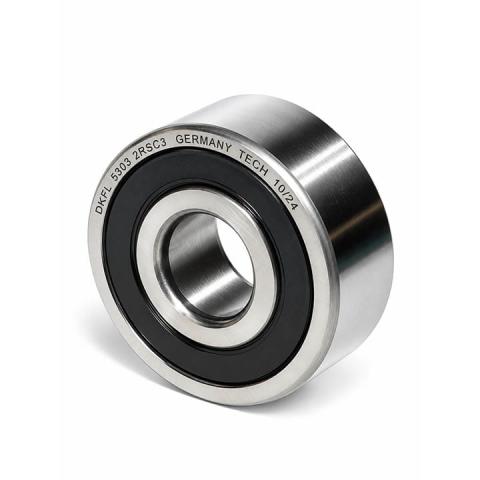

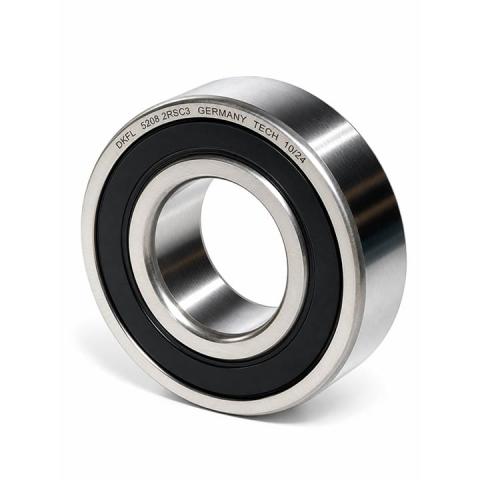

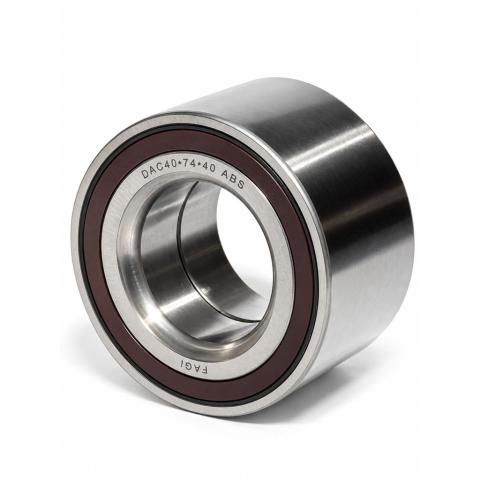

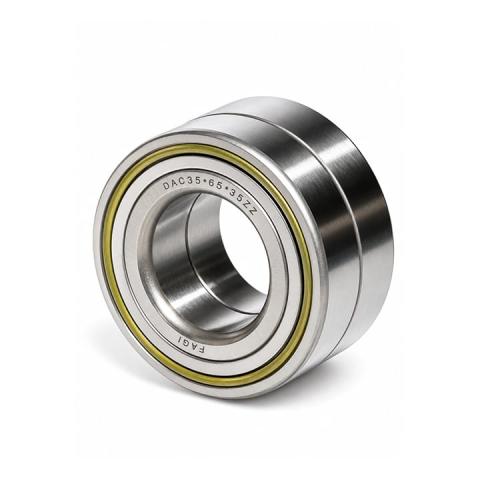

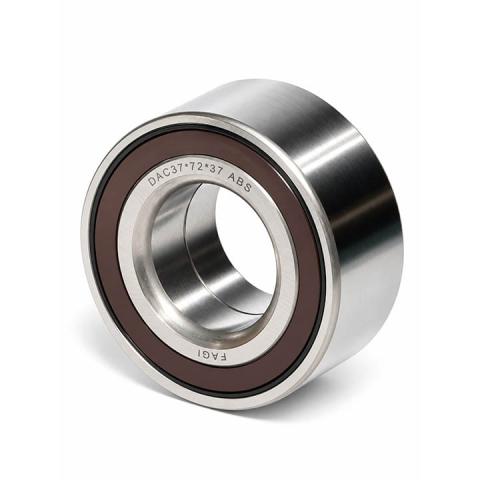

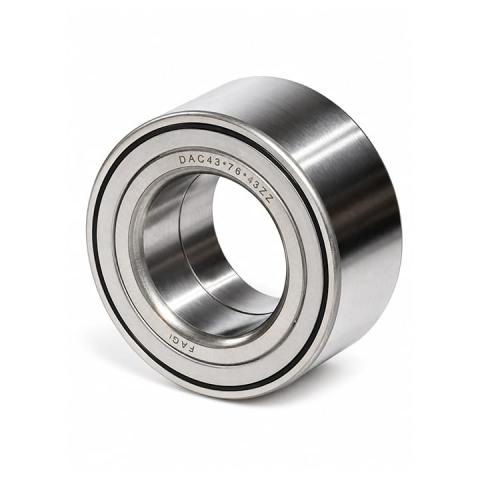

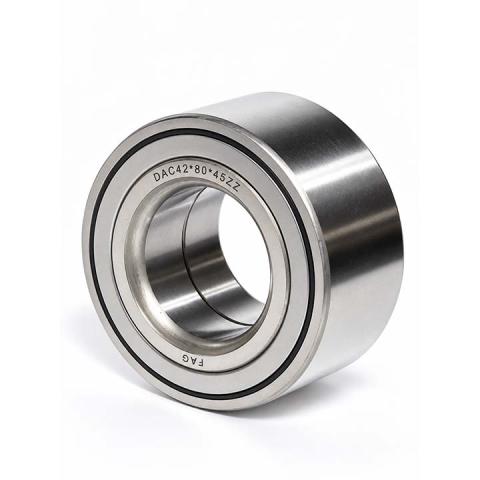

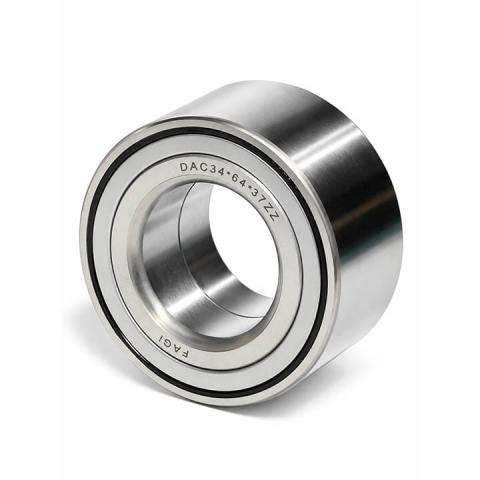

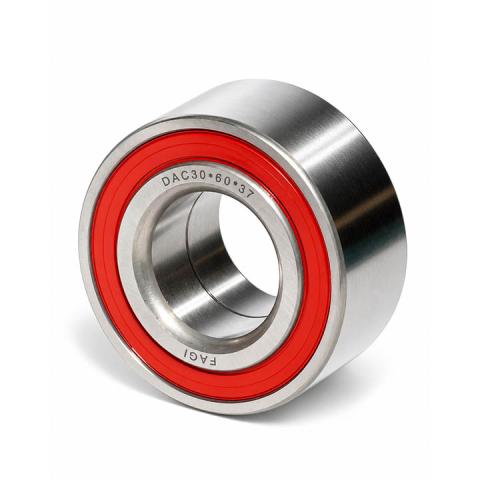

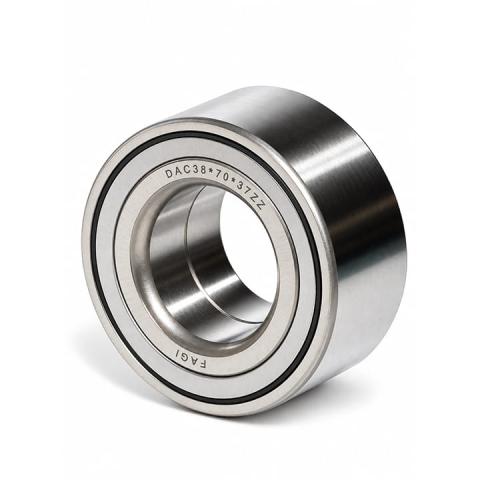

- Double-Row Bearings (32XX, 33XX, 52XX, 53XX Series): Equivalent to two single-row bearings arranged back-to-back within a compact envelope. Capable of handling reversing thrust loads and tilting moments.
- Four-Point Contact Bearings (QJ Series): Feature a split inner ring that allows accommodation of heavy axial forces in both directions within narrow axial envelope dimensions.
3. Matched Bearing Arrangements & Mounting Schemes
| Arrangement Type | Load Line Convergence | Load Handling Profile | Moment Rigidity |
|---|---|---|---|
| Back-to-Back (DB) | Divergent Lines | Bidirectional axial loads + radial loads | High (large effective bearing spread) |
| Face-to-Face (DF) | Convergent Lines | Bidirectional axial loads + tolerance to minor shaft flexure | Moderate |
| Tandem (DT) | Parallel Lines | High unidirectional axial loads evenly shared | Requires opposing supporting set |
4. DKFL Manufacturing Standards & Preload Control
DKFL Angular Contact Ball Bearings are precision-machined from vacuum-degassed GCr15 / 100Cr6 bearing grade steel, thermally stabilized for dimensional retention under operating temperatures up to +150°C. Depending on operational speeds and vibration severity, cages are available in solid machined brass (suffix MP), glass-fiber reinforced polyamide 66 (suffix TVP), and fabric-reinforced phenolic resin for high-frequency spindle drives.
DKFL Preload Guidance: Universal matchable bearings (Suffix GA, GB, GC for Light, Medium, and Heavy preload) eliminate the need for custom shimming, guaranteeing optimal internal stress distribution, reduced ball skidding during rapid acceleration, and sustained running accuracy.
