Engineering Guide to Tapered Roller Bearings: Classification, Configurations, and Mechanics

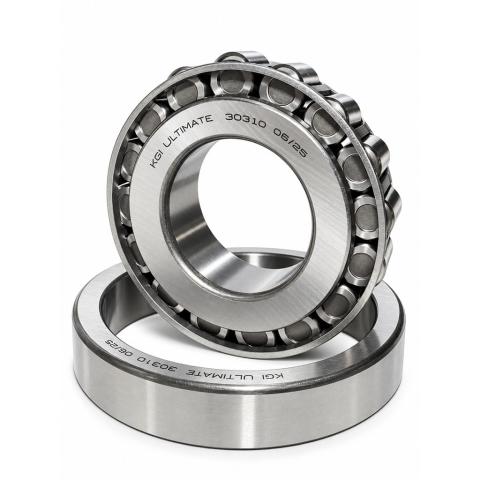

Tapered Roller Bearings are uniquely engineered power transmission components designed to simultaneously accommodate high combined radial and axial (thrust) loads. The conical geometry of the raceways and tapered rollers converges at a common apex on the bearing axis of rotation, ensuring pure rolling motion with minimal frictional torque.
In this engineering guide from Kamyar Gostar Iranian Industrial Group (DKFL), we provide a technical breakdown of classifications, mounting configurations, metallurgical standards, and industrial applications.

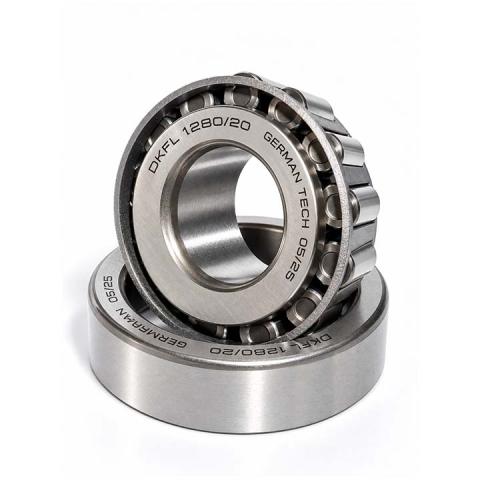

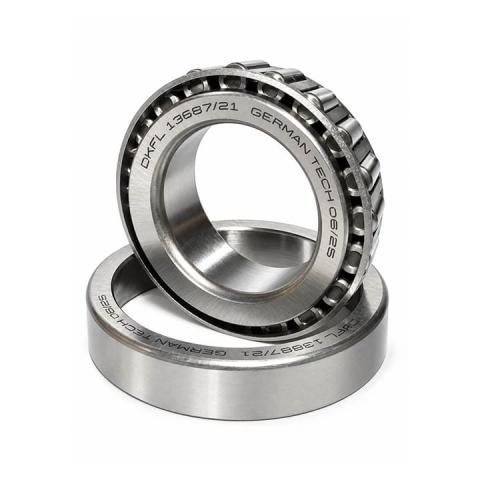

1. Bearing Anatomy: Cup and Cone Assembly

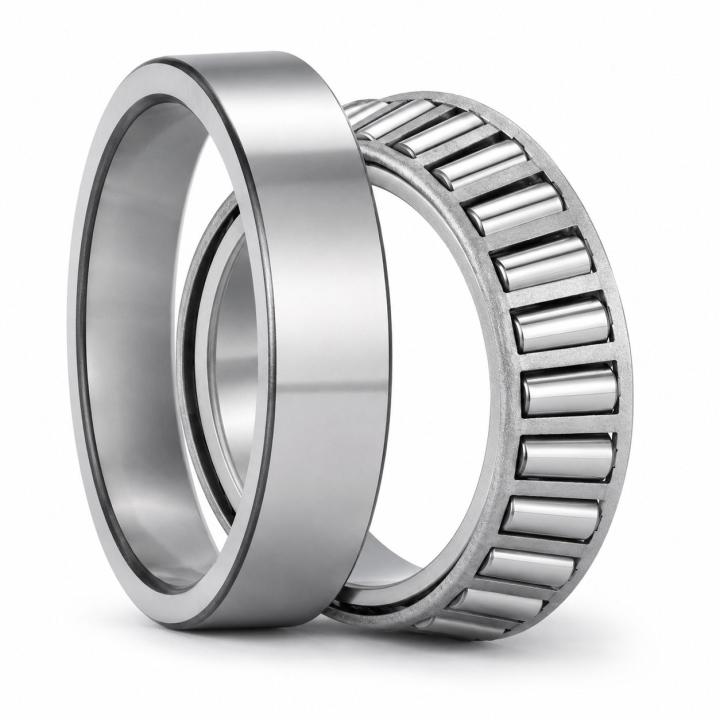

Tapered roller bearings feature a separable design comprising two primary components:
- Cone Assembly: The inner ring, tapered rollers, and retaining cage unit.
- Cup: The independent outer ring, allowing separate mounting and precise internal clearance/preload adjustment.
- Contact Angle ($\alpha$ two primary components:
- Cone Assembly: The inner ring, tapered rollers, and retaining cage unit.
- Cup: The independent outer ring, allowing separate mounting and precise internal clearance/preload adjustment.
- Contact Angle ($\alpha$): A steeper cup raceway angle increases the bearing's axial-to-radial load capacity ratio.
2. Structural Classifications
B) Double-Row (TDI & TDO Configurations)
Equipped with two roller rows to absorb bidirectional thrust loads and high tilting moments. TDO features a one-piece double outer cup and two single cones; TDI features a one-piece double inner cone and two single cups.
C) Four-Row (TQO Series)
Engineered for heavy-duty industrial roll neck applications in steel and metal rolling mills, delivering maximum dynamic and static load ratings at low to medium rotational speeds.
3. Mounting Arrangements
- Back-to-Back (DB): Divergent load lines maximize system rigidity against overturning moments.
- Face-to-Face (DF): Convergent load lines provide accommodating alignment flexibility.
- Tandem (DT): Parallel load lines share high unidirectional thrust load across both bearings.
4. DKFL Metallurgical Standards
DKFL tapered roller bearings are manufactured using premium high-carbon chromium steel GCr15 (100Cr6), engineered under precise heat treatment protocols:
- Hardness Range: $60 - 64\text{ HRC}$ across raceways and rollers for superior anti-fatigue and wear resistance.
- Tolerance Precision: Conforms strictly to ISO 492 Normal (P0) and Precision (P6) standards.
- Cage Options: Stamped high-strength sheet steel or precision-machined brass for heavy-vibration environments.

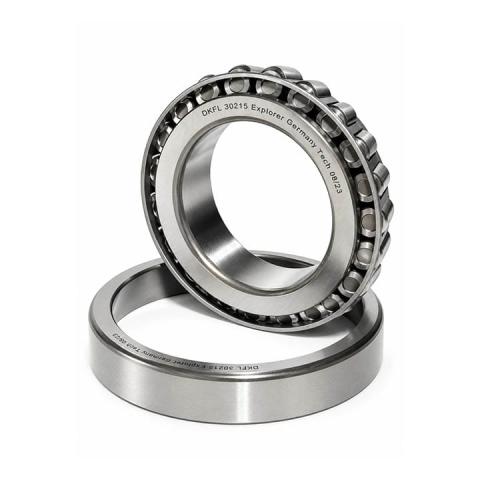

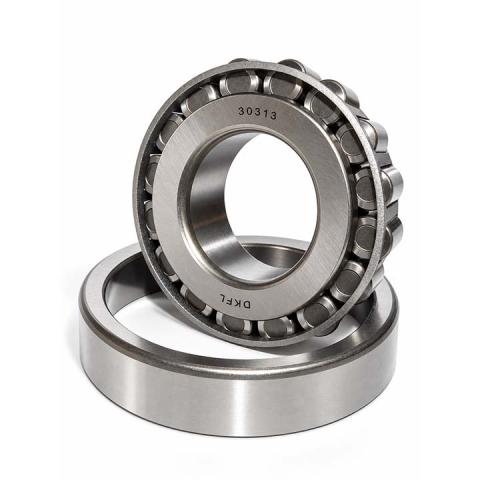

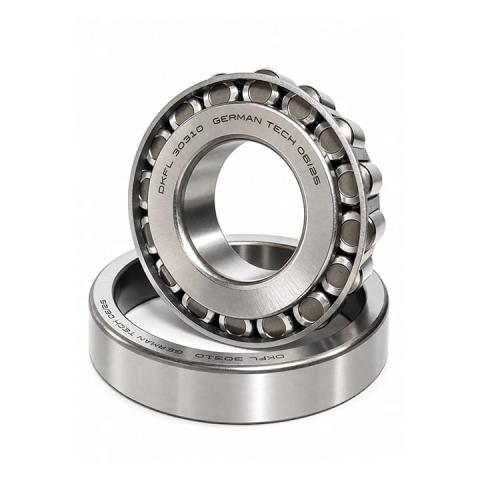

5. Technical Selection Matrix
Series / Type Row Count Thrust Load Direction Rigidity Level Key Applications 302XX & 303XX Single-Row Unidirectional Medium - High Gearboxes, Vehicle Axles, Centrifugal Pumps 322XX & 323XX Single-Row (Heavy) Unidirectional (Heavy) Very High Mining Crushers, Heavy-Duty Wheels TDI / TDO Series Double-Row Bidirectional Excellent Wind Turbines, Port Cranes, Heavy Reducers TQO Series Four-Row Heavy Bidirectional Maximum Hot & Cold Rolling Mill Roll Necks
