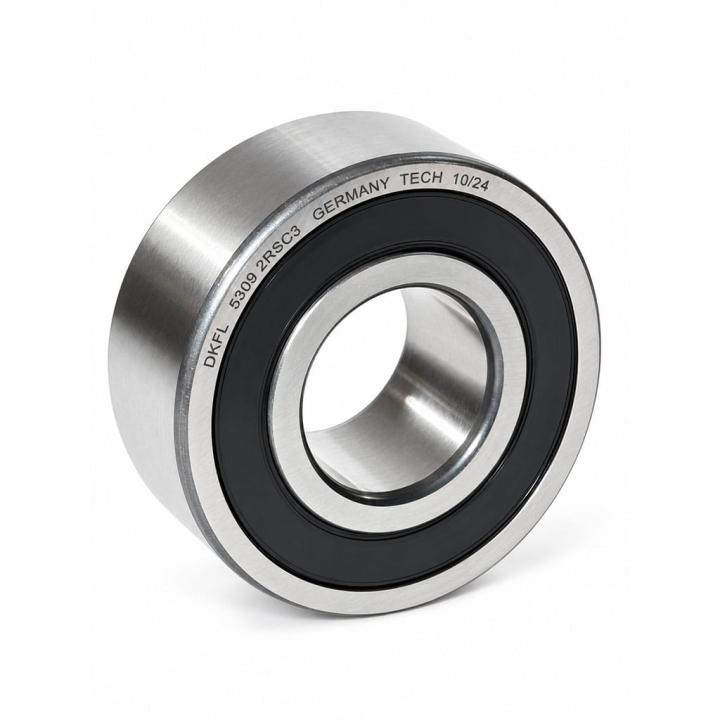

DKFL Double-Row Angular Contact Ball Bearing 5309 2RS C3
The ultimate master of multi-directional loads and high-speed operation with dual-side protection
When Loads Strike from Multiple Directions: What Is the Solution?
In the demanding world of industrial machinery, electric motors, and pumps, operating conditions are rarely static or one-dimensional. In many units, the rotating shaft does not merely carry the dead weight of components; belt tension, hydraulic pressure, and sudden operating shocks subject the shaft to combined forces—both perpendicular to the shaft (radial loads) and sideways from both directions (bidirectional axial/thrust loads). Under such harsh conditions, a standard deep groove ball bearing quickly succumbs to fatigue, develops excessive play, or breaks down prematurely.
The definitive engineering solution to this challenge is the ultra-durable 5309 2RS C3 Angular Contact Ball Bearing from the reputable DKFL brand. This bearing effectively functions like a pair of single-row angular contact bearings arranged back-to-back within a single, integrated envelope. Its internal architecture positions the balls along angled raceways, allowing it to withstand thrust loads from both directions like a solid steel barrier—without compromising smooth, low-friction rotation in the slightest.
Engineered to resolve real-world maintenance and industrial challenges, DKFL equips this bearing with dual contact rubber seals (2RS) and standard industrial thermal internal clearance (C3). The result is a drop-in, maintenance-free component that requires no initial lubrication and effortlessly handles elevated operating temperatures. Below, we break down every technical aspect of this robust bearing in plain, accessible terms.
Decoding Part Number 5309 2RS C3 Made Simple
The alphanumeric designation etched on the bearing face reveals all of its critical operational specifications:
- Prefix 5: Indicates that this is a "Double-Row Angular Contact Ball Bearing." Two rows of precision steel balls are arranged along inclined contact angles to neutralize thrust and combined forces acting from both sides.
- Series 3 (Dimensional Series): Designates the cross-sectional weight class and structural strength. The 3-series is a heavy-duty, reinforced profile with thicker rings and larger ball diameters engineered to absorb heavy mechanical shocks.
- Bore Code 09: Multiplying this number by 5 gives the exact bore size. Thus, this bearing is precision-machined for shafts measuring exactly 45 mm in diameter.
- Suffix 2RS (Dual Rubber Contact Seals): Two durable nitrile rubber (NBR) seals reinforced with steel backing plates are fitted to both sides of the bearing. These seals lock the factory-injected grease inside while completely blocking the ingress of dust, airborne contaminants, metallic particles, and moisture.
- Suffix C3 (Internal Radial Clearance): Denotes an internal clearance greater than Normal (CN) at ambient temperature. As the shaft spins at high speeds and generates operational heat, the metal expands. The C3 clearance compensates for this thermal expansion, preventing the rolling elements from binding or seizing.
DKFL 5309 2RS C3 Technical & Dimensional Specifications
| Part Number | 5309 2RS C3 (Equivalent to DIN/ISO 3309 2RS) |
| Manufacturer Brand | DKFL |
| Inner Diameter / Bore (d) | 45 mm |
| Outer Diameter (D) | 100 mm |
| Total Width / Thickness (B) | 39.7 mm |
| Internal Construction | Double-Row Angular Contact (Bidirectional Thrust & Radial Support) |
| Sealing & Protection | Dual-Side Reinforced NBR Rubber Contact Seals (2RS) |
| Lubrication State | Pre-lubricated with high-grade, high-temperature grease (Maintenance-Free) |
| Internal Clearance Class | C3 (Greater than Normal clearance for smooth operation under thermal growth) |
Why the DKFL 5309 2RS C3 is the Smart Engineering Choice
1. Replaces Two Bearings in a Single Compact Envelope
In conventional mechanical assemblies, controlling shaft axial end-play required pairing two separate single-row angular contact bearings back-to-back or face-to-face. This setup consumed excessive axial shaft space and required meticulous shimming to adjust pre-load and clearance. The 5309 combines this functionality into a single pre-adjusted unit, eliminating mounting errors and significantly reducing housing footprint requirements.
2. Complete Protection with 2RS Rubber Contact Seals
Particulate dust, washdown moisture, and dirty oil spray are the leading causes of bearing failure in industrial environments. While open designs or shielded models (ZZ) can allow fine contaminants to enter, DKFL's 2RS dual-lip rubber seals provide an impenetrable barrier. The premium factory-filled grease remains uncompromised throughout the bearing's entire lifecycle, completely eliminating the need for periodic re-greasing.
3. Prevents Thermal Seizure with C3 Internal Clearance
Equipment utilizing this bearing size typically operates continuously for extended shifts. High rotational speeds combined with ambient heat and motor transmission induce thermal expansion in the steel shaft. A standard-clearance bearing under these conditions can squeeze the rolling elements, causing rapid heat build-up and catastrophic seizure. The engineered C3 clearance accommodates this thermal growth, maintaining smooth, silent, and unrestricted rotation.
4. Certified DKFL Metallurgy & Precision Grinding
DKFL manufactures this unit using 100% through-hardened high-carbon chromium bearing steel (GCr15/AISI 52100). The raceways are superfinished with high-precision micro-grinding to reduce operating vibration to absolute minimum levels. This manufacturing precision maximizes drive efficiency and lowers electrical power consumption in motor applications.
Where Is This Bearing Used?
Due to its high rigid double-row construction and common 45 mm bore diameter, the 5309 2RS C3 is an indispensable component in critical industrial machinery:
- Industrial Centrifugal & Multistage Slurry Pumps: Where the impellers generate strong axial hydraulic thrust along the shaft axis, preventing shaft displacement.
- Industrial Helical & Planetary Gearboxes: On shaft positions where angled gear teeth generate combined radial and axial thrust loads.
- Heavy-Duty Electric Motors & Generators: Particularly in vertically mounted motors or drives carrying heavy belt-pull loads.
- Rotary Screw & Reciprocating Air Compressors: Designed to stabilize reciprocating piston pulses and high-speed rotor thrust forces.
- Agricultural & Soil Preparation Machinery: Operating in dusty, muddy fields where 2RS seals prevent dirt and water ingress.
- Industrial Mixers, Agitators & Shredders: Where handling dense, high-viscosity materials transmits shock axial thrust back into the drive shaft.
Installation & Maintenance: Secrets to 10x Longer Service Life
Even the finest bearing in the world will fail within days if mounted incorrectly. Observe these fundamental installation rules to ensure optimal longevity:
1. Never Strike the Outer Ring or the Rubber Seals: When mounting the bearing onto the shaft, all mechanical press force or impact from a brass drift/mounting sleeve must be applied strictly and solely to the inner ring. Striking the outer ring transmits shock through the balls, denting the raceways (brinelling) and causing immediate grinding noise upon startup.
2. Do Not Remove or Tamper with the Rubber Seals: 2RS bearings are pre-filled in cleanroom factory conditions with a precisely metered quantity of high-grade grease. Never pry open the seals to pack extra grease or wash the bearing with solvents/diesel. Damaging the seal lips destroys their contact integrity and causes lubricant loss.
3. Inspect Shaft Tolerances and Surface Condition: Before mounting, clean the shaft journal and lightly polish away any rust, burrs, or fretting corrosion. An out-of-round or oversized shaft will pinch the inner ring and overload the internal clearance.
4. Use Induction Heating When Possible: The most reliable method for mounting a 45 mm bore bearing is uniform thermal expansion using an induction heater up to approximately 90–100°C (194–212°F). At this temperature, the bearing slides onto the shaft smoothly by hand without any hammering.
5. Monitor Initial Operation: After commissioning, inspect for abnormal temperature spikes or unusual high-frequency whining. While operating warm to the touch is standard, excessive heat indicates mounting misalignment, improper shaft fits, or belt over-tensioning.
Frequently Asked Questions
What is the difference between designation 5309 and 3309?
Under international ISO/DIN standards, both designations represent the exact same physical dimensions (45 mm bore, 100 mm outer diameter, and 39.7 mm width) and internal double-row angular contact geometry. They are fully interchangeable across industrial machinery.
Can I use a 5309 bearing in place of a standard 6309 deep groove ball bearing?
Both share identical inner (45 mm) and outer (100 mm) diameters, but the 5309 is substantially wider (39.7 mm compared to 25 mm for the 6309). If your housing and shaft provide sufficient axial width, the 5309 offers vastly superior load capacity and bidirectional thrust stability.
Does this bearing require periodic re-greasing?
No. The "2RS" suffix denotes contact rubber seals on both faces that retain the original factory grease. This bearing is classified as completely maintenance-free for its operational design life.
Why is C3 clearance essential for pumps and electric motors?
Because pumps and electric motors operate under continuous duty cycles that generate significant heat. Standard internal clearance can be completely absorbed by shaft thermal expansion, leading to ball preloading and early burn-out. C3 clearance preserves internal running geometry under thermal growth.
How does DKFL compare to generic market brands?
DKFL utilizes high-purity bearing alloy steel, micron-level raceway superfinishing, and high-performance NBR seal compounds. This delivers vibration-free, reliable performance and long-lasting service life at a highly competitive, direct-to-industry cost.
Uninterrupted Stability and Precision for Your Critical Machinery
Equip your production line with genuine DKFL 5309 2RS C3 double-row angular contact ball bearings from KGICO to eliminate unscheduled shutdowns and minimize routine maintenance costs.
Inquire & Order DKFL 5309 2RS C3 Bearing
