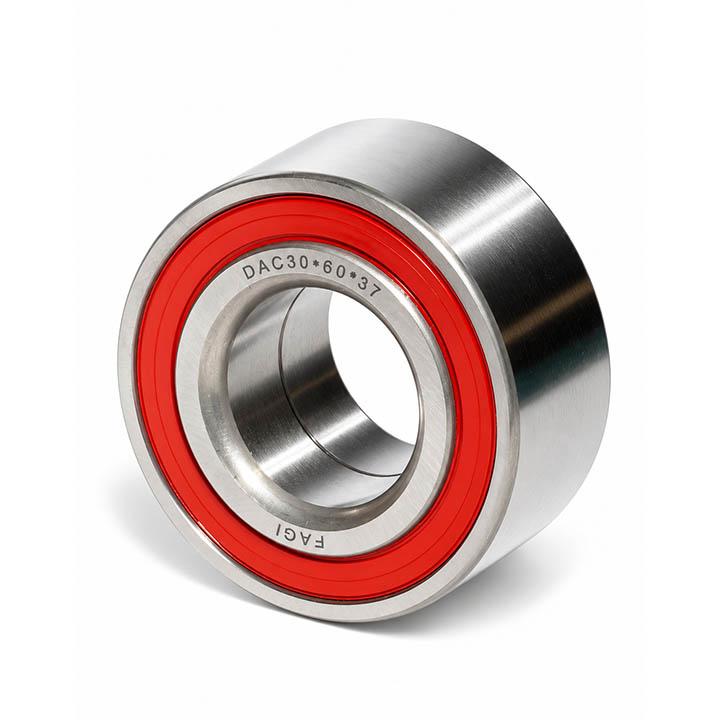

FAGI DAC 30-60-37 Angular Contact Ball Bearing
The DAC 30-60-37 bearing manufactured by FAGi represents one of the most critical and widely adopted Generation 1 (Gen-1) automotive wheel hub bearings. Engineered around a dedicated Double-Row Angular Contact Ball Bearing architecture with a split inner ring configuration, this design enables the assembly to sustain significant radial loads alongside intense bidirectional axial forces that occur during cornering, braking, and sudden directional transitions.
10022110074
Request a quote
Product Detail
Technical & Engineering Review: Wheel Hub Bearing DAC 30600037 (30x60x37) by FAGi High-Precision Double-Row Angular Contact Wheel Bearing (Generation 1 Hub Bearing)
Engineered for Passenger Vehicle Wheel Hubs, High-Stress Axles, and Heavy Combined Radial & Moment Loads
Overview: FAGi DAC 306037 Angular Contact Wheel Bearing
The DAC 30-60-37 bearing manufactured by FAGi represents one of the most critical and widely adopted Generation 1 (Gen-1) automotive wheel hub bearings. Engineered around a dedicated Double-Row Angular Contact Ball Bearing architecture with a split inner ring configuration, this design enables the assembly to sustain significant radial loads alongside intense bidirectional axial forces that occur during cornering, braking, and sudden directional transitions.
By combining ultra-clean, through-hardened 100Cr6 bearing steel, sub-micron superfinished raceways, and pre-packed premium EP (Extreme Pressure) automotive greases, FAGi delivers a maintenance-free, silent-running, and highly fatigue-resistant solution for automotive front and rear axles as well as demanding industrial rotating assemblies.
Engineering Anatomy & Designation Decoding: DAC 30600037
Stands for Double-row Angular Contact; specifies a two-row raceway layout configured with divergent contact angles to maximize moment rigidity.
Indicates standardized metric dimensions: 30 mm inner diameter (bore), 60 mm outer diameter, and 37 mm total assembled width.
Dual-lip steel-reinforced synthetic NBR rubber seals provide an impenetrable barrier against road spray, mud, brake dust, and wash water.
Precision glass-fiber reinforced polyamide (PA66-GF25) or pressed steel retainer guarantees quiet guidance and low friction torque under dynamic speed variation.
Technical Specifications & Dimensional Matrix: DAC 30-60-37 FAGi
| Technical Parameter | Standard Value | Engineering Notes & Reference Standards |
|---|---|---|
| Bore Diameter (d) | 30 mm | Precision interference fit tolerance on the axle stub shaft / hub spindle |
| Outer Diameter (D) | 60 mm | ISO P6 / ABEC-3 outer raceway tolerance for steering knuckle press fit |
| Total Width (B) | 37 mm | Extended double-row footprint for enhanced tilting moment stiffness |
| Ring & Ball Material | 100Cr6 (AISI 52100) | Uniform surface and core hardness of 60 to 64 HRC; fatigue-resistant |
| Sealing Architecture | Full Contact Dual Lip (2RS) | Maximizes lubricant retention while blocking external micro-contaminants |
| Lubrication Charge | Lithium Complex EP Grease | Wide operating range (-30°C to +150°C); rated for life-long sealed duty |
| Inner Ring Construction | Split Two-Piece Inner Ring | Internal clearance and optimum preload achieved through specified axle nut torque |
Engineering Advantages & Differentiating Quality of FAGi
1. Superior Tilting Moment Resistance
The optimized contact angle geometry of FAGi DAC bearings creates a wide, divergent load line envelope, ensuring rock-solid camber control and wheel stability during aggressive high-speed cornering.
2. Superfinished Raceways & Whine Elimination
High-precision honing produces an ultra-smooth raceway finish with roughness values ($Ra < 0.05\,\mu m$). This eliminates metal-to-metal asperities, reduces friction, and prevents high-frequency highway humming or howling noise.
3. Shear-Stable Automotive Grease Fill
Pre-charged with factory-metered, high-temperature EP grease designed to resist mechanical shear and oxidative degradation, completely removing the need for periodic relubrication or maintenance.
4. Impact & Pothole Shock Tolerance
Advanced metallurgical heat treatment ensures high surface fatigue strength while maintaining a tough core structure capable of absorbing harsh road impacts and potholes without catastrophic brittle fracture.
Primary Applications of DAC 30x60x37 FAGi
- Passenger Vehicle Wheel Hubs: Front and rear wheel hub assemblies across numerous compact sedans, hatchbacks, and crossover automotive platforms.
- Industrial Rotary Shafts & Pulleys: Heavy-duty industrial tensioners, conveyor guide pulleys, and drive shafts subject to simultaneous thrust and radial loads.
- Agricultural & Light Construction Equipment: Tiller wheels, disc harrow assemblies, and implement hubs operating in dusty, high-moisture environments.
- Precision Guide Roller Systems: Crane trolleys, heavy transport rollers, and transfer tables requiring rigid, compact zero-play bearings.
Critical Mounting & Installation Guidelines for DAC 306037
Over 70% of premature DAC wheel bearing failures and abnormal operating noises originate from improper press tooling, impact shocks (hammering), or incorrect drive axle nut torque.
- Press Only on the Outer Ring During Housing Insertion: When installing the bearing into the steering knuckle housing, press force must be applied strictly and evenly to the outer ring face. Never press against the inner ring during housing entry, as this transmits damaging loads through the balls, causing microscopic raceway brinelling.
- Support the Inner Ring During Hub Insertion: When pressing the wheel hub spindle into the bearing's inner bore, the press fixture must firmly support the inner ring face from underneath to prevent splitting or separating the two inner ring halves.
- Tighten Axle Nut to OEM Torque Specifications: The internal clearance and operating preload are established entirely by clamping the split inner rings together. Always use a calibrated torque wrench and follow factory tightening values; avoid uncontrolled pneumatic impact wrenches.
- Strictly Avoid Direct Hammer Strikes: Never use a hammer or drift pin directly against any bearing component. Shocks cause race distortion, seal lip destruction, and immediate cage dislocation.
Conclusion & Sourcing Assurance via Kamyar Gostar Iranian
The FAGi DAC 30-60-37 wheel hub bearing represents an optimal synthesis of double-row angular contact engineering, rugged sealing integrity, and resilient automotive metallurgy—delivering dependable ride smoothness, vehicle safety, and prolonged service intervals under demanding operating conditions.
Kamyar Gostar Iranian Co. (KGICO) guarantees 100% genuine supply chains, rigorous quality compliance, and complete technical documentation, giving fleet operators, industrial workshops, and automotive component distributors total peace of mind.
Request a Quote & Wholesale Ordering for DAC 306037 FAGi
Contact our engineering sales team for wholesale pricing, inventory verification, and technical support.
