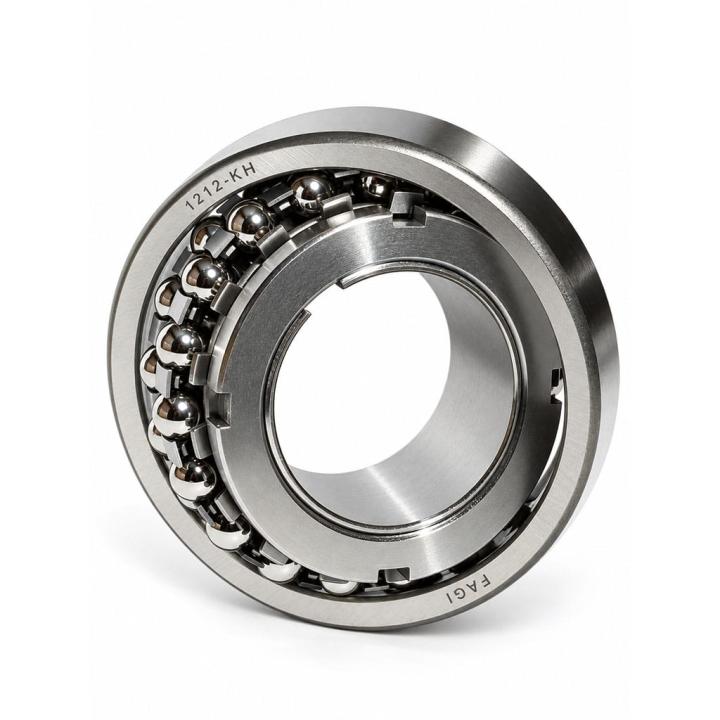

FAGI 1212 KH Self-Aligning Ball Bearing
The Master of Flexibility and Stability; When Your Machine Needs a Forgiving Champion
Why Do Standard Bearings Fail Under Shaft Misalignment?
In the real world of industrial machinery, things rarely stay in a perfectly straight line forever. Long rotating shafts, heavy vibrations, temperature swings, and minor frame deflections all cause shafts to bend or tilt slightly out of true alignment. If you install a standard, rigid deep groove ball bearing in this environment, that slight angular tilt acts like a silent destroyer. The rolling balls bind unevenly against the raceway edges, leading to extreme localized stress, overheated metal, destroyed cages, and sudden machine failure.
The solution is an ingenious piece of engineering: the FAGI 1212 KH Self-Aligning Ball Bearing. Rather than fighting shaft deflection, this bearing is designed to work with it. Operating much like a human ball-and-socket joint, its spherical outer raceway allows the inner ring, cage, and two rows of precision balls to swivel freely inside the outer ring. If your rotating shaft flexes or tilts by several degrees during operation, the bearing dynamically realigns itself—continuing to spin smoothly and quietly without putting damaging stress on your machine housing.
Engineered by FAGI to world-class tolerances, the 1212 KH is widely known across maintenance workshops as a "forgiving bearing." Whether powering an extended conveyor system, an industrial blower fan, or heavy agricultural equipment, this self-aligning component eliminates alignment headaches and keeps your production lines running uninterrupted.
Decoding Code 1212 KH: Plain-English Bearing Anatomy
Industrial designation codes can look intimidating at first glance, but every letter and digit tells an essential part of the story:
- Prefix "12" (Self-Aligning Family): Any bearing code starting with "12" belongs to the double-row self-aligning ball bearing series. Its double row of balls provides smooth load distribution and continuous self-correcting movement across a shared spherical outer raceway.
- Size Code "12" (The Last Two Digits): In standard metric bearing coding, multiply the last two digits by 5: 12 × 5 = 60 mm. This means the bearing is scaled for 60 mm nominal shaft diameters.
- Suffix "K" (Tapered Bore - The Critical Feature): Unlike standard cylindrical bore bearings that slide straight onto a shaft, the "K" indicates a tapered inner bore (1:12 taper ratio). It is designed to be mounted using a specialized Adapter Sleeve (such as an H212 sleeve). This tapered wedging mechanism creates a rock-solid, vibration-proof grip around the shaft that prevents fretting corrosion and slippage.
- Suffix "H": Signifies compatibility and matching optimization with standard metric adapter sleeve assemblies (H-series sleeves) for secure locking and simplified dismantling.
FAGI 1212 KH Technical Specifications & Dimensions
| Product Designation | Double-Row Self-Aligning Ball Bearing 1212 KH |
| Brand | FAGI (Authentic Original) |
| Nominal Bore Diameter (d) | 60 mm |
| Bore Profile | Tapered 1:12 (Requires Adapter Sleeve) |
| Outer Diameter (D) | 110 mm |
| Total Width (B) | 22 mm |
| Ball Row Configuration | Double-Row High-Grade Chrome Steel Balls |
| Material | Premium High-Carbon Chromium Steel (GCr15/100Cr6) |
Why Choose the FAGI 1212 KH Bearing?
While generic bearings look similar in pictures, the engineering distinction of FAGI becomes evident under continuous, tough industrial duty cycles:
- Automatic Misalignment Compensation: The 1212 KH accommodates angular misalignments of up to 2.5 to 3 degrees without increasing internal friction or running temperature. When shafts bend under heavy operational loads, this bearing eliminates destructive edge loading completely.
- Ultra-Secure Adapter Sleeve Mounting: The tapered bore (K) design combined with an adapter sleeve enables rapid, ultra-firm mounting on commercial smooth or stepped shafts without requiring expensive shaft machining or shoulder cuts.
- Extremely Low Friction & Cool Operation: Self-aligning ball bearings generate the lowest running friction of any rolling bearing design. This keeps heat generation minimal, allows high rotational speeds, and extends lubrication life considerably.
- Exceptional Vibration & Shock Resistance: The dual rows of balls distribute radial loads evenly over a broad spherical raceway area, preventing premature metal fatigue in machines prone to dynamic shaking and cyclic stress.
Where Does the FAGI 1212 KH Excel?
This 60 mm self-aligning bearing is the premier problem-solver across applications where shaft flexing or housing alignment is challenging:
- Long Belt Conveyors & Material Handling: Conveyor head and tail pulleys where long spans naturally cause central shaft sagging under weight.
- Industrial Blower Fans & Ventilation Systems: High-speed fans mounted on flexible steel structures where subtle frame twisting occurs during startup and operation.
- Woodworking & Textile Machinery: High-speed spindle drives and spinning frames that require silky-smooth running with zero internal binding.
- Agricultural Harvesters & Threshers: Rugged farm machinery operating on rough terrain where continuous chassis twisting is common.
Practical Installation Guide: Adapter Sleeve Best Practices
Because the 1212 KH features a tapered bore (K), proper installation requires a few fundamental mechanical techniques:
1. Always Use the Matching Adapter Sleeve: Never try to press-fit a tapered bore bearing directly onto a cylindrical shaft. Slide the matching adapter sleeve (typically H212) onto the shaft, position the bearing over the taper, and thread on the lock nut with its lock washer.
2. Avoid Over-Tightening (Watch Internal Clearance): As you tighten the lock nut, the bearing inner ring is driven up the tapered sleeve, expanding outward and reducing the internal clearance between the balls and raceways. Do not over-tighten! The bearing must rotate freely by hand and swivel smoothly. If over-tightened, the balls will be crushed under excessive internal preloading.
3. Proper Initial Grease Packing: Since the 1212 KH is an open-type bearing, thoroughly hand-pack high-quality lithium-complex or EP grease between the two rows of balls and into the cage pockets prior to machine commissioning.
4. Keep the Workspace Clean: Because rolling elements are exposed during assembly, ensure that no sand, grit, or metal shavings land in the raceways. Always unwrap the bearing only when ready to mount.
Frequently Asked Questions (FAQ)
Can I replace a standard cylindrical 1212 bearing with a 1212 K bearing directly?
Not directly without an adapter sleeve. The standard 1212 has a straight cylindrical bore (which presses directly onto a 60 mm shaft), while the 1212 K has a tapered bore designed specifically to clamp down via a sleeve assembly.
Why choose a self-aligning ball bearing over a deep groove ball bearing?
Deep groove ball bearings can tolerate very little angular misalignment (typically less than a few minutes of arc). If your shaft deflects or bearings are housed in separate frames, a self-aligning bearing swivels freely, avoiding premature destruction.
How do I order the matching adapter sleeve from KGICO?
KGICO supplies complete mounting sets, including compatible genuine H-series adapter sleeves, lock nuts, and MB lock washers alongside your FAGI 1212 KH bearing orders.
Bring Flexibility and Unmatched Reliability to Your Drivetrain
The FAGI 1212 KH Self-Aligning Ball Bearing is the professional choice for equipment operating under vibration and shaft deflection. Contact KGICO for genuine stock, competitive pricing, and fast nationwide delivery.
