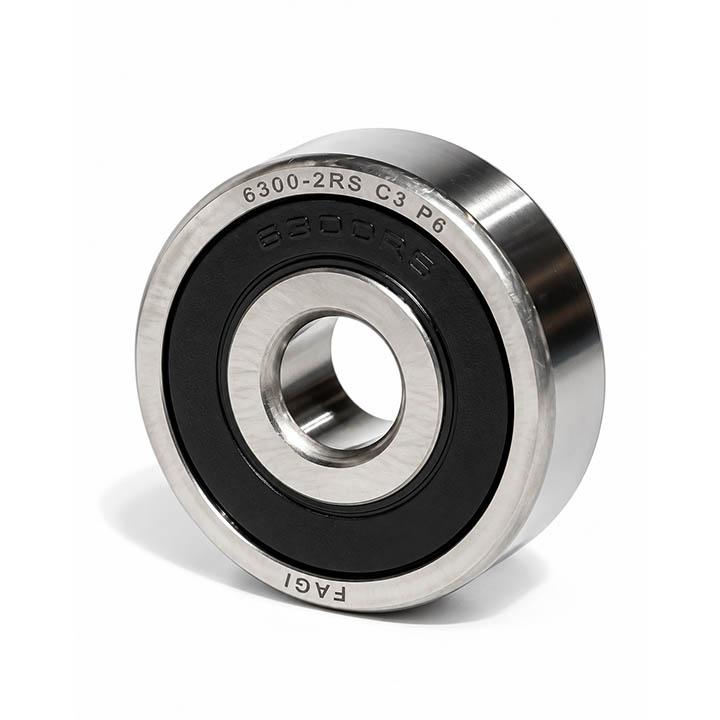

FAGI 6300 2RS C3 P6 Deep Groove Ball Bearing
The FAGI 6300 2RS C3 P6 deep groove ball bearing is a high-performance industrial component designed for 10mm shafts. With an outside diameter of 35mm and a width of 11mm, it belongs to the Series 63 (Heavy Duty) lineup, featuring larger rolling elements and thicker raceways than standard 60 or 62 series bearings, allowing for significantly higher radial load capacity.
10022110030
Request a quote
Product Detail
FAGI 6300 2RS C3 P6 Heavy-Duty Deep Groove Ball Bearing High Precision (P6/ABEC-3) | C3 Thermal Clearance | 2RS Contact Seals | 10mm Bore
Engineered for high-speed industrial electric motors, high-pressure pumps, precision power tools, and rotating equipment requiring thermal stability and robust environmental protection.
Technical Overview: FAGI 6300 2RS C3 P6
The FAGI 6300 2RS C3 P6 deep groove ball bearing is a high-performance industrial component designed for 10mm shafts. With an outside diameter of 35mm and a width of 11mm, it belongs to the Series 63 (Heavy Duty) lineup, featuring larger rolling elements and thicker raceways than standard 60 or 62 series bearings, allowing for significantly higher radial load capacity.
This bearing excels in demanding environments due to its P6 precision class (reducing operational vibration) and C3 radial clearance (accommodating thermal expansion). The dual-sided 2RS nitrile rubber contact seals ensure total isolation from dust and moisture, making it an ideal choice for maintenance-free reliability in critical machinery.
Technical Breakdown (6300 2RS C3 P6)
6: Family identifier for standard single-row deep groove ball bearings.
3: Dimension Series 3 (Heavy Duty); features reinforced rings and larger balls for enhanced radial load handling.
00: Bore code; 00 indicates a 10mm shaft diameter.
2RS: Equipped with two reinforced NBR contact seals for maximum environmental protection.
C3: Greater than normal radial internal clearance; compensates for shaft expansion during high-speed, high-heat operation.
P6: High precision tolerance class (ISO 492 / ABEC-3); provides superior raceway finish and minimal runout, critical for reducing noise and vibration.
Engineering Specifications Table
| Bore (d) | OD (D) | Width (B) | Tolerance | Clearance | Seal Type | Brand |
|---|---|---|---|---|---|---|
| 10 mm | 35 mm | 11 mm | P6 | C3 | 2RS | FAGI |
Key Advantages
P6 Precision Tolerance
Precision-ground raceways minimize radial runout, eliminating harmonic vibration in high-speed machinery.
C3 Thermal Stability
Optimizes internal clearances to prevent binding and seizure caused by shaft expansion during high-heat operation.
Superior 2RS Sealing
Contact seals provide robust protection against moisture, coolants, and fine particulate matter in industrial settings.
100Cr6 Bearing Steel
High-purity steel heat-treated to 60-62 HRC for exceptional fatigue resistance and surface wear durability.
Factory-Lubricated
Maintenance-free operation using high-shear-stability industrial grease, sealed for life.
Heavy Series Capacity
Series 63 configuration provides larger rolling elements, delivering superior shock-load handling compared to 60/62 series.
Primary Applications
- Compact Electric Motors: Essential for stator/rotor assemblies requiring thermal compensation.
- Centrifugal & Dosing Pumps: Reliant on 2RS seals for leak-proof performance and P6 precision.
- Industrial Power Tools: Drills, grinders, and routers needing high-vibration resistance.
- Automation & Conveyors: Reliable, maintenance-free rotation for long-term production cycles.
- Generators & Test Equipment: Smooth, quiet operation with high axial stability.
Installation Protocols & Warnings
When pressing the bearing onto the shaft, force must only be applied to the inner ring. Never apply installation force through the outer ring or the seals; doing so transfers damaging stress directly to the rolling elements, causing premature raceway failure.
Avoid striking the bearing with steel hammers. Never soak 2RS-sealed bearings in solvents; solvents degrade factory grease and destroy the NBR seal material.
Installation Best Practice
Use an induction heater (max 110°C) or a mechanical sleeve press to apply force evenly to the inner ring, ensuring a stress-free fit.
Frequently Asked Questions (FAQ)
1. What are the exact dimensions of the 6300?
The bore is 10mm, outer diameter is 35mm, and width is 11mm.
2. Why choose 6300 over 6000 or 6200?
While all share a 10mm bore, the 6300 has a larger OD and width, offering significantly higher load capacity and impact resistance than the smaller 6000 and 6200 models.
3. Is C3 clearance always necessary?
C3 is crucial for high-speed or high-temperature applications to ensure internal space remains sufficient even when the shaft expands during operation.
Order FAGI 6300 2RS C3 P6
For stock availability, bulk pricing, or technical support, contact the Kamyar Gostar Iranian sales engineering team.
