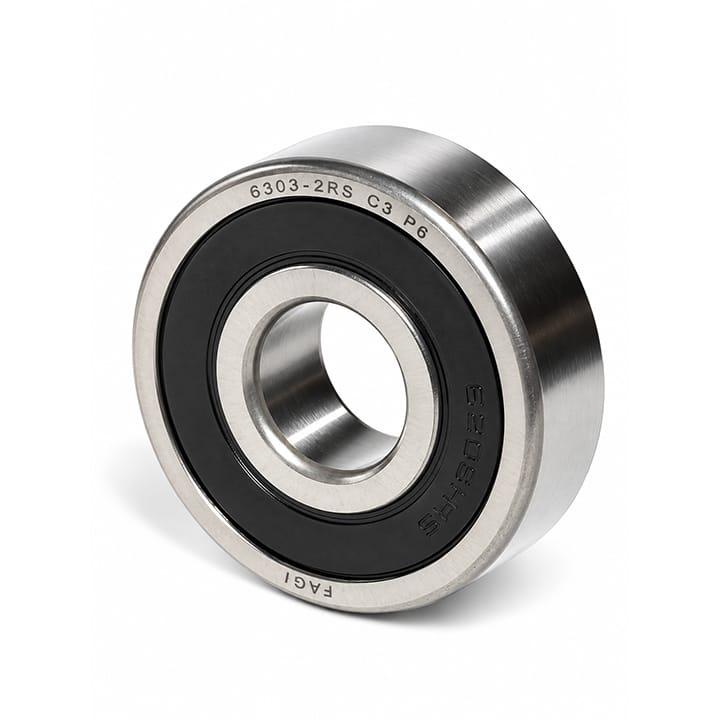

FAGI 6303 2RS C3 P6 deep groove ball bearing
The FAGI 6303 2RS C3 P6 deep groove ball bearing is a widely used model for equipment that needs a compact yet sturdy bearing. Its practical design makes it suitable for a range of applications, and it can be a useful option for both maintenance work and industrial equipment. One of its key features is the rubber seal on each side (2RS), which helps protect the bearing from dust and moisture better than an open bearing.
10022110033
Request a quote
Product Detail
Deep Groove Ball Bearing 6303 2RS C3 P6 by FAGI Smooth rotation, two-sided sealing, clearance for heat, and higher manufacturing precision
A practical choice for electric motors, pumps, fans, and equipment that needs smooth rotation and better protection from dust and moisture.
Introducing the FAGI 6303 2RS C3 P6 Deep Groove Ball Bearing
Many machines have a shaft or metal axle that rotates continuously—from small motors to water pumps, fans, packaging machines, and workshop equipment. Without the right bearing, friction can increase, noise may become louder, components can heat up, and the machine may eventually develop problems. A bearing supports smooth, steady rotation and helps reduce friction and wear between moving parts.
The FAGI 6303 2RS C3 P6 deep groove ball bearing is a widely used model for equipment that needs a compact yet sturdy bearing. Its practical design makes it suitable for a range of applications, and it can be a useful option for both maintenance work and industrial equipment. One of its key features is the rubber seal on each side (2RS), which helps protect the bearing from dust and moisture better than an open bearing.
The C3 designation indicates greater internal clearance than the Normal class. This additional clearance may be useful when operating conditions cause the bearing to heat up and the shaft or bearing components to expand. The P6 designation identifies a higher precision class. It may help support smoother operation, but the result also depends on correct installation, shaft and housing condition, and the balance of the equipment. No bearing is completely silent or the best choice for every application; selection should take the equipment, speed, temperature, and manufacturer’s recommendations into account.
What Does the Code 6303 2RS C3 P6 Mean?
The code printed on a bearing is more than just a product name. It identifies key details about the bearing:
- 63: Identifies the bearing series. In general, the 63 series has a sturdier design than lighter series and is used in a range of more demanding applications.
- 03: Indicates the bore-size code. For this code, 03 is multiplied by 5 (03 × 5 = 15), giving a bore diameter of 15 mm. It is designed to fit a 15 mm shaft.
- 2RS: Means the bearing has rubber seals on both sides. These seals help limit the entry of dust and small particles and help retain the grease inside. However, 2RS does not mean the bearing is completely waterproof. Submersion or pressurized water can allow moisture to enter over time.
- C3: Indicates greater-than-Normal internal clearance. This can be useful in applications where operating heat causes components to expand, but it is not required for every machine.
- P6: Indicates a higher precision class. It is intended to provide tighter manufacturing tolerances; actual vibration and noise levels also depend on installation and the condition of the surrounding components.
Standard Dimensions of the 6303 Bearing
Correct sizing is essential when choosing a replacement. The commonly specified standard dimensions for a 6303 bearing are:
- Bore diameter (inside diameter): 15 mm
- Outside diameter: 47 mm
- Width: 14 mm
Note: The commonly specified standard dimensions are 15 × 47 × 14 mm. Before purchasing, check the marking on the existing bearing or measure it with suitable equipment.
Benefits of the FAGI 6303 2RS C3 P6 Bearing
This model is selected for various repair and production applications because it combines 2RS seals, C3 clearance, and P6 precision. Here are some of its practical features:
Better protection in dusty environments
The rubber seals on both sides help limit the entry of dust and small particles—an important feature in workshops and industrial settings.
Higher precision class
P6 refers to a higher precision class than standard classes. The effect on overall vibration and noise depends on the machine and how the bearing is installed.
Clearance for suitable operating conditions
C3 provides greater internal clearance than Normal. It may suit applications where operating heat and expansion need to be considered.
Helps retain the factory grease
The two seals help keep the factory grease cleaner during use and limit the need for routine relubrication in many applications.
A practical option for maintenance
The 6303 is a common bearing size, making it a practical option for many replacement and maintenance jobs.
Standard size for a range of equipment
Its standard dimensions make the bearing suitable for equipment designed to use a 6303, subject to the machine’s specifications.
Why Choose FAGI for a 6303 Bearing?
When choosing a bearing, the code is not the only consideration; manufacturing quality and product authenticity matter too. Bearings with the same code can differ in consistency and performance. FAGI is a brand that buyers may consider when looking for a clearly marked product from a reliable supplier.
As with any bearing, service life and operating performance depend on using the correct specification, proper installation, suitable operating conditions, and a compatible shaft and housing.
Common Applications for the 6303 2RS C3 P6 Bearing
With a 15 mm bore, this bearing may be used in a range of equipment designed for the 6303 size. Common examples include:
- Small and medium electric motors: motors used in workshop equipment, packaging machines, and light industrial systems.
- Water pumps and circulation pumps: domestic and light industrial pumps, where the bearing may be exposed to ambient moisture.
- Fans and ventilation equipment: workshop ventilation, industrial coolers, and duct fans.
- Agricultural machinery: selected rotating components that may operate in dusty conditions.
- General-purpose equipment: machinery designed for a 15 mm shaft and the 6303 bearing dimensions.
A Simple Guide to Buying the Right Bearing
Keep these points in mind to help choose a bearing that matches your equipment:
- Check the bearing code: If the existing bearing is marked 6303, use the same size unless the equipment manufacturer specifies a different replacement.
- Consider 2RS for dusty or damp surroundings: The seals help limit contamination, but they do not make the bearing suitable for immersion or high-pressure water.
- C3 is not always the better option: C3 may be suitable when operating conditions call for greater internal clearance, such as in certain warmer or higher-speed applications. Follow the equipment manufacturer’s recommendations if available.
- Check whether P6 is required: If the equipment calls for a higher precision class, make sure the replacement matches that requirement.
- Buy from a reliable supplier: Check the packaging and product markings, and choose a supplier who can confirm the product and its specifications.
Proper Installation to Help Prevent Early Failure
A bearing can fail early because of incorrect installation, even when the bearing itself is in good condition. Keep the following points in mind when fitting a 6303:
1) Clean the parts before installation
Clean the shaft and bearing seat. Dust, dirt, or small burrs can prevent the bearing from fitting correctly.
2) Avoid direct hammer blows
Do not strike the bearing directly with a hammer. Use a suitable installation tool and controlled force to avoid damaging its internal parts.
3) Apply force to the correct ring
When fitting the bearing onto a shaft, apply force to the inner ring. When fitting it into a housing, apply force to the outer ring. This helps prevent installation force from passing through the rolling elements.
4) Do not tamper with the seals
Do not remove the 2RS seals or add unverified grease. Doing so can damage the seals or introduce grease that may not be compatible with the factory lubricant.
Simple Maintenance Tips for Your Bearing
A sealed 2RS bearing typically does not need daily attention, but a few simple practices can help protect it during service:
- Avoid direct high-pressure water: Pressure washing or spraying water directly at the bearing can compromise the seals over time.
- Do not overtighten belts: Excessive belt tension can place additional load on the shaft and bearing.
- Listen for unusual sounds: A new or changing noise can be an early indication that the bearing or another machine component needs inspection.
- Store spare bearings in a dry place: Keep them in their original packaging and protect them from moisture and contamination.
Signs of 6303 Bearing Failure
If you notice any of the following symptoms, inspect the bearing and surrounding components. Replacing a damaged bearing promptly may help prevent further equipment damage:
- A new whining, grinding, or rubbing sound during operation.
- Higher-than-usual temperature near the bearing location.
- More vibration than usual, particularly at higher speeds.
- A shaft that feels stiff or catches at certain points when turned.
- Dark grease leakage or a burning smell near the bearing area.
Frequently Asked Questions About the FAGI 6303 2RS C3 P6
1) What are the standard dimensions of a 6303 bearing?
The commonly specified dimensions are 15 mm bore, 47 mm outside diameter, and 14 mm width.
2) Does 2RS mean the bearing is waterproof?
No. The seals help limit the entry of moisture and contaminants, but the bearing is not designed for immersion or direct high-pressure water exposure.
3) Is C3 always the better choice?
Not necessarily. C3 may suit applications where operating conditions require greater internal clearance. Check the equipment manufacturer’s specification before choosing it.
4) What does P6 mean?
P6 is a higher precision class than standard classes. Its practical effect depends on the bearing, the equipment, and the quality of installation.
5) What could cause a new bearing to make noise?
Possible causes include incorrect or uneven installation, force applied to the wrong ring, a damaged shaft, misalignment, or excessive belt tension. Inspect the installation and related components.
6) How can I buy the right replacement bearing?
Check the code on the existing bearing, verify the dimensions and required specifications, and purchase from a reliable supplier.
Conclusion: Is the FAGI 6303 2RS C3 P6 Right for Your Application?
If your equipment requires a standard-size bearing with a 15 mm bore and you need better protection from dust and ambient moisture, the FAGI 6303 2RS C3 P6 deep groove ball bearing may be a suitable option. Its rubber seals help protect the internal grease and limit contamination. The C3 clearance and P6 precision class should be selected according to the equipment’s requirements rather than assumed to be right for every application.
Ultimately, bearing performance depends on more than the brand and code. Correct selection, proper installation, suitable operating conditions, and compatible shaft and housing dimensions all matter. When these requirements are met, the 6303 2RS C3 P6 can be a practical choice for a range of general and industrial applications.
