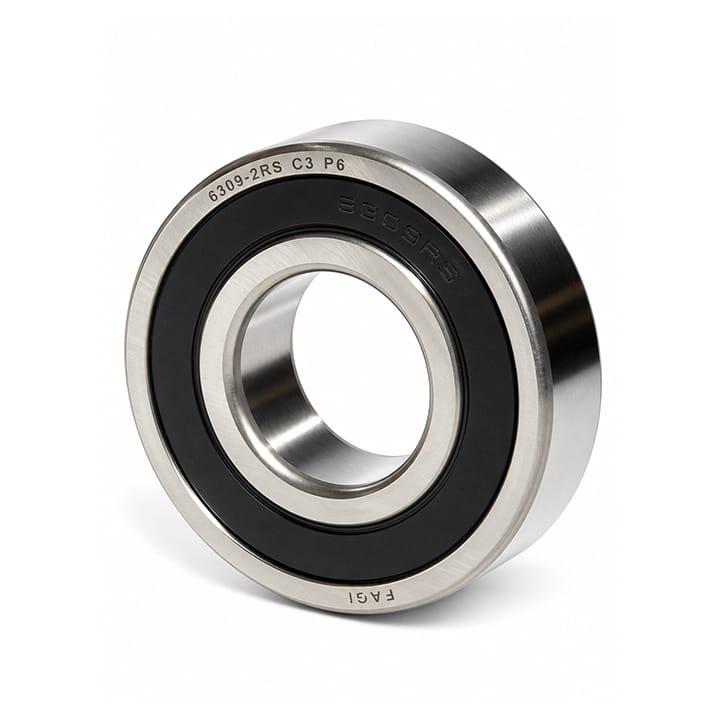

FAGI 6309 2RS C3 P6 Deep Groove Ball Bearing
The FAGI 6309 2RS C3 P6 is a smart choice for those who value efficiency and want to avoid frequent downtime. The "63" series indicates a thicker, more robust design compared to lighter series, allowing it to handle higher loads and stresses. Combined with the 2RS (rubber seal), C3 (thermal clearance), and P6 (high-precision) ratings, this model outperforms standard alternatives in electric motors and heavy gearboxes.
10022110039
Request a quote
Product Detail
FAGI Deep Groove Ball Bearing 6309 2RS C3 P6 Unmatched Reliability, Superior Sealing, and Seamless Operation for 45mm Shafts
The ideal choice for heavy-duty rotating equipment, high-pressure pumps, large electric motors, and industrial machinery.
Why is the 6309 the Backbone of Industrial Equipment?
Imagine running a large factory where machines must operate continuously for hours, handling heavy loads and enduring constant vibrations. The component responsible for carrying this load and allowing the central shaft to spin smoothly is the ball bearing. When we talk about the 6309, we are entering the world of heavy-series bearings designed for endurance, not just standard applications.
The FAGI 6309 2RS C3 P6 is a smart choice for those who value efficiency and want to avoid frequent downtime. The "63" series indicates a thicker, more robust design compared to lighter series, allowing it to handle higher loads and stresses. Combined with the 2RS (rubber seal), C3 (thermal clearance), and P6 (high-precision) ratings, this model outperforms standard alternatives in electric motors and heavy gearboxes.
Technical Decoding: Understanding the Specs
- 6: Indicates a Deep Groove Ball Bearing, the most versatile type capable of handling both radial and axial loads.
- 3: Represents the series. The "63" series is more robust than "60" or "62," featuring larger balls for greater impact resistance.
- 09: Determines the bore size. For codes above 03, we multiply by 5. 09 × 5 = 45mm inner diameter.
- 2RS: Dual-sided reinforced rubber seals. These prevent lubricant leakage and keep dust and contaminants out.
- C3: Higher internal clearance. This accounts for thermal expansion, preventing the bearing from locking up during high-heat operation.
- P6: Superior manufacturing precision. Tight tolerances lead to less vibration and smoother rotation at high speeds.
Geometric Dimensions
- Inner Diameter (Bore): 45 mm
- Outer Diameter: 100 mm
- Width (Thickness): 25 mm
Why Choose FAGI 6309 2RS C3 P6?
Endurance
The 63 series is engineered for relentless, continuous industrial operation.
Contamination Shield
2RS seals protect internal components from the harshest industrial dust.
Thermal Stability
C3 clearance ensures smooth movement even when temperatures spike.
Precision
P6 tolerance reduces noise and extends the service life of connected components.
Best Practices for Installation
1. Absolute Cleanliness
Clean the shaft and housing thoroughly before installation.
2. Apply Pressure Correctly
When pressing onto a shaft, apply force to the inner ring. When inserting into a housing, apply force to the outer ring.
3. Avoid Direct Impact
Never strike the bearing directly with a steel hammer, as this damages the races and seals.
Frequently Asked Questions (FAQ)
1) Is 6309 interchangeable with 6209?
No. While the bore is 45mm for both, the outer diameter of 6309 is 100mm, whereas 6209 is 85mm.
2) Are 2RS seals waterproof?
2RS seals are excellent for dust and intermittent splashing, but they are not designed for full submersion or high-pressure water jets.
3) Do I need to grease the bearing?
FAGI bearings arrive pre-lubricated with high-performance grease. In normal conditions, no re-lubrication is required for the bearing's service life.
Order 6309 2RS C3 P6
For technical support, shaft compatibility advice, or to check stock availability with a guarantee of authenticity, contact us at KGICO.
