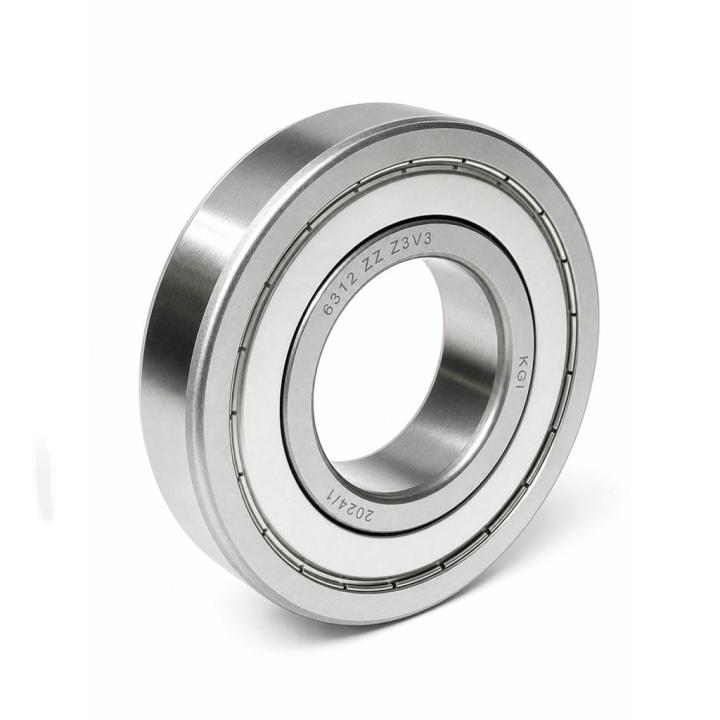

KGI 6312 ZZ Z3V3 Deep Groove Ball Bearing
The KGI 6312 ZZ Z3V3 Deep Groove Ball Bearing is one of the most reliable and robust bearings in the Series 3 lineup for 60mm shafts. With an outer diameter of 130mm and a width of 31mm, it combines high radial and axial load capacity with superior dynamic balance. The standout feature of this model is its Z3V3 vibration and noise grade. This strict standard indicates ultra-high precision manufacturing, including superfinished raceways and optimized ball sphericity, ensuring minimal vibration and noise at high rotational speeds. Furthermore, the ZZ double metal shield design eliminates contact friction, allowing for the highest limiting speeds without overheating.
10020013178
Request a quote
Product Detail
Heavy-Duty Deep Groove Ball Bearing KGI 6312 ZZ Z3V3 Ultra-Low Noise & Vibration Grade (Z3V3) | Double Metal Shield (ZZ) | 60mm Bore
Engineered for high-speed electric motors, industrial pumps, turbo-generators, and precision rotating equipment requiring minimum friction and maximum durability.
Introduction to KGI 6312 ZZ Z3V3
The KGI 6312 ZZ Z3V3 Deep Groove Ball Bearing is one of the most reliable and robust bearings in the Series 3 lineup for 60mm shafts. With an outer diameter of 130mm and a width of 31mm, it combines high radial and axial load capacity with superior dynamic balance.
The standout feature of this model is its Z3V3 vibration and noise grade. This strict standard indicates ultra-high precision manufacturing, including superfinished raceways and optimized ball sphericity, ensuring minimal vibration and noise at high rotational speeds. Furthermore, the ZZ double metal shield design eliminates contact friction, allowing for the highest limiting speeds without overheating.
Technical Code Breakdown (6312 ZZ Z3V3)
6: Single-row deep groove ball bearing.
3: Heavy series; features thicker rings and larger balls for enhanced load-carrying capacity compared to series 60 and 62.
12: Bore code; 12 multiplied by 5 equals the 60mm shaft diameter.
ZZ (or 2Z): Equipped with two non-contact metal shields that prevent larger contaminants from entering while maintaining zero frictional torque and maximum speed.
Z3V3: Highest vibration and noise grade (Z3: Min. vibration acceleration | V3: Min. velocity/noise); ideal for ultra-quiet electromechanical applications.
Technical Specifications & Dimensions
| Bore (d) | OD (D) | Width (B) | Seal Type | Vibration Grade | Lubrication | Brand |
|---|---|---|---|---|---|---|
| 60 mm | 130 mm | 31 mm | ZZ (Metal Shield) | Z3V3 (Silent) | High-Speed Grease | KGI |
Key Advantages of KGI 6312 ZZ Z3V3
Silent & Vibration-Free (Z3V3)
Designed with tight tolerances to eliminate harmonic motor vibrations, protecting the shaft from premature wear.
High-Speed Performance
Non-contact ZZ shields ensure zero friction on the inner ring, preventing heat buildup and enabling higher rotational limits.
Radial Load Capacity
The robust Series 63 structure with a 130mm OD offers exceptional stability against mechanical shocks and stresses.
Maintenance-Free Lubrication
Factory-filled with premium thermally stable grease, eliminating the need for re-lubrication throughout its service life.
Hardened 100Cr6 Alloy Steel
High-purity material with 58-62 HRC hardness to resist metal fatigue and raceway spalling.
Thermal Stability
Unlike rubber seals, ZZ metal shields do not deform under high operating temperatures, maintaining protective integrity.
Key Applications
- Industrial Electric Motors: Mid-to-large frame three-phase motors requiring low noise and heat dissipation.
- Centrifugal Pumps, Vacuum & Booster Pumps: 60mm shafts where zero-vibration performance is critical.
- Screw Compressors: High-speed industrial equipment with continuous thermal cycles.
- Industrial Gearboxes & Reducers: Input and intermediate shafts handling heavy radial loads.
- Generators & Heavy-Duty Ventilation Fans: Reducing housing resonance and maintaining axial balance.
Technical Comparison: ZZ (Metal) vs. 2RS (Rubber)
Choosing the correct seal for the 6312 depends on your operating environment:
- 6312 ZZ (Metal Shield): Non-contact seal; ideal for high speeds, higher heat resistance, and zero rotational friction.
- 6312 2RS (Rubber Seal): Contact seal; suitable for dusty environments, direct water splash, and moderate rotational speeds.
- Engineering Conclusion: For high-speed motors or clean indoor environments, KGI 6312 ZZ Z3V3 is the ideal choice to maximize efficiency and eliminate contact heat.
Installation & Maintenance Tips
1) Use Induction Heaters or Hydraulic Presses
For a 60mm bore, direct hammer strikes can cause "brinelling" (dents) on the raceways, destroying the Z3V3 silent performance. Use an induction heater (max 110°C) or press on the inner ring only.
2) Protect the ZZ Metal Shields
Never apply pressure to the metal shields during installation. Shield deformation will cause interference with the inner cage and premature bearing failure.
3) Check Alignment
Shaft and housing misalignment induces edge stress on the balls, leading to increased noise and reduced bearing life.
Frequently Asked Questions (FAQ)
1) What are the dimensions of the KGI 6312 ZZ?
It has a 60mm bore, 130mm outer diameter, and 31mm width.
2) What is the benefit of the Z3V3 standard?
Z3V3 represents the highest level of vibration and noise control, ensuring smooth, silent operation and extending the life of sensitive electric motors.
3) Difference between 6312 and 6212?
Both have a 60mm bore, but the 6312 (130mm OD, 31mm width) features larger balls and a significantly higher load capacity than the 6212 (110mm OD, 22mm width).
4) Does this bearing need pre-lubrication?
No; the KGI 6312 ZZ is factory-filled with premium industrial grease and permanently sealed with metal shields.
Conclusion
The heavy-duty KGI 6312 ZZ Z3V3, with its Z3V3 ultra-silent grade, reliable ZZ metal shields, and series-3 load capacity, is the premier choice for electric motors, pumps, and 60mm-shaft rotating equipment seeking efficiency, minimal vibration, and continuous operation.
