FAGI 6316 2RS C3 Deep Groove Ball Bearing
As a classic deep groove ball bearing, this unit is engineered to manage substantial radial loads while accommodating axial thrust from both directions. When looking for a solution designed for fit-and-forget reliability across years of demanding service, this model represents an industry-proven benchmark.
10022110046
Request a quote
Product Detail

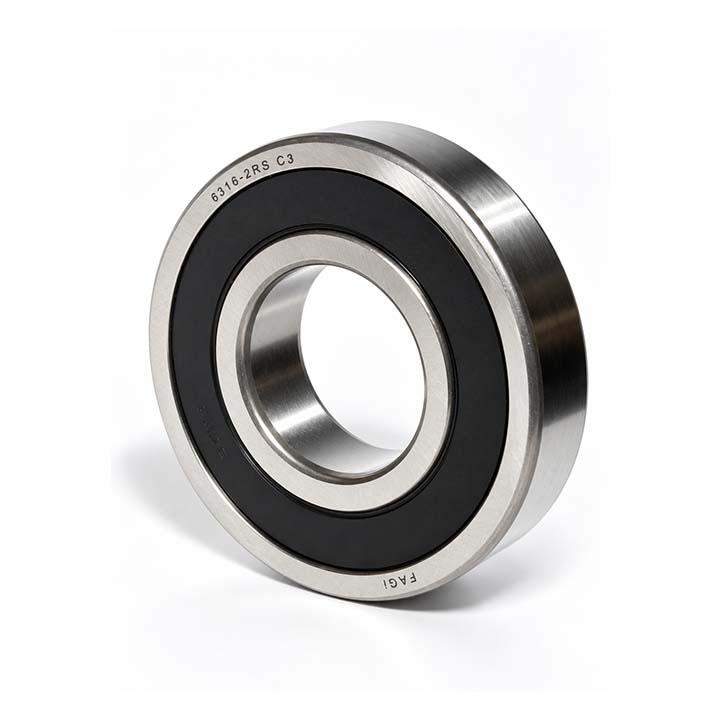

FAGI 6316 2RS C3 Deep Groove Ball Bearing
Endurance in Motion: A Dependable Choice for Heavy Loads and Demanding Environments
Why a Standard Bearing Falls Short in Demanding Machinery
Have you ever considered what enables industrial equipment to rotate tens of thousands of times each day without interruption? The foundation is the bearing. Yet under heavy duty cycles, high mechanical stresses, and severe workplace contaminants, standard-grade components degrade rapidly. This is precisely where the FAGI 6316 2RS C3 steps forward.
As a classic deep groove ball bearing, this unit is engineered to manage substantial radial loads while accommodating axial thrust from both directions. When looking for a solution designed for fit-and-forget reliability across years of demanding service, this model represents an industry-proven benchmark.
Key Technical Advantages of FAGI 6316 2RS C3
Unplanned downtime remains the single most expensive occurrence on any production line. The FAGI 6316 is built to minimize failure risks through deliberate engineering details:
- Dual Rubber Contact Seals (2RS): Precision-molded synthetic rubber seals on both faces safeguard internal raceways from dust, grit, and moisture while preventing lubricant washout.
- Internal Radial Clearance (C3): Metals expand under elevated operating temperatures. The C3 radial internal clearance accommodates thermal growth, preventing binding, thermal lockup, or premature surface fatigue during prolonged runs.
- High-Purity Bearing Alloy: Specially treated, high-carbon chromium steel provides structural rigidity, high fatigue limits, and microstructural resistance against shock loads.
Acoustic Signature: Listening to Equipment Health
A degrading bearing communicates through vibration and acoustic harshness. Elevated noise is often the first indicator of impending breakdown. With tightly controlled raceway geometry and balanced cage engineering, the FAGI 6316 runs whisper-quiet, reducing parasitic friction, saving energy, and extending continuous operating life.
Technical Specifications
Installation Best Practices for Maximum Service Life
Even premium industrial bearings fail prematurely when improperly handled. To unlock the full operational lifespan of this FAGI bearing, follow these three core procedures:
Meticulous Cleanliness: Thoroughly inspect and clean the shaft seat and housing bore before mounting. Even sub-millimeter particles caught inside during fitment can initiate raceway spalling within days.
Correct Press Tools: Never apply direct impact forces with regular hammers. Impact causes microscopic raceway brinelling that escalates into severe flaking. Use specialized induction heaters or mechanical/hydraulic press sleeves that seat the press-fit ring directly.
Factory Pre-Lubrication: This 2RS model arrives factory-filled with premium long-life grease. Do not remove or puncture the rubber seal lips; doing so compromises integrity and allows contamination ingress.
Frequently Asked Questions
Is C3 clearance considered excessive play?
Not at all. C3 radial clearance is deliberately designed for industrial units operating at high rotational speeds or sustained thermal loads. As shaft and housing temperatures rise, the differential expansion absorbs this extra space, yielding optimal operational running clearance.
Is this bearing suitable for humid or outdoor settings?
Yes. The dual rubber contact seals (2RS) provide comprehensive barrier protection against ambient moisture, spray, and airborne dust particles.
Why specify FAGI bearings?
FAGI targets consistency in metallurgical quality, dimensional tolerances, and sealing performance, offering maintenance managers a strong balance of high operational uptime and procurement efficiency.
An Investment in Operational Certainty
Selecting a bearing is more than replacing a worn piece of steel—it is an investment in machine reliability. Installing the FAGI 6316 2RS C3 protects your drivetrain against unbudgeted disruptions, allowing operations teams to focus on continuous production. At KGICO, our priority is providing verified, industry-grade mechanical solutions tailored to your operational demands.
Ready to Optimize Your Machine Reliability?
Add the FAGI 6316 2RS C3 bearing to your procurement list today and secure long-term rotating asset performance.
Consult & Order Directly from KGICO
