DKFL 51205 DDC Thrust Ball Bearing
A Solid Foundation Against Heavy Axial Loads; Smooth, Durable Rotation Engineered by DKFL
Why Do Some Components Crush Under Weight While Others Spin Like Clockwork?
Imagine standing on a metal plate, with your full body weight pressing down, and trying to spin around. Without anything to facilitate the movement, the direct metal-on-metal contact would create immense friction, an unbearable grinding noise, rapid wear, and eventually, the plate would seize completely. Now, what if we placed a ring of precisely machined, hardened steel balls between these two plates? All your weight would transfer to these balls, allowing you to spin effortlessly with the slightest push. This simple concept is the foundation of the "thrust ball bearing."
In the real world of workshops and factories, the forces acting on shafts are far more severe than a person's weight. When a drill press plunges its bit into thick steel, when hydraulic or screw jacks lift multi-ton vehicles, or when industrial rotary tables position heavy molds, thousands of kilograms of force are applied directly downward along the axis of rotation. Standard bearings, like those in car wheels or cooling fans, are not designed for this direct axial pounding; they would shatter almost instantly.

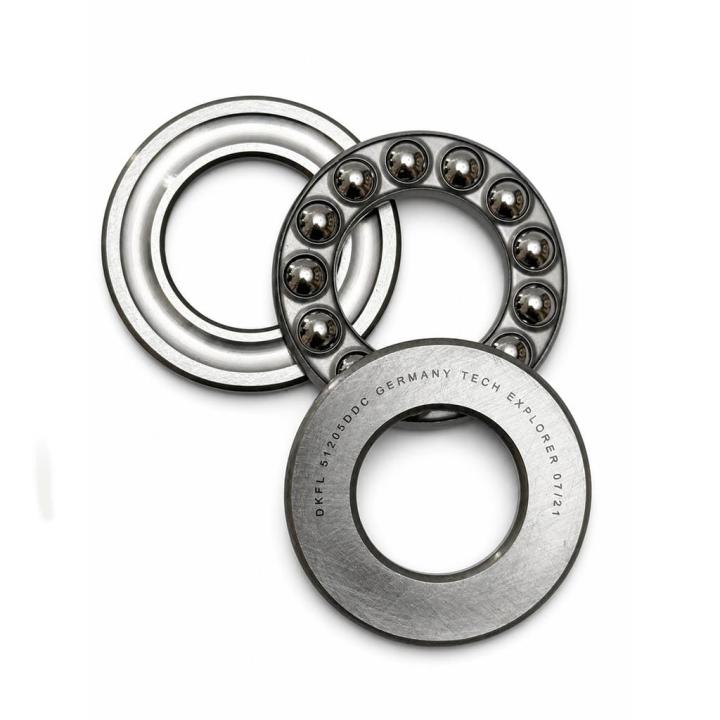

To overcome this challenge, engineers utilize thrust ball bearings. Among the most reliable and popular choices is the DKFL 51205 DDC Thrust Ball Bearing. This component functions like a meticulously engineered three-piece sandwich: two polished steel washers containing a precisely spaced ring of hardened steel balls, all held captive within a robust cage. The reputable DKFL brand, using premium steel and advanced heat treatment, manufactures this model to ensure smooth, quiet operation and exceptional longevity, even under the most demanding vibrations and sustained loads.
Decoding the Code 51205 DDC: What Do These Numbers and Letters Mean Simply?
At first glance, the code "51205 DDC" might seem like an obscure factory designation. However, breaking it down reveals the component's precise dimensions and construction, helping you determine if it's the right fit for your machinery:
- Prefix "51" (Single-Direction Thrust Family): In standard bearing language, "51" identifies a single-row thrust ball bearing. It's designed to handle direct axial force from one direction only and features a fully separable component structure.
- Digit "2" (Heavy-Duty 512 Series): Thrust ball bearings primarily come in two common series: 511 (lightweight, thinner) and 512 (thicker, heavier-duty). The "2" in 51205 indicates thicker washers, a more robust housing, and larger balls compared to the lighter 51105, offering superior resistance to crushing and impact loads.
- Digits "05" (Inner Bore Size): To find the inner diameter in millimeters, multiply the last two digits by 5 (5 × 5 = 25 mm). This means the bearing's central hole is precisely 25 millimeters, designed to fit onto 25mm diameter shafts.
- Suffix "DDC" (Premium Quality Feature): This designation signifies DKFL's enhanced quality control standards. It implies superior raceway surface finishing for quieter operation, tighter running clearances, use of upgraded materials, and overall extended service life beyond standard models.
DKFL 51205 DDC Thrust Ball Bearing: Technical & Dimensional Specs
| Product Name & Model | Single-Direction Thrust Ball Bearing 51205 DDC |
| Manufacturer Brand | DKFL (Premium Industrial Standard, Durable) |
| Inner Bore Diameter (d) | 25 mm (Fits 25mm Shafts) |
| Outer Diameter (D) | 47 mm |
| Overall Height / Thickness (H) | 15 mm (Thicker & higher capacity than the lighter 51105 series) |
| Component Structure | 3-Piece Separable (Shaft Washer, Ball Cage Assembly, Housing Washer) |
| Ring & Ball Material | Chrome Alloy Steel with Surface Hardening for Wear Resistance |
| Load Direction Capability | Axial Loads from One Direction Only (Downward Thrust) |
| Separable Components Feature | Yes (Facilitates extremely easy assembly & cleaning) |
Why Is the DKFL 51205 DDC Bearing a Superior Choice for Your Workshop?
The market offers a wide array of bearing brands and price points. So, why opt for the DKFL 51205 DDC thrust ball bearing? Let's examine the practical advantages that set it apart:
- Exceptional Crushing Resistance (512 Series Superiority): For a 25mm shaft, you might also find the 51105 model (11mm thick). However, the 51205, at 15mm thick with a 47mm outer diameter, incorporates thicker washers and larger balls. This greater mass provides significantly higher resistance to shock loads, machine kickback, and heavier weights, preventing premature ball deformation.
- Quick Assembly & Disassembly Design: Unlike integrated bearings requiring pullers or heat, this bearing is made of three separate pieces. You can easily install the lower washer, pack the cage with grease, place the balls, and then mount the upper washer. Maintenance and cleaning are straightforward, even for less experienced personnel.
- Mirror-Smooth, Silent Operation: A key benefit of the DKFL DDC series is the precision polishing of the ball raceways. As the balls glide through these ultra-smooth grooves, friction is minimized. This prevents overheating, ensures silent running, and contributes to a longer bearing life.
- Hardened Steel for Enduring Performance: Low-quality bearings often suffer from metal fatigue and surface pitting after extended use. DKFL's metallurgical expertise and hardened chrome steel ensure that both the balls and raceways maintain their integrity and performance for years, resisting wear and deformation.
Where is this Bearing Commonly Used?
With its 25mm shaft size and robust load-handling capability, the DKFL 51205 DDC becomes a versatile tool for light to medium-heavy industrial applications. Here are some common scenarios:
- Drill Presses & Bench Drilling Machines: When drilling thick metal, the operator applies significant downward force to the spindle. This bearing, situated above the drill bit, absorbs that axial thrust while allowing the spindle to rotate freely and smoothly.
- Mechanical Jacks, Screw Jacks & Workshop Lifts: For jacks utilizing Acme or lead screws to lift heavy loads, smooth rotation of the screw is crucial. The 51205 DDC facilitates effortless turning of the jack's handle, minimizing operator effort.
- Rotary Tables & Workpiece Positioners: In assembly, welding, or packaging fixtures that require rotation, this bearing at the central pivot allows heavy platforms (hundreds of kilograms) to turn with just a gentle push.
- Industrial Valves & Control Gate Wheels: Operating large industrial valves often requires overcoming significant stem friction. Incorporating a thrust bearing under the handwheel makes operation considerably easier and smoother.
- Small Crane Hooks & Workshop Hoists: To enable suspended loads to swivel freely without twisting the hoist cable or chain, this bearing is integrated into the hook's swivel mechanism.
Crucial Installation Tips: Preventing Premature Failure
While thrust bearings appear simple, overlooking a few key installation steps can render the component useless within hours. Remember these guidelines when replacing or mounting:
1. Identify the Shaft vs. Housing Washer (Vital Step): Although similar, one washer has a tighter inner bore (precisely 25mm) and the other a slightly looser bore (approx. 26mm). The tighter washer (shaft washer) must be mounted onto the rotating shaft and spin with it. The looser washer (housing washer) must sit stationary against the machine frame, preventing the shaft from rubbing against it. Mismounting these will cause immediate seizure and damage!
2. Avoid Radial and Eccentric Loads: This bearing is designed *only* for direct axial (vertical) forces. If your shaft experiences significant side-to-side movement or wobble, you must install a standard radial ball bearing alongside this thrust bearing to counteract those forces.
3. Use Adequate High-Quality Grease: Because the thrust bearing's ball assembly is exposed, grease acts as the primary lubricant and contaminant shield. Before assembly, generously pack the ball cage and raceways with a suitable high-performance, extreme-pressure (EP) grease.
4. Ensure Clean, Flat Mounting Surfaces: The seat where the bearing rests must be perfectly flat, free of burrs, debris, or scale, and precisely perpendicular to the shaft's axis. Even a tiny imperfection can cause the washer to tilt, concentrating the entire load onto just a few balls, leading to their immediate failure.
Common Customer Questions About the DKFL 51205 DDC Bearing
What's the difference between a 51105 and the 51205 DDC, and which is better?
Both fit a 25mm shaft. The 51205 has a larger outer diameter (47mm vs 42mm) and is thicker (15mm vs 11mm). If your machine housing allows, the 51205 offers substantially higher load capacity and durability due to its more robust construction.
Can this bearing operate at very high speeds (e.g., 5000 RPM)?
No. Due to the effects of centrifugal force on the open ball arrangement, thrust bearings are generally not suited for high-speed rotation. They excel in medium-to-low speed applications under significant axial loads.
Does the 51205 thrust bearing handle loads from both directions?
No, this is a single-direction thrust bearing. For applications requiring axial load support in both directions (push and pull), a double-direction thrust bearing (e.g., 522 series) is necessary.
What specific advantage does the "DDC" designation offer?
The "DDC" suffix indicates DKFL's premium manufacturing class, featuring enhanced raceway finishes for ultra-smooth, quiet operation, tighter tolerances, and superior material quality, resulting in extended service life.
Keep Industrial Lines Moving with DKFL Authenticity & Quality
A substandard component can halt your entire operation, leading to costly repairs and downtime. At KGICO, we guarantee the authenticity, standard hardness, and premium quality of the DKFL 51205 DDC thrust ball bearing, ensuring the smooth and lasting performance of your machinery.
