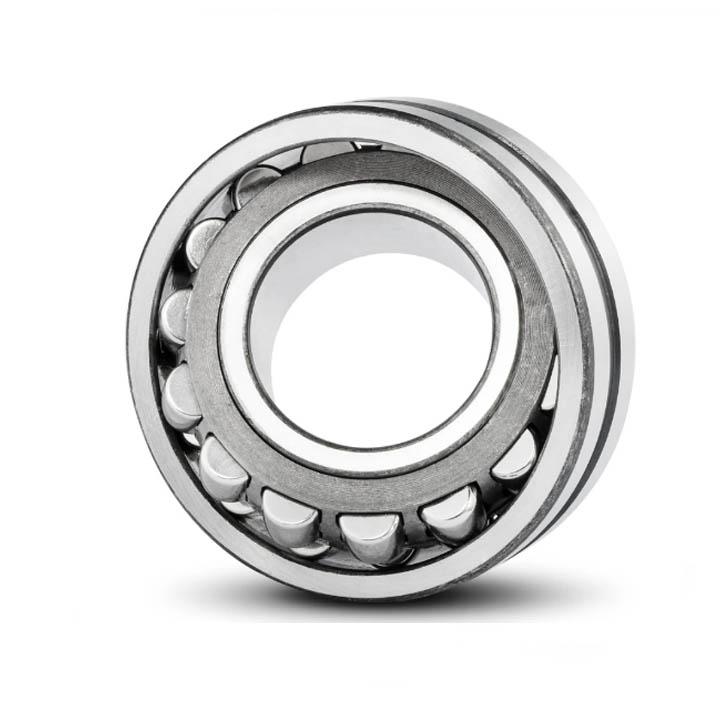

KGI 22211 CCKW33 Spherical Roller Bearing
This is where the KGI 22211 CCKW33 Spherical Roller Bearing becomes your best defense. The rollers inside this bearing are barrel-shaped and sit within a polished, curved raceway. This clever design allows the bearing to "self-align." Even if your shaft twists or bends slightly under load, the rollers pivot smoothly within the outer ring, allowing the machine to keep running without locking up or failing.
10022080115
Request a quote
Product Detail
Spherical Roller Bearing KGI 22211 CCKW33 Handling Heavy Loads, Shock Impacts, and Shaft Misalignment
What is a Spherical Roller Bearing, and Why is it Essential?
Imagine the shaft of a large industrial fan, a rock crusher, or a heavy-duty conveyor system in your plant. Under heavy loads or constant vibration, shafts naturally tend to flex, "belly," or shift slightly out of perfect alignment. If you were using a standard ball bearing in such a setup, the roller edges would bind against the bearing raceway, overheat, and fail prematurely because standard bearings simply aren't designed to handle even slight shaft deflection.
This is where the KGI 22211 CCKW33 Spherical Roller Bearing becomes your best defense. The rollers inside this bearing are barrel-shaped and sit within a polished, curved raceway. This clever design allows the bearing to "self-align." Even if your shaft twists or bends slightly under load, the rollers pivot smoothly within the outer ring, allowing the machine to keep running without locking up or failing.
KGI produces this bearing with precise international dimensions—55mm inner diameter, 100mm outer diameter, and 25mm width—ensuring that maintenance teams can rely on it for vibration-free and secure operation in the toughest industrial environments.
Why Two Rows of Rollers Are Better Than One
If a hand truck had only one narrow row of wheels, it would be unstable under heavy side-to-side forces. Similarly, the 22211 KGI bearing features two rows of symmetrical barrel-shaped rollers that work simultaneously to perform two critical tasks:
- Radial Load Bearing: The large contact surface area of the barrel rollers distributes massive vertical pressure across the bearing rings, handling heavy tonnages with ease.
- Axial Load & Shock Mitigation: Because the rollers are positioned at an angle, they can effectively absorb side impacts and thrust forces that would destroy a standard bearing.
- Vibration Dampening: In machines like screeners and crushers that are subject to constant shaking, this design prevents the internal components from shattering.
Decoding 22211 CCKW33: A Buyer’s Guide
The part number tells a specific story about this component. Understanding these codes helps you avoid ordering the wrong part:
- 22211 (Series): Indicates the standard dimensions and load capacity class for this bearing size.
- CC (Design): Refers to the optimized internal design with a reinforced cage, which minimizes friction and operating temperature.
- K (Tapered Bore): The inner hole is not cylindrical; it’s tapered at a 1:12 ratio, designed to be mounted using an adapter sleeve.
- W33 (Lubrication): Indicates the bearing has a circumferential groove and three lubrication holes on the outer ring, making it easy to grease while the machine is running.
Specifications Table: KGI 22211 CCKW33
Why the "K" (Tapered Bore) is a Maintenance Professional's Best Friend
If a bearing bore were cylindrical, you'd likely need to heat the bearing or force-fit it onto the shaft, often causing damage to both components. The 22211 CCKW33 uses an adapter sleeve (H 311):
- The sleeve slides onto a standard shaft.
- The bearing slides onto the tapered surface of the sleeve.
- Tightening the lock nut pushes the bearing up the taper, clamping it onto the shaft with a secure, slip-free grip.
- Removal is effortless: just loosen the nut, and the bearing comes right off without needing a puller that could scar your shaft.
Key Features & Advantages
Self-Aligning
Compensates for 2 to 2.5 degrees of shaft misalignment without failure.
Combined Loads
Handles massive radial weights and axial thrust simultaneously.
Easy Lubrication
W33 design ensures grease reaches the center of the bearing efficiently.
Hardened Steel
Wear-resistant chrome steel built for long-term fatigue resistance.
Where to Use This Bearing
Commonly found in heavy industrial machinery, including:
- Conveyors: Ideal for drums and rollers in mining and cement plants.
- Industrial Fans: Handles high-speed vibration effortlessly.
- Vibrating Screens: Built to withstand constant oscillating loads.
- Gearboxes: Perfect for high-torque input and output shafts.
Installation Pro-Tips for Longevity
1. Don't Over-Tighten
Tightening the lock nut too much reduces internal clearance. Check for smooth rotation after installation.
2. Use the Locking Washer
Always bend the tab of the MB 11 washer to secure the nut against vibration.
3. Proper Greasing
Fill 30-50% of the bearing volume. Over-greasing causes overheating.
FAQs
Which adapter sleeve do I need?
The 22211 K bearing pairs perfectly with the H 311 adapter sleeve.
What's the difference between this and the standard 22211?
The "K" version has a tapered bore for easier mounting with a sleeve, whereas the standard version has a cylindrical bore for direct shaft mounting.
