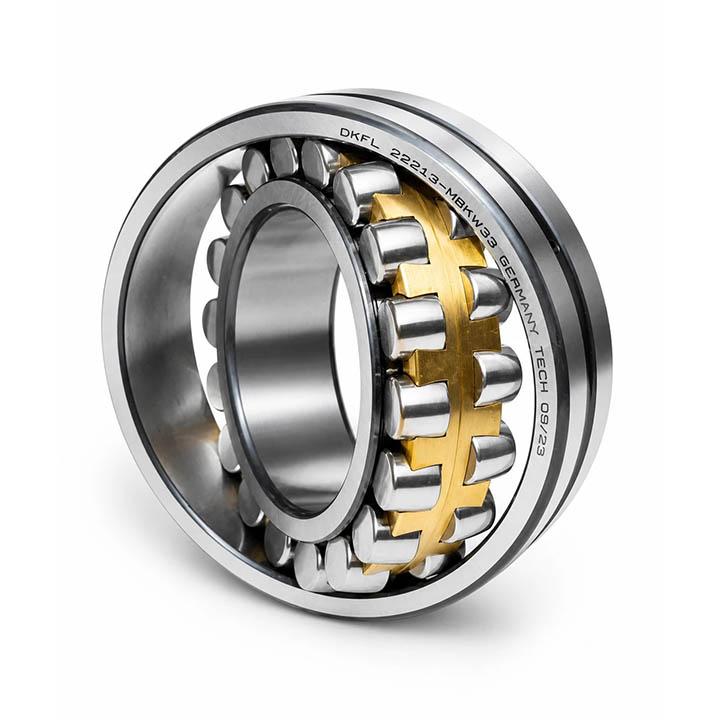

DKFL 22213 KMB W33 Spherical Roller Bearing
The spherical roller bearing, also known as the Spherical Roller Bearing (SRB), is one of the most robust rolling bearings in the industry, specifically designed to handle extremely heavy radial loads and simultaneous axial loads. Its unique structure, featuring barrel-shaped rollers and a spherical outer raceway, allows it to compensate for shaft and housing misalignment to a significant degree.
10060101252
MOQ: 1
Request a quote
product dimensions
- weight: 1.80 گرم
Product Detail
DKFL 22213 KMB W33 Spherical Roller Bearing; Technical Specifications, Dimensions & Applications
DKFL 22213 KMB W33 Technical & Dimensional Specifications
| Technical Parameter | Value / Specification | Engineering Details |
|---|---|---|
| Bore Diameter (d) | 65 mm | Tapered bore with 1:12 slope (Code K) |
| Outer Diameter (D) | 120 mm | Precision ground to ISO dimensional tolerance standards |
| Bearing Width (B) | 31 mm | Standard ISO 222 dimensional series |
| Cage Type | MB (Machined Solid Brass Cage) | Inner ring guided; engineered for high vibration environments |
| Lubrication Feature | W33 | Circumferential groove + 3 relubrication holes on outer ring |
| Matching Adapter Sleeve | H 313 / HE 313 | For mounting onto 60 mm straight shafts with locknut & washer |
| Approximate Weight | ~ 1.5 to 1.6 kg | Manufactured from high-purity 100Cr6 (GCr15) bearing steel |
Decoding the Designation: What Does 22213 KMB W33 Mean?
Understanding each section of this standardized code ensures precise specification for maintenance and engineering applications:
- 222: Identifies the standard double-row spherical roller bearing ISO dimensional series.
- 13: Bore code calculation ($13 \times 5 = 65\text{ mm}$ nominal bore diameter).
- K: Indicates a 1:12 tapered bore designed for mounting with an adapter sleeve (H-series).
- MB: Solid machined brass cage guided on the inner ring, offering superior tensile strength, shock resistance, and fatigue endurance over standard pressed-steel cages.
- W33: Specifies an annular lubrication groove and three oil discharge ports on the outer ring for targeted lubricant flow straight to the rolling elements.
Key Advantages of the DKFL 22213 Bearing with Brass Cage (MB)
- Superior Dynamic Self-Alignment: Compensates for shaft deflections or angular misalignments up to 1.5°–2° without edge loading.
- Vibration and Shock Resistance: The robust machined brass cage resists structural deformation and fatigue during sudden load surges and vibrating duties.
- Straightforward Clearance Adjustment via H313 Sleeve: The tapered bore enables precise adjustment of Radial Internal Clearance (RIC) using feeler gauges and controlled locknut torque.
- Optimized Relubrication Regime: The standard W33 feature allows fresh grease to reach critical contact zones directly without needing bearing disassembly.
Common Industrial Applications of 22213 KMB W33
Due to its standardized envelope dimensions and high dynamic load capacity, this model is deployed across a broad range of heavy machinery:
- Split plummer block housings: SN 513 / SNL 513 / SNG 513
- Conveyor drive drums and return idler assemblies in cement, mining, and steel plants
- Vibrating screens and feeders in aggregate processing and quarry lines
- Industrial blowers and heavy-duty ventilation fans operating at medium-to-high speeds
- Industrial gear drives, crushers, and material pulverizing machinery
Why Choose DKFL Bearings for Industrial Facilities?
Engineered under the rigorous quality management of Kamyar Gostar Iranian Industrial Group, DKFL products utilize vacuum-degassed high-carbon chromium steel, precise CNC grinding, and controlled heat treatment. DKFL spherical roller bearings guarantee smooth, low-vibration operation, extended fatigue life, and a high return on investment (ROI) for continuous manufacturing operations.
For daily pricing, comprehensive technical datasheets, and bulk procurement inquiries for DKFL 22213 KMB W33 bearings and H313 adapter sleeves, contact our engineering sales and technical support department today.
