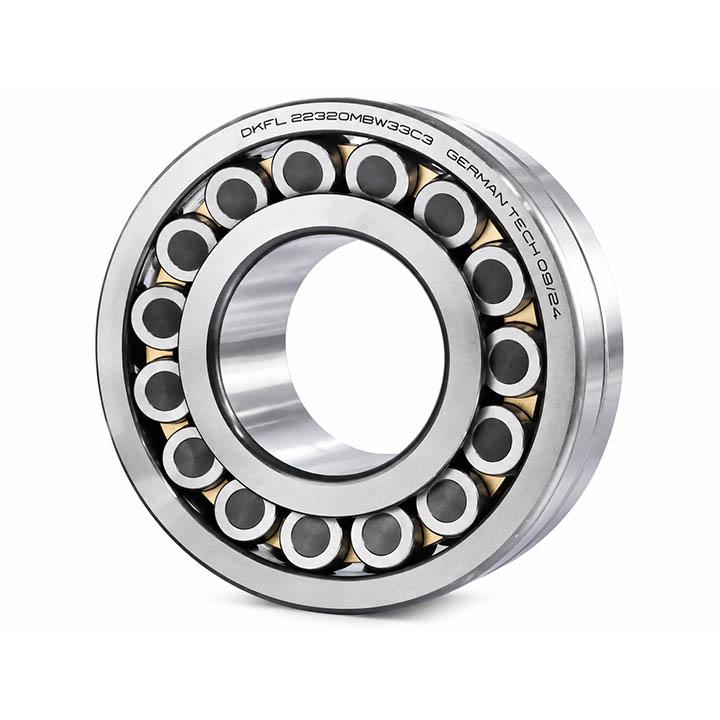

DKFL 22320 BMW33 Spherical Roller Bearing
The Heavy-Duty Workhorse; Self-Aligning, Ultra-Tough, and Built for Severe Vibration
When Heavy Pressure and Shock Loads Are Part of Daily Operations
In heavy industrial environments, machinery components operate under conditions that resemble a relentless battlefield. Heavy jaw crushers, mining vibrating screens, massive belt conveyors, marine propulsion gearboxes, and large rolling mills operate around the clock under violent shock loads, heavy continuous weights, and unpredictable structural deflections. Under these punishing parameters, a standard ball or roller bearing would quickly fatigue, crack, and fail within weeks.
This is precisely where the DKFL 22320 BMW33 Spherical Roller Bearing demonstrates its undisputed value. Instead of simple round balls or straight cylindrical rollers, this bearing features two rows of barrel-shaped, symmetrical spherical rollers rolling smoothly inside a shared spherical outer raceway. This specialized geometry allows the bearing to comfortably absorb immense downward radial weights while seamlessly carrying bidirectional axial forces and heavy mechanical shocks.
Even more importantly, the spherical outer raceway gives this bearing complete self-aligning capability. When a rotating shaft bends slightly under severe tonnages, or when thermal expansion causes structural distortion in the housing, the internal rollers and inner ring tilt harmlessly without binding. It is a forgiving, heavy-duty industrial powerhouse built to protect your operational uptime and keep your most valuable equipment turning reliably.
Decoding the Technical Code: What Does 22320 BMW33 Mean?
Every character stamped on this industrial bearing tells an essential story about its physical scale, internal construction, and operational capability in plain terms:
- Series Designation "223": Indicates the 223 heavy-load spherical roller series. Compared to standard series (like 222 or 230), the 223 series is engineered with thicker cross-sections and larger-diameter rollers to deliver the highest possible dynamic load rating in challenging industrial machinery.
- Size Indicator "20": Determines the inner bore diameter. In metric bearing standards, multiplying this two-digit number by 5 gives the exact shaft fitment: 20 × 5 = 100 mm. This unit mounts securely onto a 100 mm diameter industrial shaft.
- Suffix "BM": Signifies a high-strength, two-piece machined solid brass cage (retainer). Unlike thin stamped-steel cages, solid brass handles high operating temperatures, dampens vibration, and resists fatigue under extreme shock loads.
- Feature Code "W33": Identifies a precision circumferential lubrication groove and three oil discharge holes machined into the center of the outer ring. This feature channels fresh grease or oil straight into the heart of the rolling elements and raceways for optimal cooling and friction reduction.
DKFL 22320 BMW33 Technical Specifications
| Product Type | Double-Row Spherical Roller Bearing (Self-Aligning) |
| Brand | DKFL (Heavy Industrial Standard Grade) |
| Inner Bore Diameter (d) | 100 mm |
| Outer Diameter (D) | 215 mm |
| Total Width (B) | 73 mm |
| Cage Type & Material | Machined Solid Brass Cage (BM Designation) |
| Lubrication Feature | Outer Ring Circumferential Groove & 3 Oil Holes (W33) |
| Ring & Roller Material | Premium GCr15SiMn / Through-Hardened Bearing Alloy Steel |
Why Maintenance Teams and Plant Engineers Trust DKFL 22320
Many generic bearing brands claim high strength on paper, but under the punishing loads of actual factory floors, metallurgical inconsistencies quickly show. Here is why the DKFL 22320 BMW33 delivers real-world performance advantages:
- Flawless Self-Alignment: Heavy shafts inevitably flex under immense torque and tonnage. The DKFL 22320 naturally compensates for angular shaft deflection and housing misalignment without increasing internal friction or creating destructive edge-loading on the rollers.
- Immense Dynamic & Static Load Ratings: The robust double-row barrel roller array spreads tremendous mechanical forces across wide, supportive contact bands. This keeps stresses low and prevents metal fatigue even under unpredictable, surging loads.
- Superior Vibration Resistance with Solid Brass: The BM machined brass retainer provides exceptional dimensional stability, low surface friction, and excellent shock absorption in vibrating environments like aggregate screens and crushing equipment.
- Extended Service Intervals via W33 Lubrication: The integrated outer ring groove and lubrication ports guarantee that fresh lubricant penetrates directly into the active contact zones, purging contaminants, reducing operating temperatures, and multiplying operating life.
Where Does the 22320 BMW33 Excel in the Field?
Wherever colossal forces, heavy continuous torque, and harsh environmental contaminants intersect, the DKFL 22320 BMW33 serves as the backbone of rotating machinery:
- Mining, Aggregate & Quarrying: Jaw crushers, cone crushers, ball mills, vibrating screens, and heavy-duty bucket elevators.
- Heavy Industrial Gearboxes: Primary drive reducers for cement kilns, rolling mills, overhead cranes, and maritime propulsion units.
- Steel Mills & Metal Processing: Continuous casting roll necks, hot rolling transfer tables, and high-tension winding drums.
- Pulp, Paper & Timber Processing: Debarking drums, wood chippers, calender rolls, and heavy drying cylinders where heat and moisture challenge standard components.
- Heavy Bulk Material Conveyors: Main head and tail drive pulleys operating under hundreds of tons of belt tension.
Essential Installation and Maintenance Guidelines
Handling a precision component with an outer diameter of 215 mm and significant weight requires careful, professional mounting practices to ensure maximum operational life:
1. Never Use Raw Impact Hammers: Striking the outer or inner rings directly with a steel hammer will dent raceways and fracture rollers instantly. Always use a professional induction bearing heater to uniformly expand the inner ring to approximately 110°C (230°F) so it slides smoothly onto the shaft journal without force.
2. Utilize the W33 Lubrication Feature: Make sure your bearing housing is equipped with grease zerks aligned with the W33 outer ring groove. Regularly replenish clean, high-temperature EP (Extreme Pressure) lithium-complex or polyurea grease to flush out dust and prevent metal-to-metal contact.
3. Maintain Strict Workspace Cleanliness: Even microscopic sand, slag, or metal particles trapped inside the bearing during assembly act like grinding compound, drastically cutting bearing life. Keep packaging sealed until the moment of installation and clean all shaft journals thoroughly.
4. Check Radial Internal Clearance (RIC): Verify the residual internal clearance using a precision feeler gauge between the top roller and the outer ring raceway after fitting to confirm the bearing has not been expanded too tightly over the shaft seat.
Frequently Asked Questions (FAQ)
What makes a spherical roller bearing different from a tapered roller bearing?
Tapered roller bearings are outstanding for handling combined radial and high single-direction thrust loads where precise preload adjustment is required. However, they cannot self-align. Spherical roller bearings tolerate significant shaft flexing, misalignment, and heavy vibrations while carrying both radial and bidirectional thrust loads without binding.
Is this bearing suited for ultra-high-speed electric motors?
No. The 22320 BMW33 is built specifically for immense load capacity, structural resilience, and shock dampening rather than high rotational RPM. It is optimized for low-to-medium-speed, high-torque industrial machinery.
Why is the machined brass cage (BM) preferred over a pressed steel cage in this size?
In heavy vibrating equipment (like crushers and screens), pressed sheet steel cages can crack under severe oscillatory stresses. The solid machined brass cage offers superior tensile strength, superior heat resistance, and self-lubricating properties under extreme operating conditions.
Secure Unstoppable Industrial Uptime with Genuine DKFL Bearings
In heavy manufacturing and mining operations, bearing failure means costly unplanned shutdowns. Invest in proven metallurgical durability and precise German-standard engineering with the genuine DKFL 22320 BMW33 spherical roller bearing. Contact the technical team at KGICO today for authentic inventory sourcing, direct wholesale pricing, and expert engineering support.
