DPI 24040 CCW33 C3 Spherical Roller Bearing

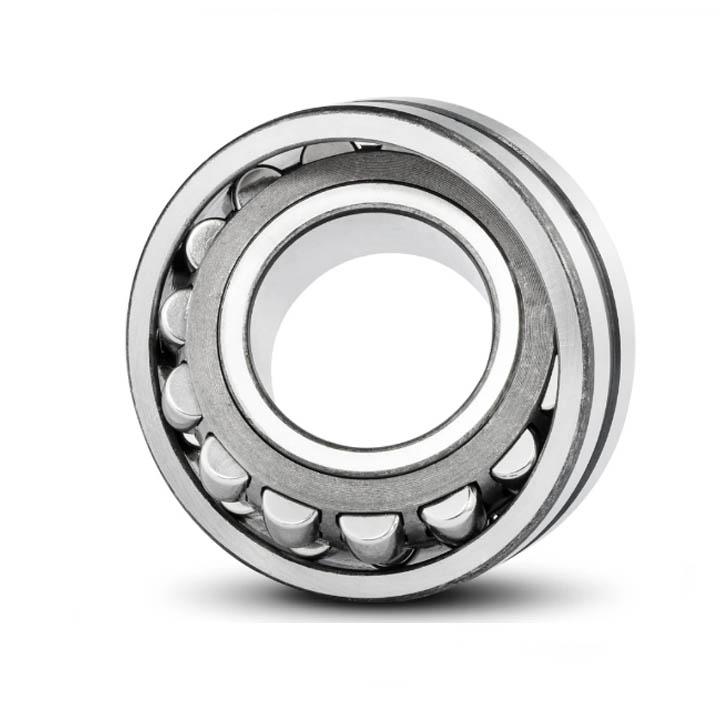

The internal structure of the 24040 consists of two rows of barrel-shaped rollers that rotate within a spherical outer ring. This smart geometry allows the bearing to "self-align," meaning it can handle minor shaft deflections or housing misalignments without transferring damaging stress to its internal components. DPI manufactures this bearing using high-quality steel and precise heat treatment, ensuring it can withstand the rigors of 24/7 industrial production.
10020023291
Request a quote
Product Detail
Comprehensive Guide: Heavy-Duty Spherical Roller Bearing 24040 CCW33 C3 DPI Brand | 200 mm Bore, Designed for Extreme Loads & Thermal Conditions
This practical guide is written for purchasing teams, maintenance managers, workshop foremen, and technicians. The DPI 24040 spherical roller bearing, featuring the CC, W33, and C3 designations, is one of the most robust choices for heavy industrial machinery with large shaft diameters. In this article, we break down its dimensions, the technical significance of the C3 clearance, installation best practices, and maintenance tips in clear, straightforward language.
What is the DPI 24040 Spherical Roller Bearing?
In heavy industry, equipment often faces a combination of massive weight, continuous impact, and high operating temperatures. Large 200mm shafts frequently experience microscopic bending or alignment shifts during operation. A standard bearing would fail quickly under these stresses. This is where the Spherical Roller Bearing (SRB) excels.
The internal structure of the 24040 consists of two rows of barrel-shaped rollers that rotate within a spherical outer ring. This smart geometry allows the bearing to "self-align," meaning it can handle minor shaft deflections or housing misalignments without transferring damaging stress to its internal components. DPI manufactures this bearing using high-quality steel and precise heat treatment, ensuring it can withstand the rigors of 24/7 industrial production.
Why is the 240 Series Special?
The 240 series is known as the "Wide Series." While its outside diameter is compact relative to the bore, its significant 109mm width allows for longer and more numerous rollers. This design provides an exceptionally high radial load capacity, making it perfect for heavy-duty applications where space is at a premium, but performance cannot be compromised.
Decoding the 24040 CCW33 C3 Designation
The letters and numbers stamped on the box and the bearing ring serve as a precise fingerprint for the part. Understanding them ensures you order the correct component for your machine:
- 240 (Series Code): Indicates a two-row spherical roller bearing, designed for extremely heavy radial loads and wide-series dimensions.
- 40 (Bore Code): By international standard, multiply the last two digits by 5 to get the bore diameter:
40 × 5 = 200 mm. This confirms the bearing fits a standard 200 mm shaft. - CC (Design Suffix): Indicates an optimized internal design with a flange-less inner ring and a reinforced two-piece pressed steel cage. This cage is highly durable against shocks and torque fluctuations.
- W33 (Lubrication Feature): Denotes an annular groove and three lubrication holes in the outer ring, allowing grease to be injected directly into the bearing center, reaching all rollers evenly.
- C3 (Clearance): This is critical. It indicates a radial internal clearance larger than normal. This extra space prevents the bearing from binding or "seizing" due to thermal expansion.
- No "K": The absence of the letter "K" means the bore is cylindrical (straight), not tapered. It mounts directly onto the shaft without an adapter sleeve.
Why is C3 Clearance Essential?
Many buyers mistake "clearance" for "sloppiness," but in engineering, internal clearance is vital for survival.
When the 24040 is mounted onto a 200mm shaft, the tight "interference fit" causes the inner ring to expand slightly. Furthermore, in demanding environments like steel mills, cement plants, or crushers, heat is generated. Metal expands when hot. If a standard clearance bearing were used, the rollers would expand, filling the internal gap completely, creating massive friction, causing the bearing to overheat, and potentially leading to catastrophic seizure.
The C3 class provides the necessary microscopic "breathing room," ensuring that even after thermal expansion occurs, the bearing maintains the perfect operational clearance for the oil or grease film to remain intact.
Specifications Table: DPI 24040 CCW33 C3
Key Industrial Applications
Due to its immense load capacity and resilience, the 24040 is found in:
- Mining & Crushing: In ball mills, feeders, and crushers where dust and heavy vibrations are constant.
- Cement Plants: In rotary kilns and large fan systems operating at high temperatures.
- Steel Mills: In roller tables and heavy gearboxes for rolling hot metal.
- Paper Mills: Specifically in dryer cylinder shafts, where heat expansion management is critical.
- Heavy Marine Equipment: Large winch and crane systems.
Installation and Maintenance Best Practices
Quality hardware is only as good as its installation. Proper handling ensures you get the full design life out of your bearing.
- No Hammering: Never strike the bearing directly with a hammer or sledge. This causes indentations in the raceways or cracks in the cage.
- Use Induction Heating: For a 200mm bore bearing, use an induction heater to heat the bearing (typically to 100°C–110°C). This expands the inner ring, allowing it to slide easily onto the shaft.
- Keep it Clean: Do not unwrap the bearing until you are ready to mount it. Even small debris can destroy the precision surfaces within minutes of operation.
- Lubrication: Utilize the W33 feature. Apply high-quality grease (Lithium complex or Calcium sulfonate) through the outer ring groove to ensure the grease reaches both rows of rollers.
- Monitoring: Post-installation, monitor temperature and vibration. Initial temperature spikes as grease distributes are normal, but it should quickly stabilize.
Frequently Asked Questions
1. Does this model require an adapter sleeve?
No. The standard 24040 is a cylindrical (straight) bore. If your application specifically requires an adapter sleeve, you would typically look for a model with a "K" in the designation.
2. Why is C3 preferred over standard clearance?
C3 clearance is a safety buffer. It prevents the bearing from jamming during thermal expansion. In almost all heavy industrial applications, C3 is the safer, more reliable choice.
3. Is the DPI brand reliable?
DPI is a well-established industrial brand offering a high balance of quality and cost-effectiveness. It is widely trusted for heavy machinery maintenance where reliability and budget are both priorities.
Need Help with the DPI 24040?
