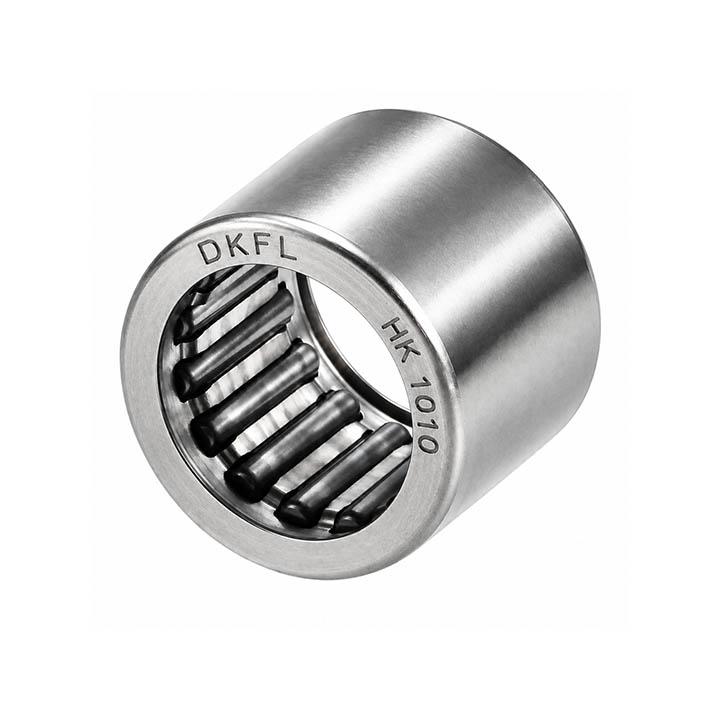

DKFL HK 10-10 Needle Roller Bearing
Massive Load Capacity in a Coin-Thin Profile; DKFL’s Ultimate Space-Saving Precision Solution
Why Can Less Space Mean Greater Strength? The Story of Needle Bearings
Picture yourself engineering or servicing a compact mechanism where every millimeter is precious. Think of a handheld cordless drill, a miniature planetary gearbox, a precision valve actuator, or a responsive automotive pedal assembly. In these tight confines, traditional deep groove ball bearings simply do not fit. Their outer rings and spherical balls demand far too much radial space, leaving zero clearance for compact housing designs.
This creates a classic dilemma: how can you support substantial rotational loads and withstand sharp radial impacts without adding bulk and weight to your assembly? The answer lies in the ingenious architecture of needle roller bearings, perfected by DKFL in the HK 10-10 series.
Instead of round spherical balls that touch the raceway at tiny single points, needle bearings employ slender, cylindrical steel rollers resembling sewing needles. Because these rollers contact the rotating surfaces along continuous lines rather than dots, the applied weight distributes broadly across a vastly larger contact area. The result is astonishing: a featherweight component with a wall thickness barely exceeding 2 millimeters, capable of bearing heavy radial forces that would normally require a far bulkier conventional bearing.
Decoding "HK 10-10": What Do the Letters and Numbers Tell You?
Bearing nomenclature may look like cryptic workshop shorthand, but it is actually a straightforward dimensional blueprint once broken down into simple terms:
- Designation "HK" (Drawn Cup Shell): Unlike solid, heavy-machined bearing rings, an HK model features a deep-drawn thin-walled outer cup pressed from premium alloy steel sheet, followed by precision surface case-hardening. This yields an exceptionally slim profile without sacrificing mechanical strength.
- First Digit "10" (Inner Inscribed Diameter - Fw): This specifies that the circle formed by the inside faces of the needle rollers is exactly 10 mm. It is crafted to wrap directly around a 10 mm diameter hardened shaft.
- Second Digit "10" (Overall Width - C): This indicates that the bearing width measures exactly 10 mm. Combined with its 14 mm outer diameter, you get a compact, symmetrical 10x10 footprint ideal for space-constrained arrangements.
DKFL HK 10-10 Needle Roller Bearing: Key Technical Specifications
| Product Designation | Drawn Cup Needle Roller Bearing HK 10-10 |
| Manufacturer Brand | DKFL (Industrial Precision & Heavy-Duty Standards) |
| Inside Diameter / Shaft Bore (Fw) | 10 mm |
| Outside Diameter (D) | 14 mm |
| Overall Width / Height (C) | 10 mm |
| Inner Ring Included? | No (Runs directly on a hardened, ground shaft surface) |
| Roller & Shell Material | High-Carbon Chromium Bearing Steel, Heat-Treated & Quenched |
| Load Orientation | Pure Radial Load Capacity |
What Makes the DKFL HK 10-10 an Outstanding Choice?
Selecting bearings is not merely about finding matching numbers; it is about guaranteeing downtime-free machinery operation. Here is why engineers and technicians rely on the DKFL HK 10-10:
- Radical Space & Weight Savings: With an outer diameter of only 14 mm housing a 10 mm shaft, the radial envelope is a slender 2 mm per side. This enables designers to slim down surrounding cast parts, reducing overall machine mass and shipping costs.
- Superb Line-Contact Load Distribution: Because each needle roller shares the load along its entire cylindrical profile, pressure spikes are prevented. This dampens vibrations and protects your gear train during sudden startup surges or intermittent shock loading.
- Ultra-Smooth Rolling Dynamics: DKFL's proprietary precision crowning and micro-polishing of individual rollers eliminate edge stress. This friction reduction keeps running temperatures low, protects lubricating grease from thermal breakdown, and ensures quiet, buttery-smooth running.
- Economical Excellence: The cold-formed, deep-drawn cup manufacturing method achieves tighter manufacturing tolerances at a fraction of the cost of solid-turned housings, giving you premium performance within an economical budget.
Crucial Installation Rules: Preventing Immediate Damage
Drawn cup needle roller bearings obtain their true roundness and precise running clearance only after being pressed into a accurately sized housing bore. Handling them improperly will ruin their geometry before the machine even starts. Keep these practical rules in mind:
1. Always Use a Mandrel Press Tool: Never strike the thin face of the bearing directly with a hammer! The drawn steel shell is brittle and thin; direct impact will dent the raceways and shatter the needle cage. Use an arbor press or an installation mandrel that applies uniform pressure exclusively to the stamped end face.
2. Shaft Surface Hardness is Crucial: Because the HK 10-10 does not include an inner ring, the steel shaft itself acts as the inner raceway. The shaft must be hardened (recommended 58 to 64 HRC) and ground smooth (roughness Ra ≤ 0.2 μm). Using an untreated mild steel shaft will cause the needle rollers to cut deep grooves into the shaft within hours.
3. Initial Lubrication is Mandatory: Although delivered with a thin protective anti-corrosion film, the bearing must be packed with proper lithium-complex or synthetic EP grease before running, unless fed by an oil circulation system.
4. Zero Tolerance for Axial Loading: Remember that needle bearings are engineered strictly for perpendicular (radial) loads. If your shaft experiences lateral thrust or axial sliding, pair the HK 10-10 with a dedicated thrust washer or miniature thrust bearing.
Where Does the HK 10-10 Truly Excel?
Wherever compactness and radial sturdiness meet, the DKFL HK 10-10 is a preferred workhorse:
- Power Tools & Pneumatics: Hand drills, angle grinders, oscillating cutters, and impact wrenches where gears spin at thousands of RPM inside palm-sized motor heads.
- Automotive Subsystems: Alternator pulleys, starter motor pinions, power steering gearboxes, window lifters, and wiper motor linkages.
- Industrial Automation & Robotics: Swivel arm joints, miniature linear actuators, conveyor rollers, and automated pick-and-place grippers.
- Textile & Printing Machinery: Thread guides, tensioner pulleys, and paper feed shafts where hundreds of small, low-friction rollers operate continuously.
Frequently Asked Questions About the DKFL HK 10-10
What is the difference between HK 10-10 and HK 10-12?
Both have a 10 mm inner diameter and a 14 mm outer diameter. The only difference is the width: HK 10-10 is 10 mm wide, while HK 10-12 is 12 mm wide. The HK 10-12 offers slightly higher load capacity due to longer rollers, whereas HK 10-10 fits tighter axial spaces.
Can I install this bearing if my shaft is not hardened?
If your shaft cannot be heat-treated, you must use a matching separate inner ring sleeve (such as an IR series sleeve) on the shaft first, provided your surrounding housing has enough radial room to accommodate the extra diameter.
How do I know which side of the bearing to press on during installation?
Always press against the stamped side of the cup (where the brand mark "DKFL HK 10-10" is clearly etched). This face features a reinforced curved shoulder designed to safely accept installation force without distorting the cage.
Protect Your Machinery with Authentic DKFL Needle Bearings
In miniature machinery, even a tiny fraction of a millimeter in roller inaccuracy can lead to catastrophic motor seizure. At KGICO, we supply genuine, factory-certified DKFL bearings with verified alloy hardness, helping you build and maintain machinery that runs smoother and lasts longer.
