DKFL HK 1212 Needle Roller Bearing
HK Series Designation: Designates a "Drawn Cup" needle roller bearing with open ends. It features a thin-walled, deep-drawn outer ring that fits directly into the housing bore with a press-fit, eliminating the need for heavy retaining rings or shoulders.
10060101526
Request a quote
Product Detail

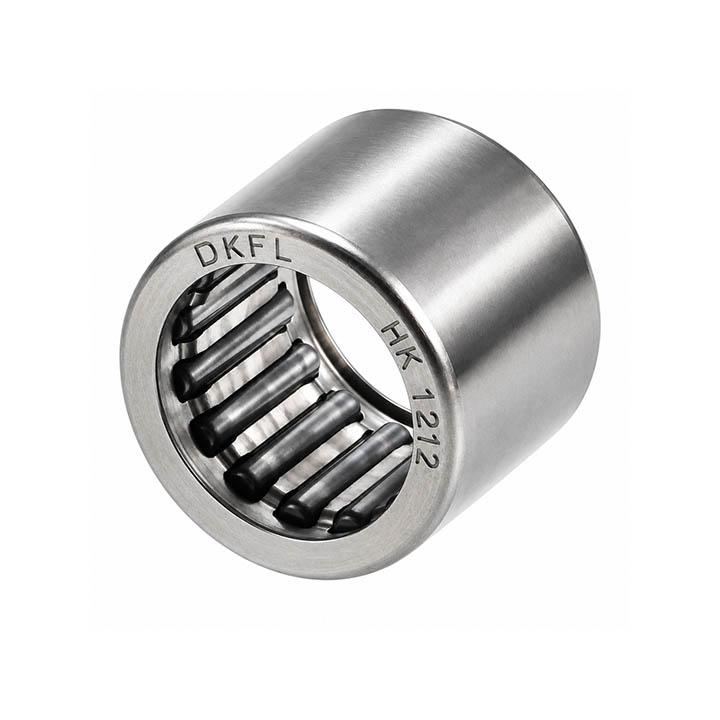

DKFL HK 1212 Drawn Cup Needle Roller Bearing
Massive Strength in a Compact Profile; The Ultimate Champion for Tight Spaces and Heavy Radial Loads
Why the Engineering World Relies on Needle Roller Bearings
Have you ever looked inside a power drill, a modern automotive gearbox, or a high-speed industrial printing machine? In these compact mechanisms, rotating components are packed extremely close together, leaving minimal clearance for bulky parts. If you try to fit a traditional ball bearing with round balls into such tight quarters, you quickly run into a wall: standard ball bearings must be significantly larger in diameter and thickness to handle serious weight and torque.
This is where the DKFL HK 1212 Needle Roller Bearing steps up as the ideal solution. Instead of round spherical balls, it utilizes long, slender, cylindrical rollers called "needles." These needles provide a continuous line of contact along the shaft rather than single-point contact spots. That expanded surface area distributes heavy radial loads evenly across the entire length of each needle. The result? A remarkably slim, space-saving component that can carry far heavier downward and sideways radial pressures than a bulkier conventional ball bearing.
Crafted by DKFL with precision-ground, through-hardened chrome bearing steel, the HK 1212 combines minimal cross-sectional height with uncompromising structural resilience, keeping your machinery rotating smoothly under severe continuous duty.
Decoding the Technical Code: What Does HK 1212 Mean?
The standard model code on industrial packaging tells you everything you need to know about the component's geometry and mounting style in simple terms:
- HK Series Designation: Designates a "Drawn Cup" needle roller bearing with open ends. It features a thin-walled, deep-drawn outer ring that fits directly into the housing bore with a press-fit, eliminating the need for heavy retaining rings or shoulders.
- First Number "12": Specifies the inner inscribed diameter (Fw) under the rollers. It is precisely sized to ride directly on a 12 mm diameter shaft.
- Second Number "12": Specifies the total bearing width (C), measuring exactly 12 mm from edge to edge. This ultra-compact profile fits into the most space-constrained assemblies.
DKFL HK 1212 Technical Specifications
| Product Type | Drawn Cup Needle Roller Bearing (Open Ends) |
| Brand | DKFL (Industrial Standard Grade) |
| Shaft / Inner Diameter (Fw) | 12 mm |
| Outer Diameter (D) | 18 mm |
| Width / Length (C) | 12 mm |
| Roller & Cup Material | Through-Hardened GCr15 High-Carbon Chrome Steel |
| Cage Construction | High-Strength Precision Steel Retainer |
Why Experienced Technicians Choose DKFL HK 1212
Bearings may look similar from the outside, but real durability is in the metallurgical precision. Here is why the DKFL HK 1212 stands out on factory floors and repair workshops:
- Exceptional Space-Saving Profile: With an outer diameter of only 18 mm and a 12 mm bore, it delivers an ultra-thin cross-section, allowing engineers to downsize machinery housings and reduce overall equipment weight.
- Outstanding Radial Load Capacity: Because the internal cage holds multiple hardened needle rollers working in parallel, the radial load is evenly shared across numerous line contacts rather than concentrated on solitary points.
- High Rotational Speeds with Low Heat: DKFL's ultra-smooth roller surface finishes minimize internal rolling resistance, preventing thermal buildup during high RPM cycles and saving motor drive power.
- Rigid & Stable Operation: The high elastic modulus of the through-hardened alloy prevents roller deformation under momentary shock loads, ensuring zero shaft wobble and prolonged mechanical accuracy.
Where Does the HK 1212 Deliver Peak Performance?
Wherever rotational motion requires maximum load support inside tight structural pockets, the HK 1212 is the proven industrial choice:
- Automotive Transmissions & Clutches: Compact planetary gearboxes, steering linkages, starter drives, and fuel or oil pump shafts.
- Professional Power Tools: Cordless drills, impact drivers, circular saws, angle grinders, and reciprocating mechanisms.
- Industrial Textile & Printing Machinery: Guide rollers, feed mechanisms, and multi-roller transfer stations requiring tightly spaced shafts.
- Commercial & Home Appliances: Electric mixers, washing machine transmissions, and HVAC blower assemblies.
- Robotics & Automation Actuators: Articulated robotic joints, compact linear drive pivots, and precision servo gearheads.
Essential Installation Rules for Maximum Lifespan
Because drawn cup needle roller bearings have thin outer rings, proper fitting practice is essential to prevent distortion:
1. Use a Proper Pressing Mandrel: Never hit the bearing directly with a hammer or punch. Use a dedicated pressing tool or flat mandrel that evenly contacts the stamped end-face of the outer ring to push it squarely into the housing bore.
2. Generous Initial Lubrication: Needle bearings are typically shipped with a light rust-preventative oil coating. Always pack the roller assembly with high-quality lithium grease or suitable machinery oil before placing the unit into service.
3. Ensure Strict Shaft Alignment: Needle rollers require accurate parallel alignment. If the mating shaft is cocked or misaligned, stress concentrates on the roller edges, drastically reducing operating life.
4. Verify Shaft Hardness & Finish: When using the shaft surface directly as the inner raceway, ensure it is hardened (recommended 58–64 HRC) and ground smooth to prevent premature grooving or spalling.
Frequently Asked Questions (FAQ)
Can the DKFL HK 1212 handle axial (thrust) forces?
No. The HK 1212 is purely a radial bearing. It is engineered to carry perpendicular radial loads and must not be subjected to lateral or axial pushing forces.
Does the HK 1212 come with an inner ring?
Standard drawn cup needle bearings like the HK 1212 are designed to run directly on a hardened and ground 12 mm shaft. If your shaft is unhardened, a separate matching inner ring (such as an IR series sleeve) can be added.
What are the exact mounting dimensions needed for this bearing?
The bearing requires a 12 mm shaft diameter, an 18 mm housing bore diameter, and a minimum housing depth of 12 mm.
Power Your Equipment with Authentic DKFL Quality
When compact dimensions, high radial loads, and long-lasting durability are critical to your mechanical assemblies, trust the proven performance of genuine DKFL HK 1212 needle roller bearings. Contact KGICO today for direct wholesale inquiries, immediate stock availability, and dedicated technical assistance.
