DKFL 30313 Tapered Roller Bearing
In the world of machinery, not all components are created for the same mission. Some parts are built purely for ultra-high speeds (like the tiny ball bearings inside delicate precision tools), while others are engineered to stand ground against crushing weights and brutal shock loads. The DKFL 30313 Tapered Roller Bearing belongs firmly to the second category.
10060101406
Request a quote
Product Detail

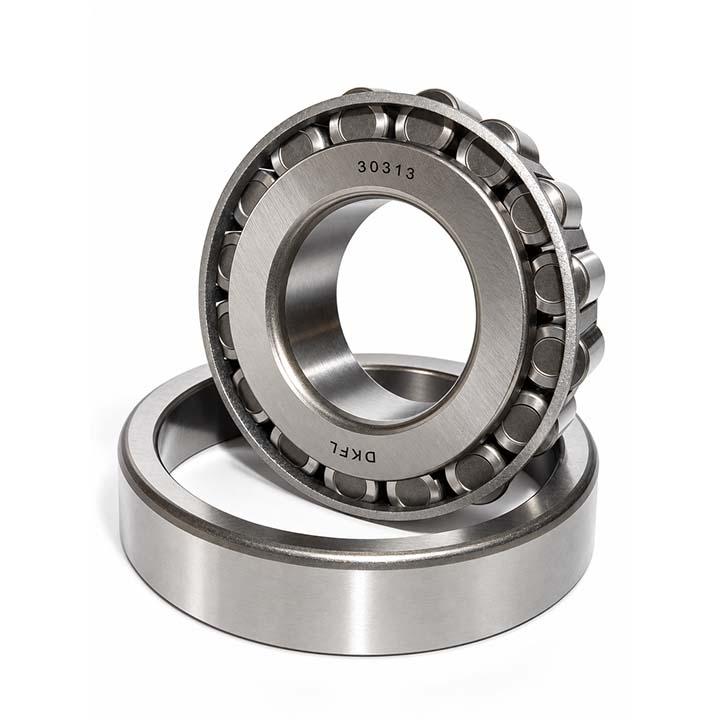

Heavy-Duty Tapered Roller Bearing DKFL 30313
A Solid Steel Support for Heavy Loads — Designed for Industrial Machinery and Heavy-Duty Vehicle Axles
1. When Strength Comes First: Why Choose the 30313?
In the world of mechanics, not every component is made for the same purpose. Some parts are designed for speed, such as the small ball bearings used in delicate equipment. Others are built to withstand crushing pressure and heavy loads. The DKFL 30313 Tapered Roller Bearing clearly belongs to the second category.
Imagine a heavy truck carrying a large load or a large industrial gearbox working continuously. Powerful forces can enter the internal components from several different directions at the same time. If a standard ball bearing is used in this situation, its internal components may fail under excessive pressure. However, the DKFL 30313 tapered roller bearing distributes these forces across its specially designed internal surfaces. Instead of giving in to heavy pressure, it manages and absorbs the load effectively. This makes it a dependable support for machines that cannot afford unexpected downtime.
2. The Advantage of the Tapered Design
The main difference between tapered roller bearings and standard ball bearings can be explained through two important features:
Tapered Rollers Instead of Spherical Balls
The spherical balls in standard ball bearings have a relatively small contact area. This means that heavy pressure is concentrated on a limited area. In the DKFL 30313, tapered rollers provide a larger contact surface. As a result, heavy loads are distributed more evenly across the rollers, helping the bearing operate reliably under demanding conditions.
Separable Design: Cone and Cup
This tapered roller bearing consists of two main parts: the cone, which includes the inner ring and rollers, and the cup, which is the outer ring. These parts can be installed separately on the shaft and inside the housing. This design makes installation, inspection, and maintenance easier for technicians.
Detailed Technical Specifications of the 30313 Bearing
| Parameter | Size | Practical Description |
|---|---|---|
| Bore Diameter (d) | 65 mm | The required shaft or axle diameter |
| Outer Diameter (D) | 140 mm | The space required inside the housing |
| Width (B/C/T) | 36 / 33 / 39 mm | The bearing dimensions and assembled width |
| Bearing Type | Single-Row Tapered | Suitable for combined radial and axial loads |
Why Is the DKFL 30313 a Smart and Economical Choice?
1. Ability to Handle Radial and Axial Loads
Many components are designed to carry only vertical or radial loads. However, because of its angled tapered rollers, the 30313 bearing can handle radial loads, which come from the weight of the machine, as well as axial loads, which act from the side along the shaft. This means that one tapered roller bearing can often perform the work that would otherwise require several separate components.
2. Adjustable Internal Clearance and Preload
Unlike many standard ball bearings, tapered roller bearings can be adjusted during installation. By tightening the shaft nut correctly, the technician can control the bearing clearance or preload. The goal is to eliminate excessive play without making the bearing too tight. Correct adjustment helps the bearing run smoothly and prevents unnecessary heat buildup.
3. Long Service Life in Demanding Conditions
The high-strength alloy steel used in DKFL bearings is designed to provide reliable performance under heavy loads. In environments with vibration, dust, or repeated impact, the DKFL 30313 can provide dependable service when it is correctly installed, lubricated, and maintained.
Main Industrial and Automotive Applications
The DKFL 30313 is suitable for applications where heavy loads, high torque, and reliable rotation are essential:
- Industrial Gearboxes: Where gears place significant loads on rotating shafts.
- Heavy-Duty Vehicle Wheel Axles: Used in trucks, buses, agricultural machinery, and tractors.
- Construction and Road-Building Equipment: Including loaders, excavators, and asphalt rollers.
- Large Conveyor Systems: Used in production lines, steel plants, stone-cutting facilities, and heavy industries.
Installation Tips for Longer Bearing Life
Installing a tapered roller bearing requires accuracy and care. A few simple details can have a major effect on the service life of the bearing.
- Do Not Mix Unmatched Components: The cone and cup are designed to work together as a matched bearing set. Do not combine the cone from one bearing with the cup from another brand or model. Mixing unmatched components can cause noise, overheating, premature wear, and early bearing failure.
- Adjust the Preload Correctly: This is one of the most important installation steps. Tighten the shaft nut gradually until excessive play is removed, while ensuring that the bearing can still rotate smoothly. The bearing should not feel tight or locked. Always follow the equipment manufacturer's recommended adjustment procedure and torque specifications.
- Use Suitable Lubrication: Apply a high-quality grease that is compatible with the operating temperature, load, speed, and working environment. Because tapered roller bearings have a larger contact area, proper lubrication is essential for reducing friction and preventing overheating.
Frequently Asked Questions
1. Can the DKFL 30313 replace a 30313 bearing from another brand?
In many applications, yes. The number 30313 identifies a standardized bearing size and design. If the equipment specifically requires a 30313 bearing and the dimensions, load capacity, and operating conditions are compatible, the DKFL 30313 can be used as a replacement. Always compare the manufacturer's specifications before installation.
2. Why is my tapered roller bearing overheating?
The most common causes are excessive preload, incorrect adjustment, insufficient lubrication, unsuitable grease, contamination, or misalignment. If the shaft nut is tightened too much, the bearing may rotate under excessive pressure and generate heat. Inspect the installation and follow the correct adjustment procedure before continuing operation.
3. Is the 30313 suitable for high-speed applications?
The DKFL 30313 is primarily designed for carrying heavy radial and axial loads rather than extremely high rotational speeds. For applications that require very high speed, a suitable ball bearing may be more appropriate. For heavy loads, high torque, and demanding mechanical conditions, a tapered roller bearing is often the better choice.
Need the Right Bearing for Your Machine?
Order the DKFL 30313 tapered roller bearing from KGICO and choose a reliable solution for heavy-duty industrial and automotive applications.
Contact Our Sales Team
