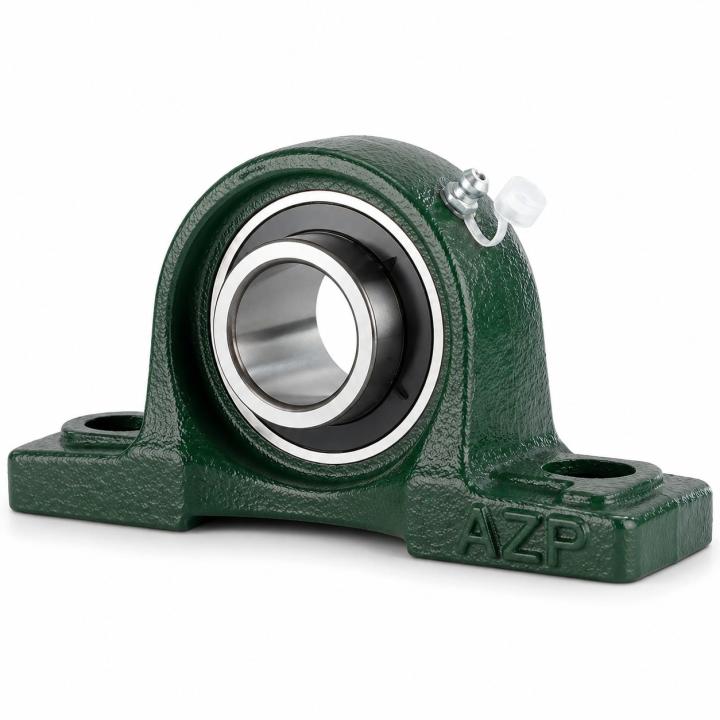

AZP UCP 207 Pillow Block Unit
The AZP UCP 207 is a fully integrated mechanical unit consisting of two precisely matched components designed for immediate, secure installation: Cast Iron Housing (P207): Manufactured from high-strength cast iron with a machined spherical concave seat. Includes mounting slots for stable attachment to the machinery frame and a brass grease nipple for efficient lubrication maintenance. Self-Aligning Insert Bearing (UC207): A deep-groove ball bearing with a convex spherical outer ring and an extended inner ring. It locks onto the 35mm shaft using two hardened set screws positioned at 120-degree intervals.
10022020003
MOQ: 1
Request a quote

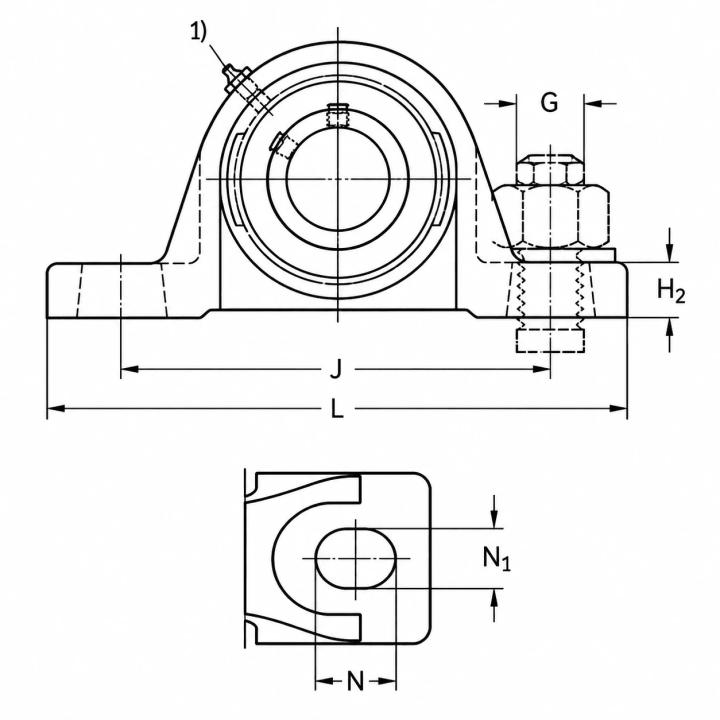

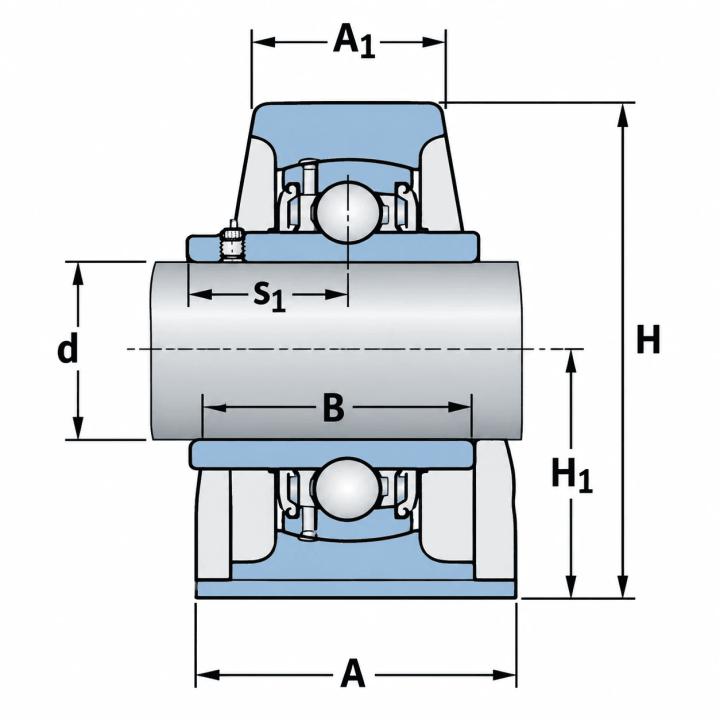

product dimensions
- Weight: 2,330.00 g
Product Detail
AZP UCP 207 Pillow Block Unit Heavy-Duty 35mm Bore | P207 Cast Iron Housing | UC207 Insert Bearing
The AZP UCP 207 pillow block unit is a robust, pre-assembled mechanical system engineered for reliability. Combining a durable cast iron housing with a high-precision self-aligning insert bearing, it is designed to handle heavy radial loads, impact vibration, and continuous operation in demanding industrial environments.
Anatomy and Technical Components of AZP UCP 207
The AZP UCP 207 is a fully integrated mechanical unit consisting of two precisely matched components designed for immediate, secure installation:
- Cast Iron Housing (P207): Manufactured from high-strength cast iron with a machined spherical concave seat. Includes mounting slots for stable attachment to the machinery frame and a brass grease nipple for efficient lubrication maintenance.
- Self-Aligning Insert Bearing (UC207): A deep-groove ball bearing with a convex spherical outer ring and an extended inner ring. It locks onto the 35mm shaft using two hardened set screws positioned at 120-degree intervals.
Self-Alignment Capability: The spherical interface between the P207 housing and the UC207 insert accommodates angular shaft misalignment of ±2° to ±3°. This technical feature neutralizes stresses from structural inaccuracies, ensuring smooth rotation and protecting the raceways from premature fatigue.
Metallurgy, Construction, and Sealing
- 100Cr6 Alloy Steel (AISI 52100): All internal components (rings and balls) are manufactured from high-carbon chromium alloy steel, heat-treated to 60-62 HRC for exceptional wear resistance and fatigue life.
- Dual Sealing System (Flinger Seal): Features a nitrile rubber (NBR) contact seal paired with a rotating metal flinger shield. Centrifugal force effectively repels abrasive dust, debris, and moisture from the bearing interior.
- Dense Cast Iron (HT200): The housing is cast with a high-density, fine-grain structure to provide superior vibration dampening and thermal stability under mechanical stress.
Core Industrial Applications
The 35mm bore size is a critical standard for medium-to-heavy torque applications. AZP UCP 207 is widely utilized across:
- Conveyor Systems: Essential for drive and idler drums in packaging, cement, and material handling lines.
- Agricultural Machinery: Power transmission in harvesters, balers, and heavy irrigation pumps.
- Industrial Fans & Blowers: Shaft support for high-flow ventilation and industrial exhaust systems.
- Recycling & Crushing: Continuous shaft support in abrasive, dust-prone processing environments.
Critical Installation Protocols & Warnings
Step 1: Slide the bearing onto a clean, burr-free shaft. Fasten housing base bolts loosely to allow for natural self-alignment.
Step 2: Tighten housing base bolts to the specified torque rating uniformly.
Step 3 (Final): Tighten the two set screws on the inner ring alternately.
Critical Warning: Tightening the set screws *before* securing the housing base induces axial pre-load, which can cause the bearing to overheat and seize prematurely.
Never use a steel hammer directly on the inner ring, outer ring, or seal shield. Impact creates micro-cracks in the hardened 100Cr6 steel, deforms the shield, and can fracture the housing base. Always use a soft-face mallet or a sleeve tool.
- Shaft Tolerance: Recommended shaft tolerance for 35mm is h7 or js7. Surface unevenness of the mounting foundation should not exceed 0.1mm to avoid stressing the housing feet.
- Lubrication Management: The unit comes factory-lubricated. During periodic maintenance, inject only a small amount (1-2 pumps) of fresh grease. Over-greasing can push out the seal and cause temperature spikes.
Sourcing and Authenticity via KGICO
Kamyar Gostar Iranian (KGICO) is a specialist supplier of power transmission components. We provide genuine AZP UCP 207 pillow block units with full metallurgical authenticity certification, dimensional QC assurance, and traceability for industrial manufacturers and plant maintenance departments.
