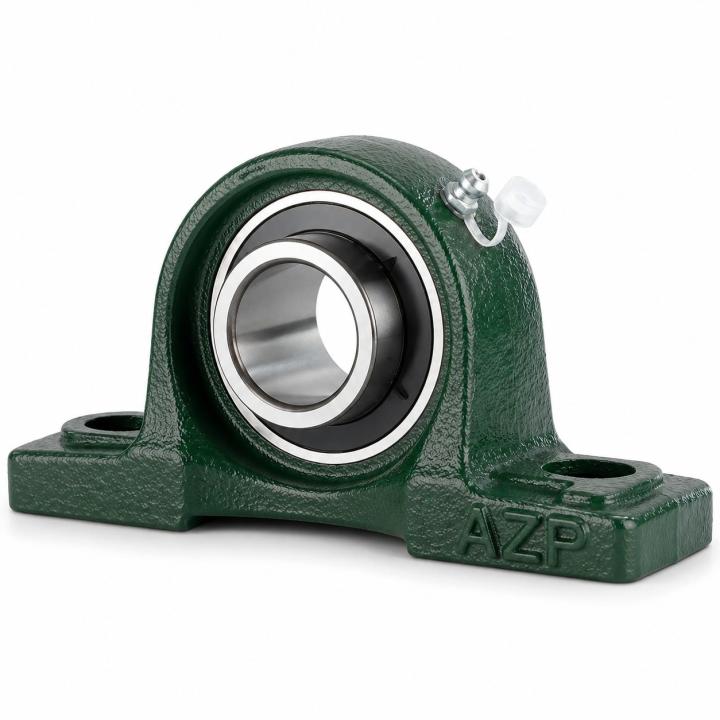

AZP UCP 208 Pillow Block Unit Industrial Standard 40mm Bore | P208 Housing | UC208 Insert Bearing
The AZP UCP 208 is a reliable, pre-assembled pillow block unit engineered for 40mm shafts. Combining a durable cast iron housing with a precision self-aligning bearing, it offers consistent performance and robust load-bearing capabilities for continuous industrial applications.

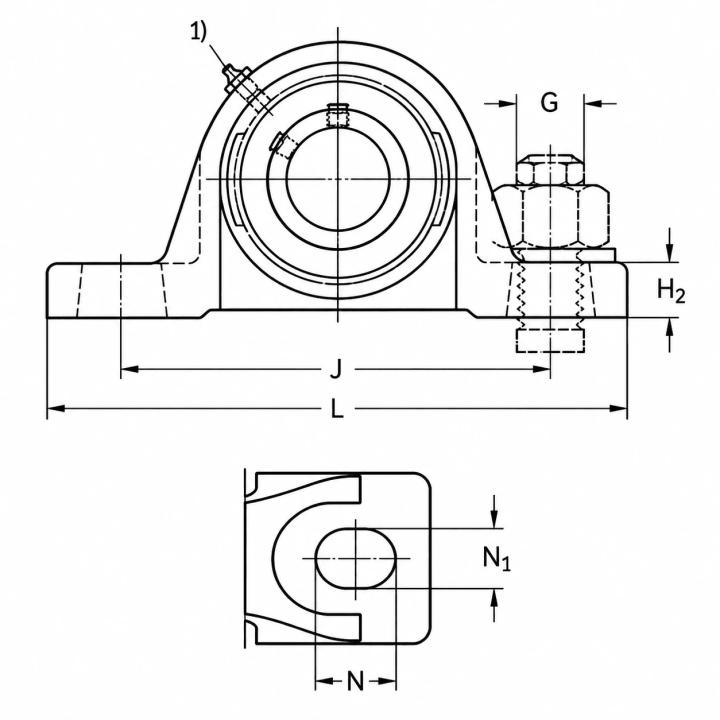

Anatomy and Technical Components of AZP UCP 208
The AZP UCP 208 is built to international ISO/JIS dimensional standards, ensuring full interchangeability. It consists of two precisely matched components:
- Pillow Block Housing (P208): Constructed from robust grey cast iron, featuring a precision-machined spherical concave seat, standard slotted bolt holes for easy adjustment, and an integrated grease nipple for efficient maintenance.
- Self-Aligning Insert Bearing (UC208): A high-capacity deep-groove ball bearing for 40mm shafts. It features a convex spherical outer ring and an extended inner ring secured by two hardened 120-degree set screws for stable shaft locking.

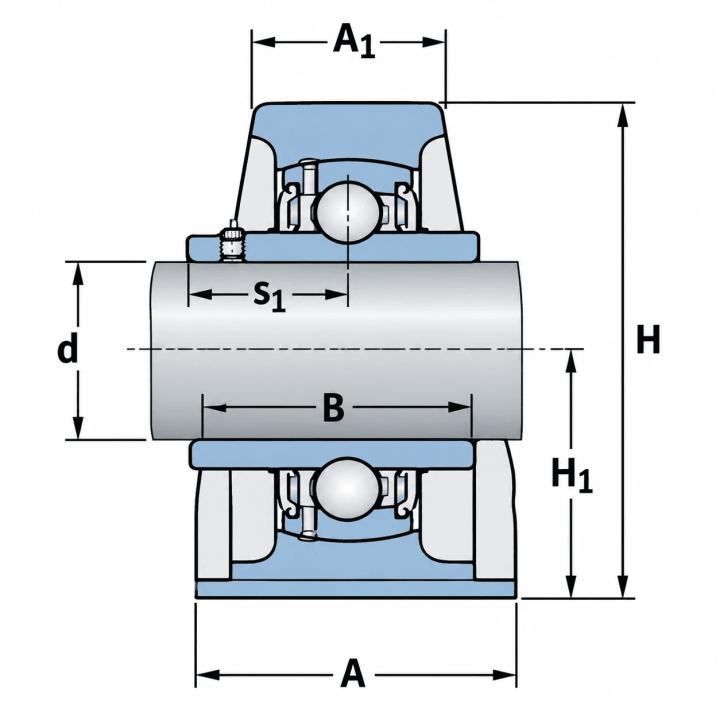

Self-Alignment Capability: The spherical interface between the housing and the insert allows the unit to compensate for static and dynamic angular misalignment (up to ±2°). This protects the raceways from edge-loading caused by shaft deflection or foundation irregularities, ensuring a smoother rotation.
Metallurgy, Sealing, and Performance
- 100Cr6 Bearing Steel (AISI 52100): The rolling elements and rings are manufactured from high-carbon chromium steel, heat-treated to 60-62 HRC, providing exceptional resistance to surface wear and Rolling Contact Fatigue (RCF).
- Dual Sealing System: Equipped with a nitrile rubber (NBR) contact seal and a metal flinger shield. This design creates centrifugal force to repel dust, industrial debris, and moisture, while retaining high-quality lithium grease.
- Vibration-Dampening Cast Iron: The housing structure is engineered to naturally absorb and neutralize high-frequency vibrations generated by rotating machinery, thereby extending the overall service life of the transmission system.
Core Industrial Applications
The 40mm bore size is a staple in mid-to-heavy industrial torque transmission. The AZP UCP 208 provides dependable support in:
- Conveyor Systems: Drive and idler drums in packaging, food processing, steel production, and aggregate handling.
- Agricultural Machinery: Main shafts for harvesters, tractors, rotary tillers, and grain milling equipment.
- Industrial Ventilation: High-capacity centrifugal fan shafts, blowers, and workshop air handlers.
- Processing & Forming: Roll forming lines, printing machinery, and light rolling mills.
Critical Installation Protocols & Warnings
Step 1: Mount the bearing on a clean, polished shaft. Tighten base bolts loosely to the foundation to allow the unit to self-align.
Step 2: Securely tighten the housing base bolts to the torque specifications.
Step 3 (Final): Tighten the two set screws on the inner ring alternately and evenly.
Critical Warning: Never tighten the set screws before securing the housing base. Doing so induces axial stress on the rings, which often leads to immediate overheating and bearing seizure.
Avoid striking the cast housing or bearing rings directly with steel hammers. Direct impacts can fracture the housing, deform the seal, or create micro-cracks in the 100Cr6 steel race. Always use a rubber/soft-face mallet or a proper sleeve tool.
- Tolerance & Surface Prep: Recommended shaft tolerance is h7 or js7. Ensure the mounting foundation is perfectly flat to prevent inducing bending moments into the housing feet.
- Lubrication Management: The unit is factory-lubricated. During maintenance, inject fresh grease sparingly (1-2 pumps only). Over-greasing increases operating temperatures and can blow out the seal lips.
