Product Detail

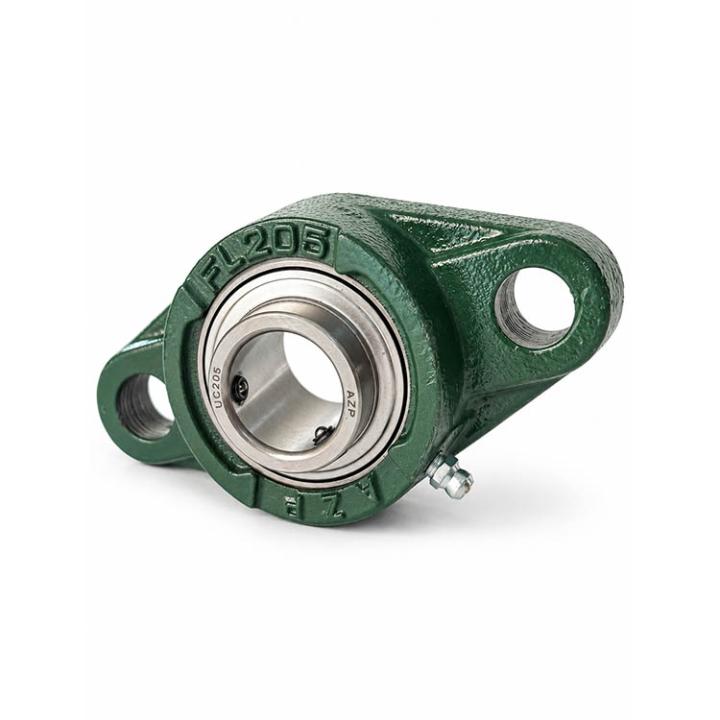

AZP UCFL 205 UCFL Pillow Block Units
Smooth Motion & Structural Stability in Confined Mechanical Spaces
Why Choosing the Right Flange Unit Matters
In any rotating mechanical assembly, the mounted bearing unit serves a critical function: securing shafts rigidly in place while ensuring continuous rotation with minimal friction and energy loss. However, machine builders often face space constraints where bulky four-bolt square flange units or standard pillow blocks cannot fit due to narrow side frames or tight clearance. That is precisely where the AZP UCFL 205 UCFL Pillow Block Unit excels.
Engineered with a streamlined, compact profile, this unit delivers maximum structural integrity while occupying minimal mounting real estate. AZP has struck an optimal balance between housing weight and mechanical strength, making the UCFL 205 one of the most reliable and widely adopted flange units across light to heavy industrial operations.
Understanding the UCFL 205 Flange Unit
The nomenclature directly highlights its core design: "UCFL" represents a two-bolt oval/rhombic cast-iron flange housing mounted with a deep groove insert ball bearing (UC series). The "205" designation identifies its engineering match for 25 mm (2.5 cm) metric shaft diameters.
A key engineering advantage of this unit is its spherical outer-ring self-aligning capability. The spherical mating surface between the bearing insert and the cast housing compensates for initial static shaft misalignments or slight frame deflections during load cycles. Instead of jamming, binding, or inducing dangerous internal preload, the unit self-adjusts seamlessly—protecting both shaft and drive components from premature failure.
Key Technical Specifications
| Shaft / Bore Diameter | 25 mm (Metric) |
| Mounting Configuration | 2-Bolt Oval/Rhombic Flange |
| Housing Material | Heavy-Duty Cast Iron (Shock-Resistant) |
| Brand | AZP (Verified Industrial Quality) |
| Relubrication Facility | Equipped with Standard Grease Zerk Fitting |
Core Benefits of the AZP UCFL 205
1. Space-Saving Diamond Profile
Installing a 4-bolt square flange in tight spaces with limited wrench access is often frustrating and time-consuming. The streamlined 2-bolt diamond shape of the UCFL 205 allows clean installation along machine walls, structural uprights, and tight frame rails. Two inline mounting bolts deliver fast alignment and dependable clamping force.
2. Angular Misalignment Compensation
Shafts subject to variable loading or dynamic torque pulses rarely remain dead true. Rigid bearing mounts cause binding and excessive heat build-up when shafts deflect even by a fraction of a millimeter. The spherical internal seating of the AZP UCFL unit absorbs these minor angular offsets, preventing excessive raceway stress and safeguarding system uptime.
3. Proven AZP Casting & Machining Standards
The robust gray cast-iron housing absorbs severe shock and cyclical vibration without cracking. Inside, the precision-honed steel bearing balls and raceways deliver ultra-smooth rotation and reduced noise, offering a dependable, cost-effective fit-and-forget solution for plant maintenance.
4. Effective Sealing Against Contaminants
Industrial production lines generate dust, moisture, and debris. AZP protects the bearing core with contact rubber seals backed by metal flingers. This dual barrier locks out abrasive contaminants while keeping the internal lubricant securely contained within the raceway chamber.
5. Easy Relubrication Access
Factory sealed with premium bearing grease, this unit also features a standard grease nipple on the housing. Routine maintenance teams can easily inject fresh grease during planned service intervals, purging out degraded lubricant and dramatically prolonging bearing life.
Essential Installation & Maintenance Tips
- Clean Mounting Surfaces: Thoroughly remove paint drips, scale, burrs, and chips from the mounting surface before bolting. Uneven contact causes housing distortion and premature bearing failure.
- Torque Fasteners Evenly: Tighten mounting bolts alternately in increments. Uneven bolt torque can twist the housing base and pinch the internal insert.
- Avoid Over-Greasing: Excessive lubrication increases internal fluid drag, resulting in elevated operating temperatures and blown seal lips. Inject only recommended amounts at planned intervals.
- Monitor Operating Temperature: If housing temperature rises abnormally high during initial run-in, halt operation immediately to check shaft straightness, set-screw tightness, and bearing alignment.
Industrial Applications
The versatile UCFL 205 unit is widely implemented across numerous sectors:
Frequently Asked Questions
Is the UCFL 205 interchangeable with other flange bearing brands?
Yes. The UCFL 205 complies with ISO and JIS standard mounting dimensions (bolt hole spacing and 25 mm bore diameter), making it an exact drop-in replacement for equivalent models from SKF, NSK, FYH, or Asahi.
Can this unit handle severe washdown or water immersion?
The factory contact seals protect against standard moisture and dust. For submerged setups or aggressive chemical washdowns, we advise choosing stainless-steel or thermoplastic housing units.
How is the bearing locked onto the shaft?
The inner ring extends on one side and features two hardened grub/set screws set at 120 degrees to firmly clamp onto the 25 mm shaft without slippage.
Order Genuine AZP UCFL 205 Flange Units Today
Reliable industrial durability, competitive pricing, and swift delivery—KGICO supplies authentic power transmission components you can trust. Contact our technical sales team for quotations and bulk order inquiries.
