AZP UCFC 205 Pillow Block Unit

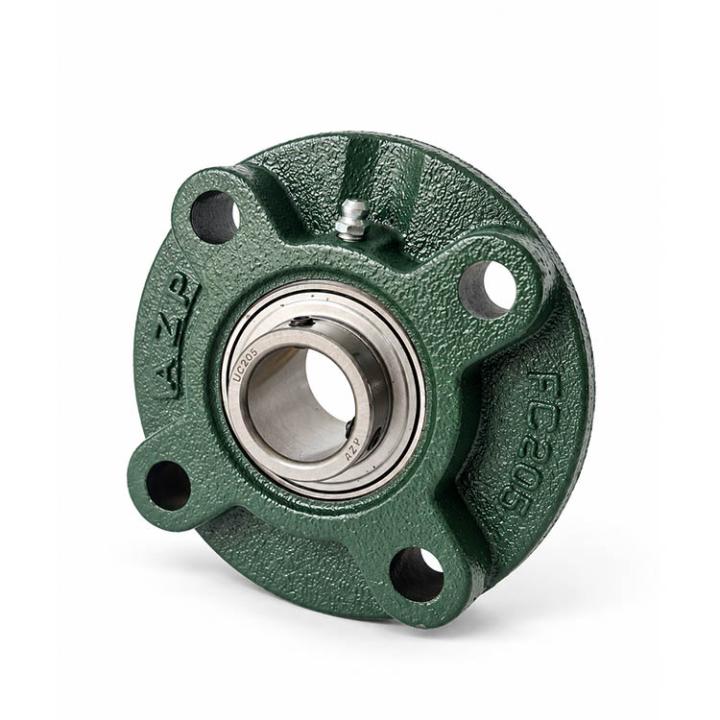

The AZP UCFC 205 bearing unit consists of an insert bearing (UC205) and a round cast iron flanged housing with four mounting bolt holes. This geometric design allows the unit to be mounted vertically or parallel to the machine wall, efficiently transferring radial and axial loads to the supporting structure.
10022020085
Request a quote
Product Detail
Four-Bolt Round Flanged Bearing Unit AZP UCFC 205 Round Flange Housing | 25 mm Shaft Bore | High Stability for Surface Mounting
The AZP UCFC 205 four-bolt round flanged bearing unit features a robust round flanged housing, offering a reliable and rigid solution for mounting on machinery walls and frames, supplied by Kamyar Gostar Iranian Co. (KGICO).
Technical Overview of AZP UCFC 205 Flanged Bearing
The AZP UCFC 205 bearing unit consists of an insert bearing (UC205) and a round cast iron flanged housing with four mounting bolt holes. This geometric design allows the unit to be mounted vertically or parallel to the machine wall, efficiently transferring radial and axial loads to the supporting structure.
Set screws located on the inner ring of the bearing ensure secure and easy locking onto the shaft. Furthermore, the self-aligning feature of this assembly helps compensate for minor shaft misalignment errors, preventing premature wear and tear.
Designation & Structural Analysis (UCFC 205)
Prefix "UC": Indicates an insert bearing with an extended inner ring and two set screws for shaft locking.
Suffix "FC": Denotes a round flange cartridge housing with four bolt holes for secure attachment to industrial machinery frames.
Size "205": Indicates a 25 mm bore diameter (standard shaft size).
AZP Brand: Manufactured to reliable quality standards, offering robust metallurgy and dependable performance in power transmission equipment.
Distribution & Support: Supplied by Kamyar Gostar Iranian Co. (KGICO) with guaranteed authenticity and quality.
Technical Specifications & Dimensional Data
| Shaft Bore (d) | Round Flange Dia | Bolt Holes | Dynamic Load (Cr) | Static Load (C0r) | Housing Material | Locking Type | Approx. Weight |
|---|---|---|---|---|---|---|---|
| 25 mm | 95 mm (PCD) | 4 pcs | ~14.0 kN | ~7.88 kN | High-Grade Cast Iron | Set Screw | ~0.75 kg |
Key Features & Competitive Advantages of AZP UCFC 205
Four-Bolt Round Flange Design
Even load distribution across mounting surfaces and exceptional stability against rotational torques.
Self-Aligning Capability
Reduces stress caused by minor shaft deflections using the spherical outer surface of the insert bearing.
Easy Installation & Locking
Equipped with socket set screws for fast and secure fastening onto the 25 mm shaft.
Efficient Sealing
Complete protection against dust ingress and internal grease retention using dual reinforced seals.
Rigid & Durable Cast Iron Housing
Constructed from high-quality cast iron offering excellent resistance to continuous vibrations and mechanical shocks.
Trusted AZP Brand
Ensuring long-term durability and cost-effective operation across industrial projects with KGICO support.
Common Industrial Applications
- Material Handling & Conveyor Systems: Mounted on side frames for smooth roller rotation.
- Packaging & Carton Machinery: Stability in light-to-medium power transmission shafts.
- Industrial Fans & Blowers: Mounted on flat housings to support impeller shafts.
- Food Processing & Agricultural Equipment: Reliable operation in product processing and packaging lines.
- Textile & Printing Equipment: High precision and low vibration at specified operating speeds.
Installation Guidelines & Engineering Recommendations
When mounting the flange to the surface, tighten the bolts in a cross pattern (diagonal) to evenly distribute pressure on the cast iron housing and prevent stress and cracking.
Tighten the socket set screws on the inner ring to the recommended torque to prevent shaft slippage; over-tightening may distort the inner ring geometry.
Periodic Lubrication
These bearing units are equipped with a grease fitting (grease nipple). Depending on operating and environmental conditions, perform periodic re-greasing with compatible grease to extend the service life.
Frequently Asked Questions (FAQ)
1. What is the difference between UCFC and two-bolt flanged bearings (UCFL)?
The UCFC model features a round flange with four mounting bolt holes, providing a more secure attachment and better load distribution on flat walls compared to two-bolt (UCFL) models.
2. What shaft diameter is suitable for the AZP UCFC 205 bearing?
The designation number '205' indicates a 25 mm bore diameter; therefore, this unit is specifically designed for 25 mm shafts.
3. Does this bearing unit have self-aligning capabilities?
Yes, the insert bearing features a spherical outer surface that rotates within the housing, easily accommodating minor shaft misalignments.
Inquire & Purchase AZP UCFC 205 Bearing Unit
Contact the engineering and sales experts at Kamyar Gostar Iranian Co. (KGICO) for stock availability, wholesale price lists, and technical consultation.
Inquire & Order at kgico.co
