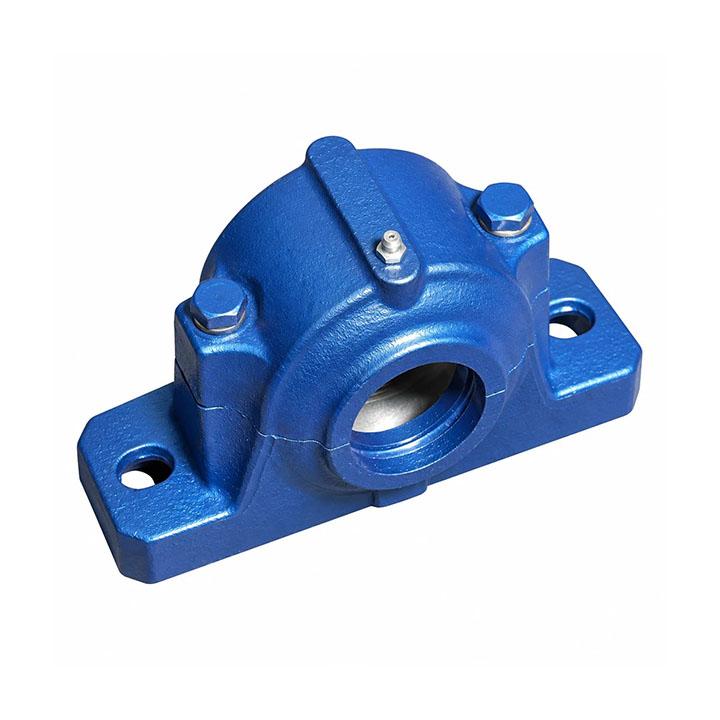

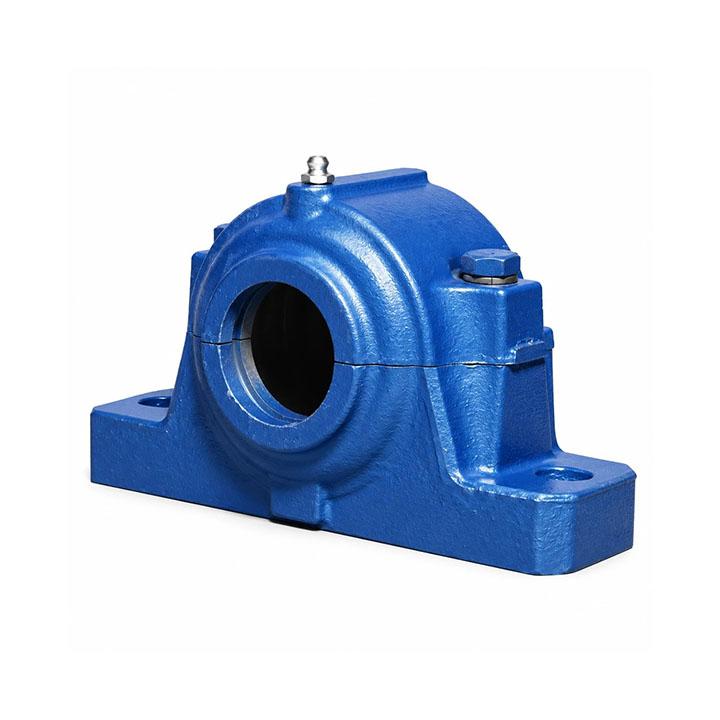

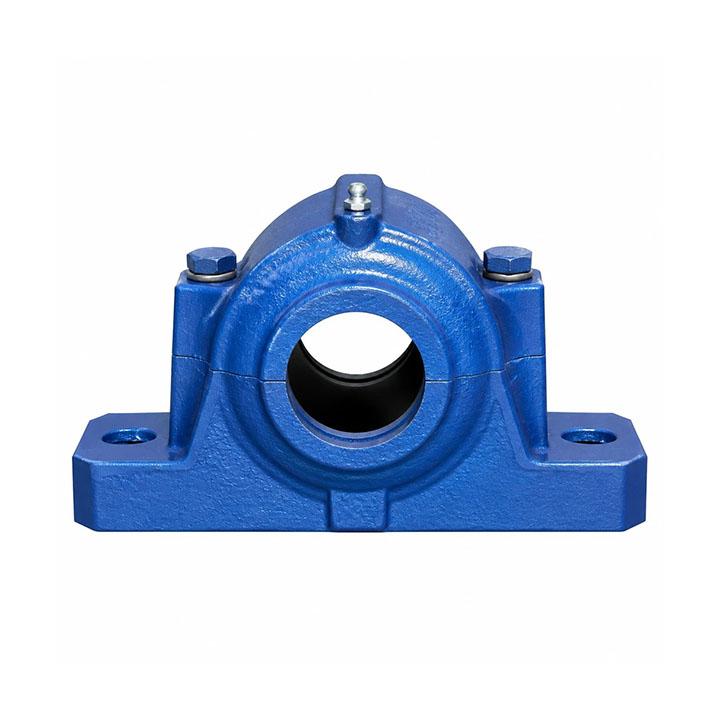

H&K SN 508 Industrial Split-Type Pillow Block
Stable and precise support for rotating shafts; stopping unnecessary vibrations and ensuring continuous production lines.
What is the SN 508 Bearing Housing and why is it vital for your machines?
In every industrial space—from a small machine shop to large manufacturing plants—the backbone of most machinery consists of sturdy metal rods rotating at high speeds. In industry, we call these "shafts" or "axles." These rotating components are responsible for driving conveyor belts, spinning industrial fans, pulling pulleys, and transferring the power necessary for cutting, packaging, or material handling.
However, a metal shaft with significant weight and inertia cannot simply hang in the air or rest on a plain, dry surface. If metal-on-metal friction occurs, the continuous wear and intense heat will rapidly escalate, scoring the shaft surface and seizing the machine with a harsh screech. To allow these shafts to rotate smoothly without friction, you need a support structure housing a rolling element (bearing).
This is where the H&K SN 508 Split-Type Bearing Housing plays a critical role. Essentially, it is a highly precise, robust cast iron protective home. The internal bearing insert sits snugly within this housing, and the shaft rotates through it. The housing bolts securely to the machine frame, absorbing the shock and vibrations of the motor's rotation, preventing hidden tremors from forcing the shaft out of its perfect alignment.
Using an inferior housing is like building a skyscraper on loose sand. If the housing fails to dampen vibration, the delicate balls within the bearing will crush, grease will overheat and burn, and in the worst-case scenario, the shaft itself will bend. A bent shaft means expensive components destroyed and a complete production halt for days. The H&K SN 508 is engineered to be that stable foundation, protecting your peace of mind and production schedule.
Goodbye to Heavy Maintenance Hassles: The Split-Type Miracle
If you have maintenance experience, you likely remember older "solid" or one-piece bearing housings. They acted like a closed pipe without a lid. To clean inside, refill grease, or replace a worn bearing, you had no choice but to tear down a large section of the machine. Belts, pulleys, gears, and heavy attachments had to be forced off—often with heavy tools and hammers—just to pull the shaft out of the housing ring.
This exhaustive process drained your maintenance team's energy and burned through golden production hours; a simple inspection could paralyze a full shift. But the H&K SN 508 split-type bearing has revolutionized this time-consuming routine.

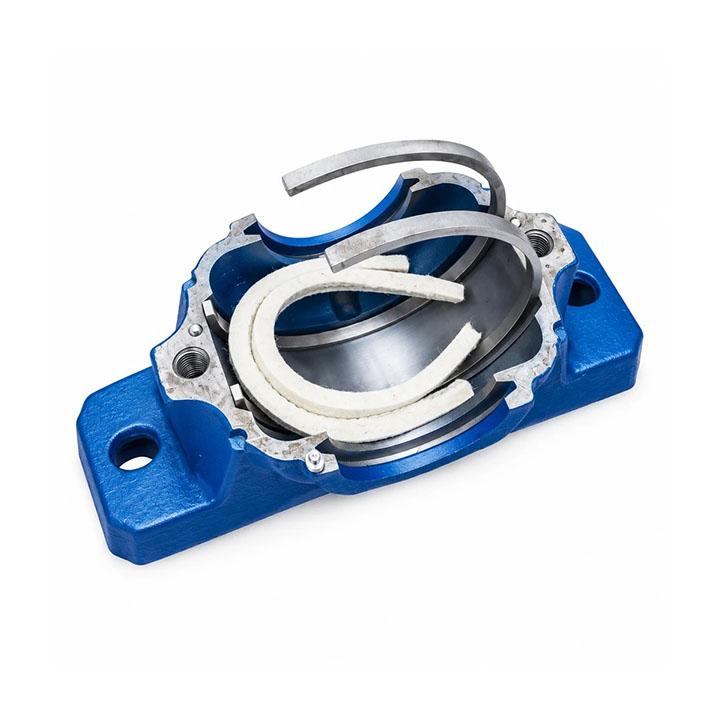

This bearing consists of two independent halves: a base that bolts firmly to the machine frame, and a "cap" that secures onto the base with two long bolts. Together, they form the protective shell for the bearing.
When the time for monthly inspections, re-greasing, or bearing replacement arrives, you don’t need to touch the shaft, remove belts, or disassemble the motor. Simply loosen the two cap bolts with a standard wrench and lift the lid. All internal components, balls, and the grease status are revealed directly before your eyes. You can clean, inspect, or swap the insert without moving the shaft a single millimeter. What once took half a day now finishes quickly and easily.
Unmatched Service Speed
By simply removing the cap, you have direct access to the heart of the bearing, eliminating the need to remove shafts or pulleys.
Damping & Noise Reduction
The thickness of the SN 508's cast iron body absorbs fine vibrations from motor movement, significantly lowering workshop noise pollution.
Superior Dust Protection
The housing's side grooves are designed to lock seals firmly in place, preventing powdery dust and environmental debris from entering.
Why do experienced industry pros trust H&K?
Heavy-Duty Cast Iron; Resistance to Sudden Fracture
To the naked eye, all painted housings might look identical on a shelf. But true value lies in the casting quality and metal composition. Cheap, unbranded parts are often made from low-grade scrap iron, riddled with air pockets and weak spots. One sudden shock, or a technician tightening a bolt a bit too much, is all it takes for the housing to develop hairline cracks and shatter. H&K SN 508 is cast from premium, solid grey iron, providing a dense structure that resists deformation and fracturing under load.
Precision Machined Seats for Perfect Alignment
The seat inside the housing where the bearing sits is the most sensitive area. Even a fraction of a millimeter of unevenness or ovality will force the bearing to sit crooked. This leads to localized stress, causing the balls to fail in record time. H&K housings are machined to perfection, ensuring the bearing sits flat, level, and secure, allowing the shaft to spin without any wobble.
Industry-Standard Compatibility for Direct Swaps

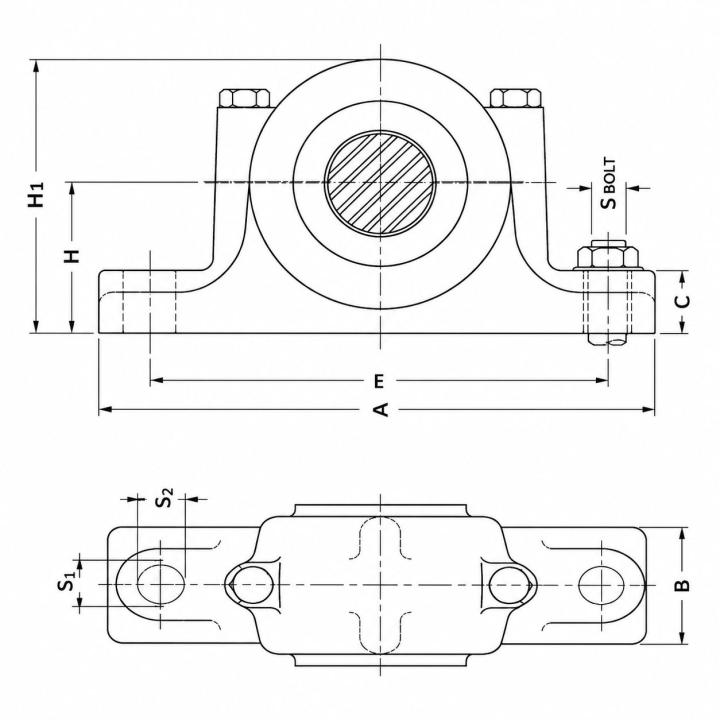

No manager wants to halt production to drill new mounting holes or weld the chassis. H&K SN 508 is manufactured to standard industrial dimensions. The bolt-hole spacing, base width, and center height are universal. If your old housing fails, you can remove it and bolt the H&K unit in its place instantly, without any chassis modifications.
Applications of H&K SN 508
The SN 508 is a highly versatile mid-size bearing housing. It strikes the perfect balance between compact dimensions and heavy-load bearing capacity, making it a staple in various industries:
- Conveyors: Stable support for drive rollers and idlers in material handling and sorting lines.
- Ventilation Fans: Maintaining the axis for industrial exhaust fans, blowers, and furnace circulation fans.
- Packaging Machinery: Guiding shafts for plastic film rolls, bottle/can conveyor belts, and labeling machines.
- Woodworking Machines: Supporting shafts in table saws, edge banders, and roller conveyors.
- Agricultural Processing: Used in grain elevators, pulse cleaners, fodder choppers, and flour augers.
- Mixers: Supporting shafts for industrial liquid mixers, paint blenders, and semi-industrial stirrers.
Wherever you have a rotating shaft requiring a quiet, sturdy, and well-protected foundation, the SN 508 is a proven, reliable choice.
Practical Tips to Maximize Bearing Life
Good housing design is only half the battle; the rest depends on how you install and care for it. Follow these simple rules to extend the life of your bearings:
- Clean and Level the Mounting Surface: The mounting base must be clean and uniform. Weld burrs, dirt, or dried paint can warp the cast iron housing when you tighten the bolts, leading to premature bearing failure.
- Balanced Tightening: Never tighten one cap bolt fully before the other. Tighten both bolts gradually and in parallel to ensure the cap sits perfectly level on the base.
- Moderate Lubrication: Over-greasing is a common mistake. Filling the housing completely creates excessive friction, overheating, and pressure that blows out the seals. Filling one-third to one-half of the empty volume is ideal.
- Check Seals and Felt: The seals protect the bearing from abrasive dust. Inspect them regularly to ensure they aren't brittle, cracked, or missing.
- Listen and Feel: A healthy bearing runs quietly and smoothly. Grinding noises, metallic knocking, or excessive heat are red flags. Stop and inspect immediately if these occur.
Frequently Asked Questions
1. What is included in the package?
The package includes the two-piece housing (base and cap) along with the cap bolts. Since the bearing insert, adapter sleeves, and seals depend on your specific shaft diameter and application, these components are selected and supplied separately.
2. Do I need to disassemble the housing to add grease?
No, the H&K SN 508 features a standard grease nipple port on top of the cap. You can inject fresh lubricant to the center of the bearing without stopping the machine for long periods or loosening any bolts.
3. What distinguishes H&K from cheaper alternatives?
The difference lies in the purity of the cast iron, material weight, and precision machining of the inner seat. Inferior parts lead to constant vibration and rapid wear, whereas H&K housings ensure stability and longevity.
4. How can I confirm the SN 508 is right for my machine?
Check the model number stamped on your old, worn housing. If it says SN 508 or equivalent, it is a direct match. You can also consult with KGICO's technical experts by providing your shaft diameter.
