Industrial Split Pillow Block Housing H&K SN 510
A rugged shield for rotating shafts; smooth, reliable, and nonstop performance across all workshops and production lines
What is the SN 510 Bearing Housing and Why Does Your Workshop Rely on It?
Step into any machine shop, processing plant, or assembly hall, and you immediately feel the steady hum of mechanical power. At the center of all this nonstop motion are cylindrical steel shafts driving essential processes day and night. These shafts spin tirelessly to drive conveyor rollers, power large ventilation blowers, turn mixer paddles, and ultimately keep your business productive. Yet turning at continuous operational speeds under heavy physical loads leaves no room for error: even minor shaft play, misalignment, or harsh vibration can quickly bring an entire production setup to a sudden halt.

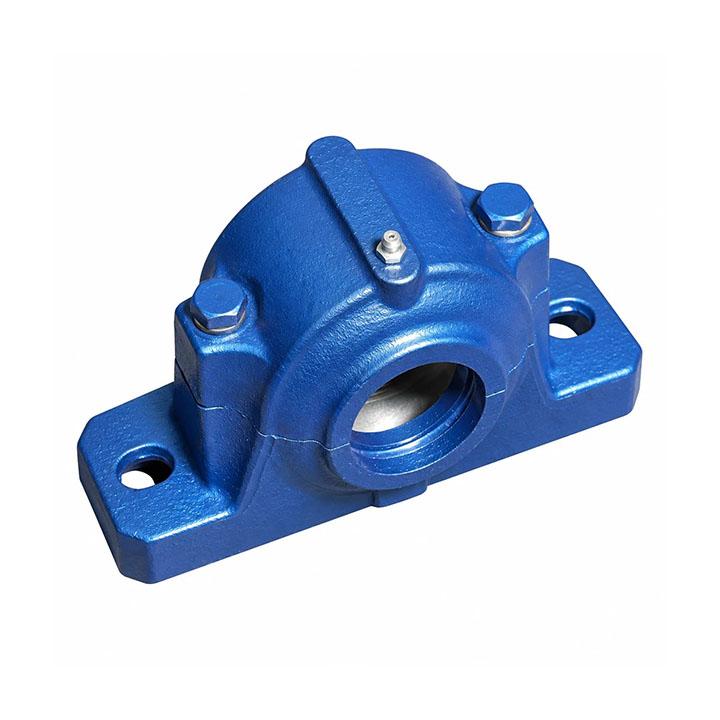

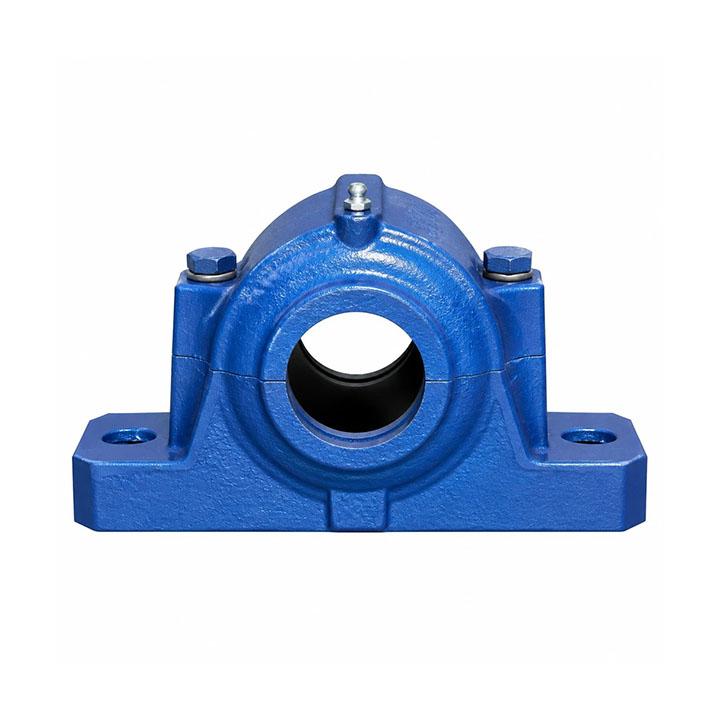

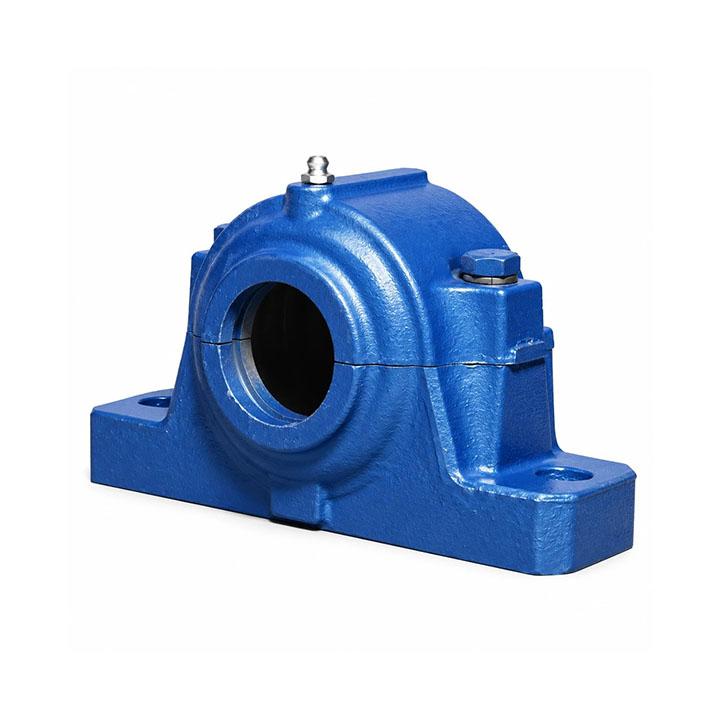

This is where an essential industrial workhorse steps in: the H&K SN 510 Split Pillow Block Housing. This component is a heavy-duty, precisely cast iron enclosure designed specifically to seat, align, and protect rolling bearings while the central shaft spins smoothly through them. Put simply, the housing serves as an unwavering, vibration-absorbing foundation for the internal bearing. It neutralizes sudden shocks, carries dynamic mechanical loads, and ensures the shaft stays centered under continuous duty.
If rotating shafts are left unsupported or mounted inside flimsy, low-grade housings, aggressive running vibrations strike the precision rolling elements directly. These continuous impacts break down lubricant film, drive up frictional temperatures, crack bearing rings, and can permanently bend costly drive shafts. The well-regarded H&K SN 510 housing is built to prevent these breakdowns entirely. It creates an isolated, stable, and well-lubricated environment, helping your machines run quietly, efficiently, and trouble-free across long service intervals.
The Split-Housing Advantage: Putting an End to Maintenance Headaches
Every maintenance technician, plant supervisor, and workshop owner is familiar with the frustration of servicing older one-piece solid housings. With solid-ring housings, inspecting an internal bearing or changing worn seals required tearing down the entire drive section. Motors had to be unbolted, pulleys pulled, drive belts loosened, chain sprockets dismantled, and heavy shafts physically pulled free just to service a single bearing unit.
That drawn-out process easily burned through valuable work shifts, caused missed delivery deadlines, and resulted in high labor costs. The practical engineering of the H&K SN 510 Split Bearing Housing eliminates these maintenance bottlenecks for good.
The SN 510 housing splits horizontally into two precision-machined halves: a sturdy mounting base bolted securely to the machine frame or foundation, and a matching upper cap locked into place with heavy-duty cap bolts.
When routine service or bearing replacement is required, there is no need to tear apart adjoining mechanical drives. Technicians simply loosen the cap bolts and lift off the upper lid. The shaft and bearing assembly stay fully supported in position. You can inspect the raceways, wipe away contaminated grease, apply fresh lubricant, or swap out rolling elements in minutes. What once required an entire day of machine downtime can now be completed in under half an hour with basic hand tools.
Rapid Service Access
Inspect or service internal bearings simply by lifting the top cap—no need to dismantle pulleys, sprockets, or drive couplings.
Vibration & Noise Damping
Thick, high-grade cast iron dampens shaft harmonics and dynamic impacts, creating a noticeably quieter and smoother workshop environment.
Dependable Ingress Protection

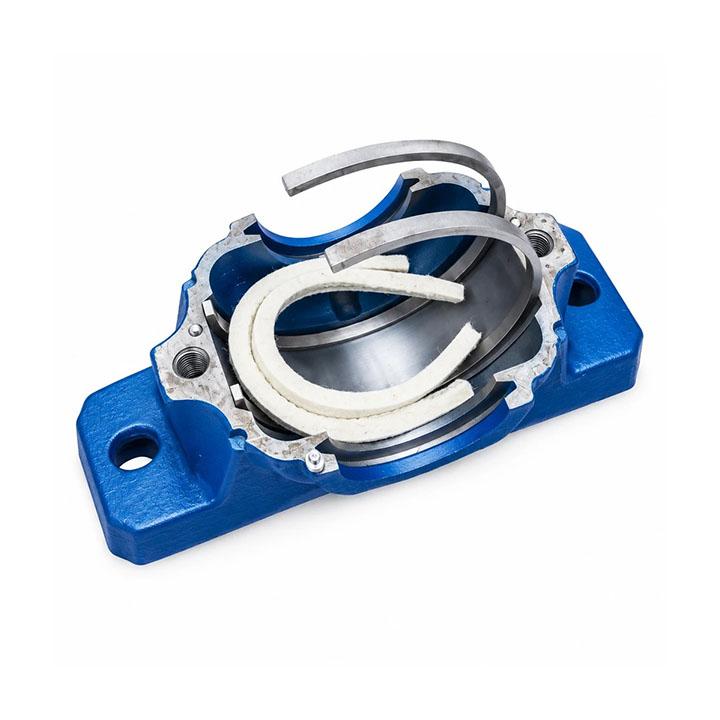

Precision sealing side grooves hold protective seals firmly in place, keeping abrasive sawdust, grit, and moisture away from clean grease.
Why Choose the H&K SN 510 Housing for Reliable Long-Term Performance?
Dense, High-Purity Cast Iron to Resist Cracking
While many cast iron housings look similar on the surface, internal material quality makes all the difference. Budget alternatives often rely on porous scrap iron filled with microscopic voids that crack under sudden thermal expansion or bolt torque. The H&K SN 510 is cast from high-density grey iron selected for its outstanding compressive strength and shock resistance. It handles both vertical and horizontal loads smoothly without deforming under tough factory conditions.
Precision-Machined Internal Bore for True Bearing Alignment
The internal seating bore where the bearing rests is CNC-machined to tight tolerances. If this cavity is slightly tapered, out-of-round, or rough, the bearing operates tilted. That misalignment causes uneven roller contact, poor grease circulation, and premature bearing failure. With the precise bore finish of the H&K SN 510, bearings seat true, turn freely, and run without unnecessary mechanical stress.
Standardized Dimensions for Quick Drop-In Replacement

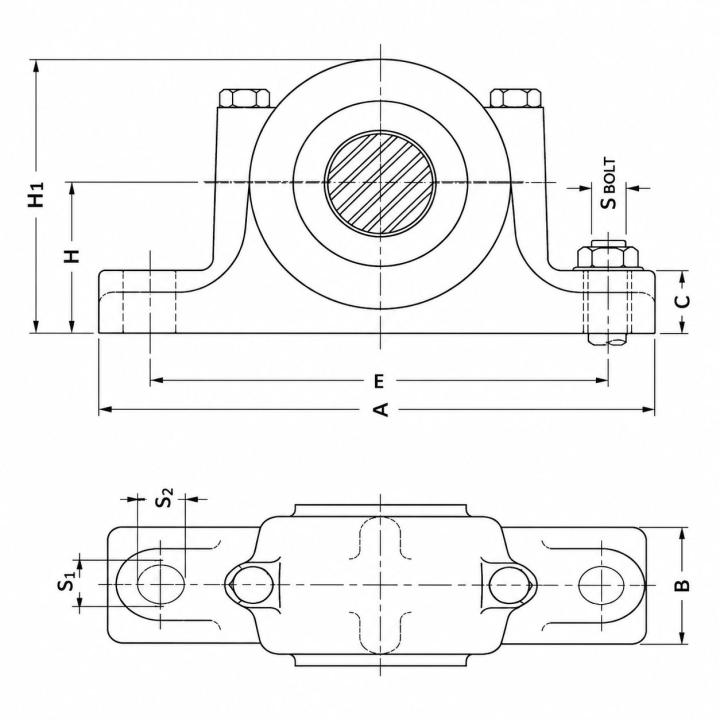

Plant technicians need replacement parts that install without fuss. The H&K SN 510 follows global plummer block mounting standards. Center-height dimensions, base bolt spacing, and foot thickness match standard industrial footprints worldwide. You can remove an older, worn-out 510-series housing and install the H&K replacement right away—no need for flame cutting, base plate drilling, or welding adjustments.
Where is the H&K SN 510 Housing Typically Used?
Thanks to its balanced size, steady footprint, and ability to handle moderate-to-heavy industrial loads, the SN 510 is a widely utilized housing model across numerous production facilities:
- Belt Conveyors and Transfer Rollers: Supporting head drive drums and tail pulleys across packaging, parcel handling, and automated warehouse systems.
- Centrifugal Fans and Industrial Blowers: Providing rigid, low-vibration shaft support for high-volume ventilation fans operating continuously in manufacturing plants.
- Grain Mills and Feed Processing: Supporting bucket elevators, vibrating seed cleaners, and screw augers handling corn, grain, and animal feed.
- Mechanized Woodworking & Milling: Stabilizing cutter shafts, multi-blade rip saws, surface planers, and veneer laminating rollers.
- Textile and Printing Equipment: Guiding roll unwinders, calendar rolls, and printing cylinders where smooth, flutter-free rotation is essential for product quality.
- Aggregate Screening & Washing Lines: Supporting sand washing screws and rotary screening drums operating in demanding, dust-heavy conditions.
Wherever a rotating steel shaft demands steady alignment, reliable load capacity, and continuous smooth rotation, the SN 510 stands as a dependable choice.
Practical Tips to Maximize Housing and Bearing Service Life
While H&K housings are built to last, observing these practical installation and lubrication practices will keep your equipment running smoothly:
- Clean and Level the Mounting Foundation: Never mount the housing on an uneven, rusty, or paint-encrusted base. Tightening mounting bolts onto an irregular surface warps the casting, distorting the bearing seat and generating high operating temperatures.
- Tighten Fasteners Gradually in an Alternating Pattern: Avoid torquing down one bolt fully before touching the other. Snug bolts progressively in an alternating sequence to distribute clamping pressure evenly across the housing body.
- Avoid Over-Greasing: Packing a housing completely full of grease causes internal friction, churning, and excessive operating heat. As a general rule, fill only one-third to one-half of the free interior volume with suitable grease.
- Inspect Side Seals Regularly: Sealing rings protect against grease escape and keep out external dust and moisture. During routine inspections, make sure seals remain pliable and seat cleanly against the shaft.
- Stay Alert to Unusual Sounds and Temperatures: Under normal operation, a properly mounted bearing runs smoothly and moderately warm. Squeaking noises, audible rumbling, or sudden heat spikes indicate the unit should be inspected promptly.
Frequently Asked Questions About the SN 510 Housing
1. What components are included with this housing package?
The standard package includes the split housing casting (the base and matching top cap) along with the cap connecting bolts. Internal rolling bearings, adapter sleeves, lock nuts, and side seals are selected separately to match your exact shaft diameter and operational requirements.
2. Do I need to remove the top cap every time I grease the bearing?
No. The H&K SN 510 housing features a dedicated relubrication port on the cap, allowing technicians to inject fresh grease directly with a standard grease gun without opening the unit.
3. What distinguishes an authentic H&K housing from unbranded options?
Generic alternatives often use brittle scrap cast iron with uneven bolt layouts and loose machining tolerances that lead to vibration and premature wear. Authentic H&K housings offer clean, uniform castings and precision-bored bearing seats that protect bearings and shafts over years of continuous service.
4. How can I confirm that the SN 510 matches my machinery?
Check the model code cast onto your existing housing lid, or measure your shaft diameter and the center-to-center distance between base mounting bolts. The engineering team at KGICO is also available to verify compatibility directly from your equipment measurements.
