H&K SN 511 Plummer Block Housing
H&K designed the SN 511 to deliver uncompromising endurance alongside daily operational convenience. This unit is far more than a simple casting; it represents decades of metallurgical engineering focused on absorbing harsh harmonic frequencies, dampening sudden shock loads, and shielding delicate internal rolling surfaces against abrasive particulate ingress. Choosing the SN 511 gives your machinery a renewed operational lifespan while protecting your facility against costly disruptions.
Product Detail
Industrial Split Pillow Block Housing H&K SN 511
A steadfast support for nonstop rotation; the unsung hero powering your industrial production lines
What is the SN 511 Bearing Housing and Why is It Vital for Your Workshop?
Modern industry cannot exist without motion. From the compact conveyor belts running inside automated packaging warehouses to massive heavy-duty mills churning materials around the clock, every piece of machinery shares one essential element: spinning steel shafts. These precision metal shafts transmit mechanical drive power directly to where work happens. Yet have you ever stopped to consider what keeps these heavy rotating components centered, stable, and completely vibration-free under extreme loads? It is an understated yet foundational component: the industrial split bearing housing.

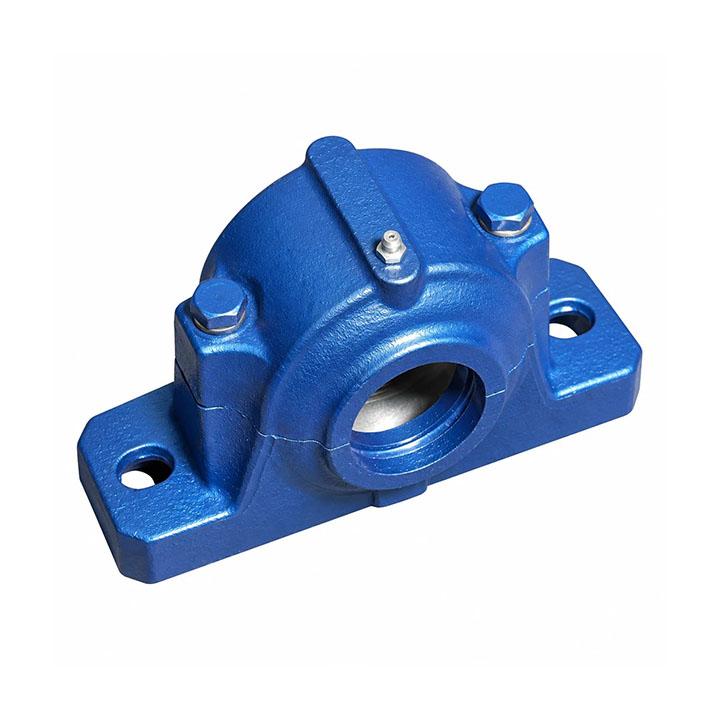

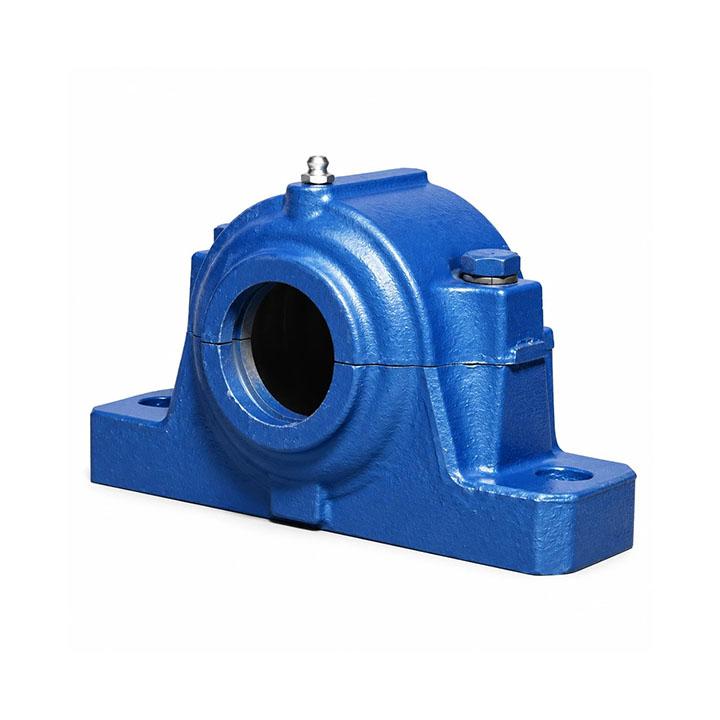

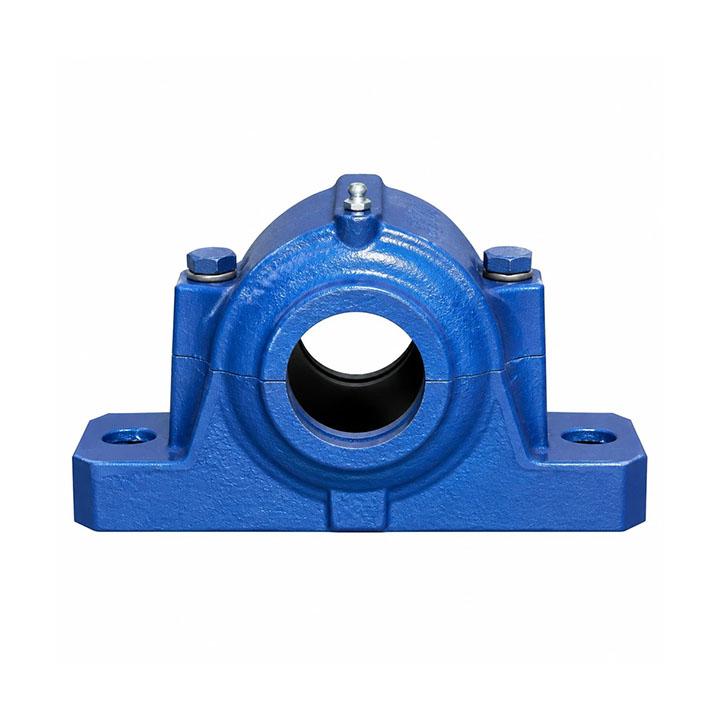

The H&K SN 511 Bearing Housing is a rugged cast iron enclosure specifically engineered to cradle rolling bearings—whether self-aligning ball bearings or spherical roller bearings—and lock them firmly in position. Think of this housing as an impenetrable, vibration-damping fortress. Without the structural integrity of the SN 511, rolling elements bear uneven radial stresses directly, grease degrades rapidly from elevated thermal friction, internal raceways crack, and entire production sections grind to an expensive, unplanned halt. Installing this housing provides an isolated, cooled, and wobble-free operational sanctuary for the beating heart of your equipment.
H&K designed the SN 511 to deliver uncompromising endurance alongside daily operational convenience. This unit is far more than a simple casting; it represents decades of metallurgical engineering focused on absorbing harsh harmonic frequencies, dampening sudden shock loads, and shielding delicate internal rolling surfaces against abrasive particulate ingress. Choosing the SN 511 gives your machinery a renewed operational lifespan while protecting your facility against costly disruptions.
The Split-Housing Advantage: Putting an End to Maintenance Nightmares
Anyone with frontline shop-floor experience understands the grueling hassle of uncoupling heavy drivelines simply to grease, inspect, or swap out a damaged rolling bearing. In outdated solid one-piece housings, even routine bearing upkeep required pulling the entire drive shaft out. Maintenance teams had to unbolt drive belts, disconnect chain linkages, extract sprockets, and unseat electric motors—all just to reach a single bearing assembly. That tedious procedure regularly consumed full work shifts or even multiple days, racking up massive bills in overtime labor and idle machinery.
The split architecture of the H&K SN 511 Bearing Housing permanently eliminates those logistical nightmares. The housing body divides neatly into two matched halves: a solid mounting base bolted directly to your frame or foundation, and a precision-mating upper cap secured by sturdy cap bolts.

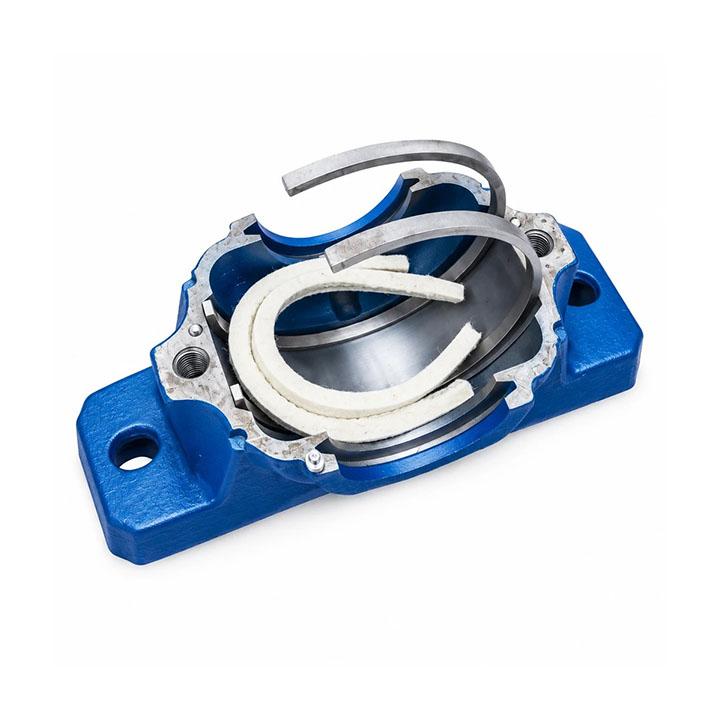

When service intervals arrive or inspection is due, your technicians merely loosen the top cap bolts and lift the lid away. The entire bearing assembly, adapter sleeve, and seal package sit fully exposed right in front of you. You can check lubrication levels, inspect roll paths, flush out contaminated grease, or install a replacement bearing without shifting the drive shaft by even a fraction of a millimeter. By compressing complex overhauls down to a quick, low-stress operation, the SN 511 helps transform frantic breakdown repairs into predictable, efficient preventive maintenance.
Zero Driveline Disassembly
Inspect and swap bearings directly by unbolting the top cap, eliminating tedious shaft, belt, and sprocket teardowns.
Dynamic Shock & Vibration Damping
Dense cast iron construction acts like an industrial shock absorber, cushioning continuous rotations and dynamic loads.
Maximized Machinery Longevity
Robust sealing grooves bar environmental grit and moisture, curbing premature wear and cutting repeat purchase expenses.
Why is the H&K SN 511 a Professional Choice?
Foundry Purity That Endures Heavy Mechanical Stress
Every H&K housing is backed by strict metallurgical standards. The SN 511 is cast from premium grey iron, an industrial alloy celebrated for high compressive strength and outstanding fatigue endurance. While bargain housings frequently develop hairline stress fractures or thermal warpage under intense operating cycles, the SN 511 preserves geometric stability throughout decades of continuous factory runs.
Global Interchangeability for Painless Upgrades

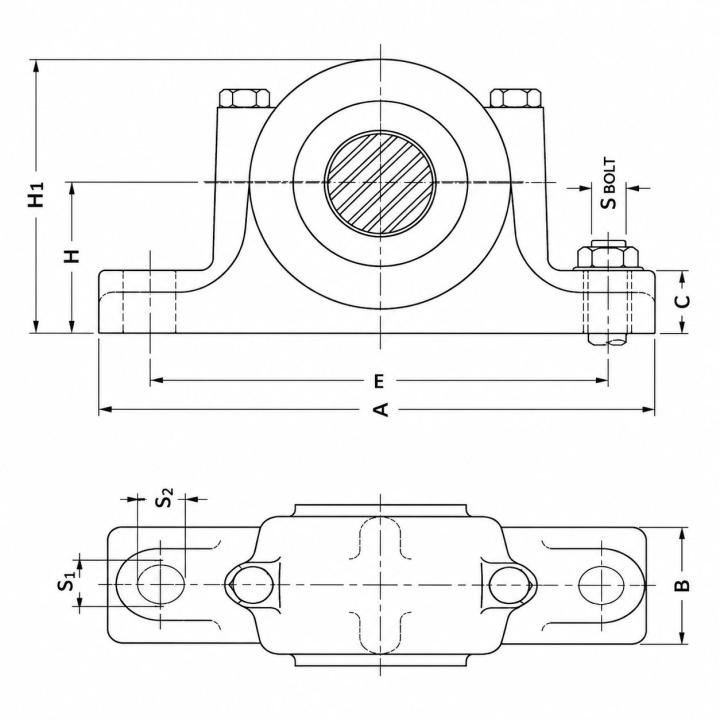

Replacing an aged, worn housing should never turn into a metalworking project. The SN 511 adheres strictly to ISO-compliant plummer block dimensions. Center heights, base footprint geometry, and bolt-hole spacing correspond exactly with worldwide standards, allowing you to drop this unit straight onto existing steel bases without drilling new mounting holes or welding modifications.
Precision-Bored Bearing Seats for Ultra-Smooth Alignment
The internal bore where the bearing rests is CNC-machined to exacting tolerances. When a bearing housing bore is slightly oval, tapered, or off-center, the bearing runs misaligned, runs hot, and fails prematurely. H&K guarantees a snug, perfectly circular seat, ensuring balanced load distribution across every rolling element inside your assembly.
Where Can You Rely on the SN 511 Housing?
Thanks to its balanced size-to-strength ratio, the SN 511 is one of the most widely deployed plummer blocks across modern production settings. Wherever continuous mechanical drive power meets a rotating shaft, this unit delivers rock-solid support:
- Industrial Conveyors: Supporting driving head drums, return tail rollers, and tension pulleys in packaging centers and logistics sorting hubs.
- Ventilation Blowers & Exhaust Fans: Providing stable shaft support for high-throughput ventilation fans operating inside factories and cleanrooms.
- Food & Beverage Processing: Industrial batch mixers, continuous dough blenders, and raw ingredient transport elevators where quick sanitary service is vital.
- Woodworking & Timber Processing: Heavy multi-roller transport conveyors, high-speed drum sanders, and board sizing feed systems.
- Recycling & Shredding Plants: Intermediate drive shafts driving scrap sorting drums, screening trommels, and granulator feeds.
- Agricultural Machinery: High-capacity grain bucket elevators, seed augers, and rotary sorting equipment.
Whenever your workflow demands an unyielding foundation for smooth, uninterrupted rotation, the SN 511 steps up to keep operations running without unexpected downtime.
Simple Best Practices to Maximize Housing and Bearing Life
Mounting the SN 511 is simple and intuitive, but sticking to these proven maintenance practices will easily double the operating life of your bearing assembly:
- Prepare a Completely Flat Mounting Surface: Never install a plummer block onto uneven, rusty, or paint-caked frame pads. An uneven foundation twists the cast iron base when tightened, clamping down on the bearing and inducing immediate overheating.
- Torque Fasteners in Gradual Stages: Avoid torquing down mounting bolts in one abrupt turn. Tighten base and cap bolts gradually in an alternating crosswise pattern to distribute clamping pressure smoothly throughout the casting.
- Follow the "Less is More" Greasing Rule: The most frequent cause of bearing failure is over-greasing. Filling the housing cavity completely causes grease churning, internal drag, and destructive temperatures. Pack only one-third to one-half of the open space.
- Seat Sealing Rings With Care: Take time to correctly install felt strips or rubber labyrinth seals into their dedicated side channels to keep surrounding dust, grit, and moisture locked outside.
- Listen to Your Machinery: Rotating assemblies always provide early warning signs before seizing. If a housing runs noticeably hot or emits clicking, whining, or grinding sounds, inspect internal lubricant levels promptly.
Frequently Asked Questions
1. Are the internal rolling bearing and adapter sleeve supplied with the housing?
No, the SN 511 package includes the precision split housing (base and cap) along with connecting cap bolts. The rolling bearing, adapter sleeve, and seals are selected separately based on your specific shaft diameter and operating parameters.
2. How can I confirm that size 511 matches my application?
Check the model marking embossed on your existing plummer block cap. If markings are worn off, measure your shaft diameter and mounting bolt center-to-center distance, then reach out to the KGICO engineering desk for instant verification.
3. Must I unbolt the housing cap whenever fresh grease is needed?
Not at all. Standard SN series housings come equipped with threaded relubrication ports and grease nipples, allowing rapid, clean grease replenishment directly from a standard grease gun without disassembly.
4. What sets genuine H&K housings apart from generic alternatives?
The distinction lies in casting integrity and bore machining precision. Cheap alternatives use brittle, porous scrap iron prone to cracking and inaccurate bearing bores that induce harmful runout, whereas H&K delivers consistent balance and longevity.
Need Assistance Selecting the Right Size or Matching Parts?
The technical team at KGICO is ready to assist you in matching the ideal housing, rolling bearings, and accessories for your machines. Contact us today for competitive quotes, stock availability, and complimentary engineering support on H&K SN 511 housings.
