KGI 51207 Thrust Ball Bearings
By crafting the 51207 model from high-density, precision-hardened chromium alloy steel, KGI delivers exceptional resistance against wear, mechanical stress, continuous heat generation, and heavy loads, completely eliminating workshop owners' and technicians' worries over premature equipment failure.
10020013240
Request a quote
Product Detail
KGI 51207 Thrust Ball Bearing
Pure Strength Against Direct Axial Loads; Reliable, Smooth Support for Vertical Rotations
How is Smooth Rotation Possible When Massive Weight Presses Down?
Imagine sitting on a swivel chair and spinning around. If there were no specialized component beneath the seat to support your entire weight while allowing smooth rotation, the chair would lock up and refuse to move. Exactly the same principle applies in heavy industrial machinery and equipment. Hydraulic lifting jacks, heavy vertical drilling machines, crane hooks suspending tons of steel, and rotary positioning tables are all subjected to crushing, direct downward forces operating strictly along their rotational axis.

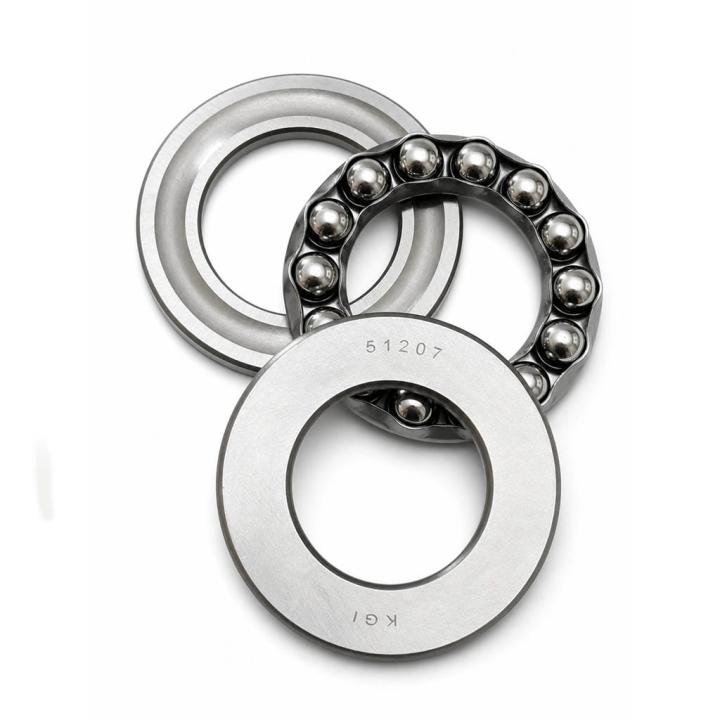

Standard deep groove ball bearings found in bicycle wheels or ceiling fans are engineered to facilitate radial shaft rotation, but if a heavy weight is slammed directly onto them from above, the balls slip out of track and crush the bearing housing. This is precisely where the KGI 51207 Thrust Ball Bearing steps in. Resembling two smooth steel washers sandwiching a ring of robust, hardened steel balls, this bearing is designed specifically to absorb massive downward thrust loads while letting shafts or industrial components spin with ultimate smoothness and quietness.
By crafting the 51207 model from high-density, precision-hardened chromium alloy steel, KGI delivers exceptional resistance against wear, mechanical stress, continuous heat generation, and heavy loads, completely eliminating workshop owners' and technicians' worries over premature equipment failure.
Decoding the Numeric Code: What Does 51207 Actually Mean?
If you are unfamiliar with bearing nomenclature, this five-digit code looks entirely cryptic. In reality, it serves as a complete birth certificate detailing the component's exact engineering standards in plain terms:
- Prefix "51" (Single-Direction Thrust Family): In global bearing standards, "51" designates a single-row thrust ball bearing engineered to absorb heavy axial forces from one direction only, featuring a completely separable component structure.
- Digit "2" (Medium Load Series): Thrust ball bearings generally come in two popular series: "511" (lightweight and thin) and "512" (thicker and heavy-duty). The digit "2" in 51207 indicates that this unit features thicker washers and larger balls than the lighter 51107 version, providing superior load-bearing capacity and a higher safety factor.
- Suffix "07" (Bore Diameter): To determine the shaft size this bearing mounts onto, multiply these final two digits by 5 (7 × 5 = 35 mm). This means the inner bore hole measures precisely 35 millimeters, designed for 3.5 cm diameter shafts.
KGI 51207 Technical and Dimensional Specifications
| Bearing Type | Single-Direction Thrust Ball Bearing |
| Brand Name | KGI (Industrial Standard Engineering Grade) |
| Inner Bore Diameter (d) | 35 mm (Fits 35mm Shafts) |
| Outer Diameter (D) | 62 mm |
| Total Height / Thickness (H) | 18 mm (Thicker and sturdier than the 511 series) |
| Structural Design | Three-Piece Separable (Shaft washer, ball cage assembly, housing washer) |
| Ring & Ball Material | Premium Chromium Alloy Steel with Exceptional Wear Resistance |
| Load Support Capability | Direct Axial Loads Only (Cannot support radial side loads) |
Why Choosing the KGI 51207 Is a Smart Engineering Decision
The market is flooded with inexpensive, unbranded components, but why do skilled mechanics and industrial machine designers rely on the KGI 51207? Let's review its tangible benefits:
- Higher Load Capacity for Identical Shaft Sizes: If your equipment uses a 35mm shaft, the 51107 model is only 12mm thick, whereas the 51207 model boasts an 18mm thickness with larger balls and deeper raceways. This boosts load-bearing capacity by nearly 30%, preventing premature flattening or crushing of the balls under stress.
- Hassle-Free Installation and Maintenance via Separable Design: The washers and ball cage of this bearing are not permanently pressed together. You can place the bottom washer into position, pack the ball cage with fresh grease, and mount the top washer effortlessly. This makes inspection and re-greasing possible in just minutes.
- Smooth, Jam-Free Rotation: The ball guiding raceways on KGI washers are polished to an exquisite, mirror-like finish. This minimizes metal-on-metal friction, prevents operating temperatures from spiking, and eliminates unwanted noise during operation.
- Tough, Fatigue-Resistant Alloy Steel: KGI utilizes high-grade carbon-chromium through-hardened steels. This ensures that even under severe mechanical shocks and machine vibrations, raceways resist indentation and maintain their precise circular geometry over long operating lifespans.
Where Does This Thrust Bearing Work Wonders in the Field?
Wherever heavy weights must be suspended to rotate without friction, the footprint of the 51207 thrust ball bearing is present:
- Industrial Pillar Drills & Bench Drilling Machines: When operators pull down the feed handle to drill through thick steel plates, immense vertical pressure hits the drill spindle. The 51207 absorbs this upward reaction force, keeping the spindle axis cool and stable.
- Hydraulic and Screw Jacks & Lifts: In mechanical jacks driven by Acme lead screws, the screw head must spin smoothly under heavy vehicle or cargo loads to elevate them. This bearing sits directly beneath the lift nut to facilitate seamless turning.
- Workshop Rotary Tables & Positioning Fixtures: On tables used for welding or machining heavy workpieces, this bearing supports the massive weight of the part so the table spins easily with minimal manual effort.
- Heavy-Duty Industrial Valves & Sluice Gates: Opening and closing massive oil, gas, or dam water valves requires substantial torque. Installing a thrust bearing in the valve stem allows operators to turn handwheels without excessive strain.
- Overhead Crane Swivel Hooks: To allow multi-ton suspended loads to rotate freely 360 degrees without twisting wire ropes or chains, this bearing is integrated directly into the hook swivel joint.
Essential Guidelines for Flawless Installation and Maintenance
Thrust bearings feature a simple design, but a small mistake during installation can crush the component entirely within hours. Keep these workshop best practices in mind:
1. Never Mix Up the Shaft and Housing Washers (Critical Step): Measure the bearing washers carefully with calipers. One washer has a tighter bore hole (precisely 35mm) while the other has a slightly looser bore hole (approx. 36mm). The tighter washer must fit snugly onto the rotating shaft and spin with it, whereas the looser washer must rest stationary against the machine housing so the rotating shaft clears it. Mixing these up will lock up your machine instantly!
2. Never Subject It to Radial Side Loads: This bearing is engineered strictly for axial loads directed squarely onto its face. If your shaft has lateral play or side-to-side vibration, you must pair this unit with a standard deep groove ball bearing to handle the radial forces.
3. Generous Greasing with High-Quality EP Grease: Thrust bearing balls rotate openly within their raceway tracks. Prior to assembly, pack the space between the balls thoroughly with a high-grade lithium-complex grease to eliminate friction and block out contaminants.
4. Flat and Aligned Seating Surfaces: The mounting surface supporting the bearing washer must be perfectly flat, burr-free, and perpendicular to the axis. A skewed seating surface concentrates all loads onto just two or three balls, crushing them prematurely.
Frequently Asked Questions (FAQ) About KGI 51207
What is the main difference between the 51107 and 51207 bearings?
Both bearings mount onto 35mm shafts, but the 51207 features a larger outer diameter (62mm vs 52mm) and greater thickness (18mm vs 12mm). This means 51207 has larger balls and thicker washers, making it built for significantly heavier loads and harsher operating conditions.
Is the 51207 thrust bearing suitable for ultra-high-speed electric motors (e.g., 3000 RPM)?
No. Due to centrifugal forces acting on the open ball arrangement, thrust ball bearings are not built for very high rotational speeds. They reign supreme in low-to-medium speed applications under heavy, continuous axial loads.
Does this bearing absorb thrust forces in both forward and reverse directions?
No, the 51207 is a single-direction thrust bearing, meaning it absorbs loads applied from only one side. To handle bidirectional thrust forces, double-direction thrust bearings (such as the 522 series) must be used.
Ensure Smooth, Vibration-Free Rotation with KGI Industrial Bearings
Heavy industrial machinery operating under demanding workloads leaves no room for trial and error. Investing in high-quality, precision-engineered components prevents costly unplanned downtime and frequent repairs. As a specialized industrial parts supplier, KGICO provides genuine KGI 51207 thrust ball bearings backed by alloy hardness testing, authenticity guarantees, and direct wholesale pricing for factories and workshops nationwide.
