H&K SN 512 Plummer Block Housing
By designing the SN 512, the H&K brand offers much more than just a metal shell; it provides a comprehensive protective shield. This dense cast iron component absorbs all destructive vibrations and sudden impacts generated during machine operation. It prevents dust, metal chips, and ambient moisture from penetrating the bearing cavity and causing damage. By utilizing the SN 512, you grant your machinery a longer operational lifespan and yourself absolute peace of mind.
Product Detail

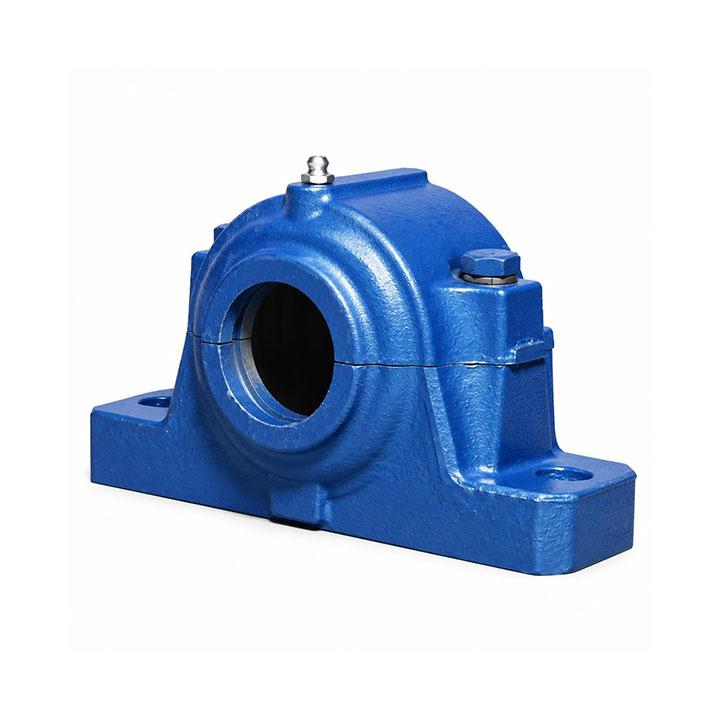

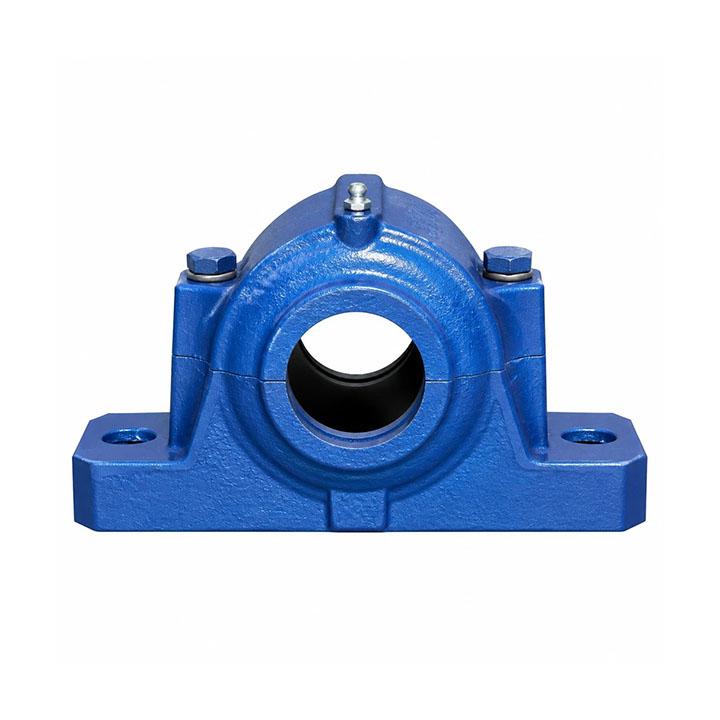

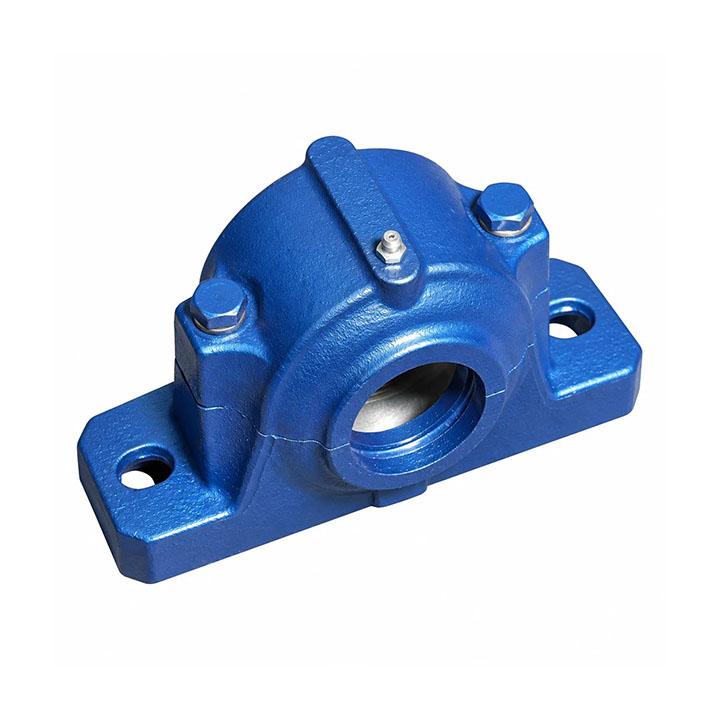

Industrial Split Pillow Block Housing H&K SN 512
A reliable companion for continuous rotation; a robust shield for the beating heart of your machinery
What is the SN 512 Bearing Housing and Why is It Vital for Your Workshop?
If you look inside industrial machinery—whether it is a packaging machine, a material mill, or a conveyor belt transporting heavy loads—you will always find one constant element: a solid steel rod called a shaft that spins continuously. This shaft transfers motor power to the active sections of the equipment. But imagine what would happen if this heavy, fast-spinning metal rod had no rigid support. Without doubt, everything would start vibrating violently within seconds, components would smash into each other, and the machine would grind to a halt with a loud, harsh noise. This is where bearing housings step into action.
The H&K SN 512 Bearing Housing serves as a secure "safe home" for your rolling bearing (whether ball or roller bearing). This housing cradles the bearing and prevents it from shifting even a fraction under heavy operational loads. Put simply, it acts as the vital bridge between the rotating shaft and the fixed machine frame. Without this housing, bearings would suffer premature wear, their grease would dry out quickly, and they would eventually lock up.
By designing the SN 512, the H&K brand offers much more than just a metal shell; it provides a comprehensive protective shield. This dense cast iron component absorbs all destructive vibrations and sudden impacts generated during machine operation. It prevents dust, metal chips, and ambient moisture from penetrating the bearing cavity and causing damage. By utilizing the SN 512, you grant your machinery a longer operational lifespan and yourself absolute peace of mind.
The Split-Housing Advantage: Putting an End to Maintenance Nightmares
What is the greatest fear of every maintenance manager or factory owner? Unplanned production downtime. In older solid, one-piece bearing housings, whenever a bearing failed or required thorough greasing, workers were forced to pull the entire shaft completely out of the machine. This meant dismantling drive belts, chains, sprockets, gears, and sometimes even parts of the machine itself. Such procedures consumed hours or full days, driving up labor costs and production losses.

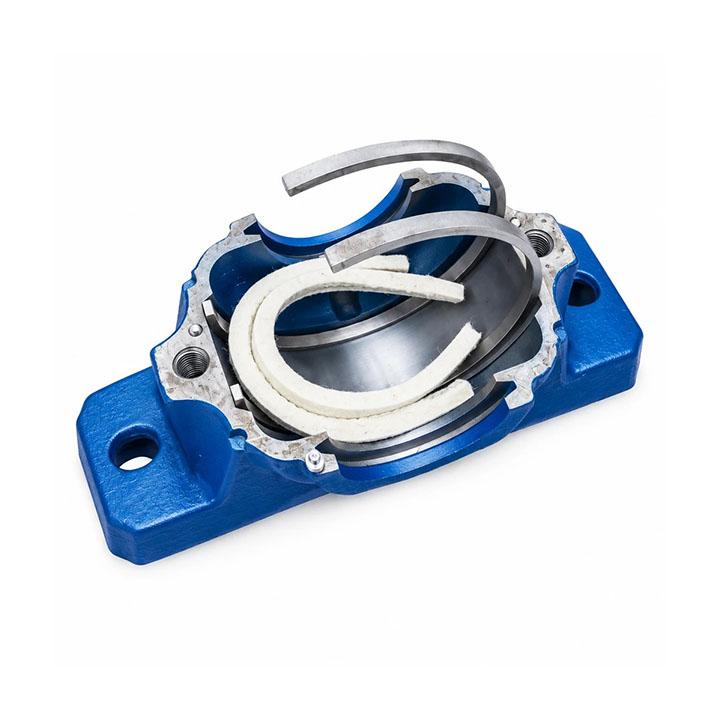

However, the two-piece design of the H&K SN 512 Bearing Housing changes this equation in your favor. The housing body consists of two separable halves: a base that bolts to the machine and a top cap that secures over it. What does this mean for you? If you ever need to inspect the bearing, you simply loosen and remove the two upper cap bolts and lift the cover off.
All internal components are immediately accessible. You can check the bearing condition, apply fresh grease, or replace it entirely without moving the shaft even a single millimeter! This reduces maintenance time from hours to mere minutes—the key difference between a chaotic workshop and an organized, efficient factory.
No Machine Disassembly Required
Gain instant access to the bearing by simply removing the top cap, without getting tangled up in belts or shafts.
Vibration and Impact Dampening
The heavy, precision cast iron body acts like a shock absorber, protecting the shaft from operating impacts.
Extended Component Lifespan
With full protection against dirt and moisture, internal parts experience less wear, reducing replacement costs.
Why is the H&K SN 512 a Smart Choice?
Manufacturing Quality That Gives You Peace of Mind
When you choose H&K, you are investing in precision casting. The body of the SN 512 is made from high-grade cast iron, a material renowned in industry for its toughness and durability. Unlike cheap housings that can crack under pressure or warp over time, this product maintains its structural integrity over years of continuous service.
Global Standards; Hassle-Free Replacement

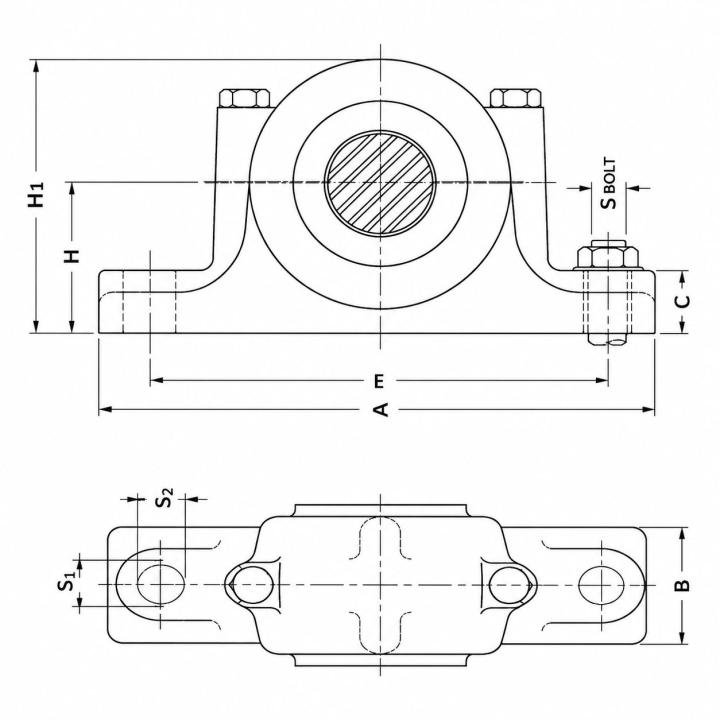

Worried that your old housing is damaged and a new replacement won't fit your machine? There is no need for concern. The 512 size follows international dimensional standards. Mounting bolt holes, shaft centerline heights, and overall dimensions match standard profiles. You can easily remove the old housing and drop this model right into place without any drilling or welding modifications.
Precision-Machined Internal Seats
The bearing seat inside this housing is machined to exceptional accuracy. This ensures your bearing sits perfectly centered. If a bearing sits slightly crooked or loose, the machine will vibrate and fail prematurely. The precision machining of the SN 512 ensures the bearing fits snugly inside the housing like tailored clothing.
Where Can You Rely on the SN 512 Housing?
This housing is so popular that you will find it in almost any industrial workshop. If you operate machinery featuring a rotating shaft, there is a strong probability you need one of these:
- Conveyor Systems: Driving conveyor rollers in packaging plants, warehouses, and logistics hubs.
- Industrial Fans and Blowers: Serving as shaft supports for large ventilation fans that circulate factory air.
- Food Processing Lines: Industrial mixers, dough kneaders, and snack packaging production lines.
- Woodworking and Timber Machinery: Roller tables, heavy drum sanders, and board press lines.
- Mining and Recycling: Drive shafts for plastic granulators, recycling shredders, and material sifters.
- Agricultural Equipment: Grain elevators, seed processing units, and auger drives.
In summary, wherever you need a sturdy, reliable support for smooth rotation, the SN 512 is there to keep operations running smoothly.
Easy Installation: Simple Tips to Double Your Bearing Life
Mounting the housing is straightforward, but following a few simple tips ensures your setup runs smoothly for years:
- Ensure the Mounting Foundation is Flat: If the chassis seat is uneven or has burrs, tightening the housing bolts will warp the body and pinch the internal bearing.
- Tighten Fasteners Gradually in Stages: Never tighten housing bolts fully on one side all at once. Tighten them in a crosswise pattern step by step to distribute stress evenly.
- Less is More (Regarding Grease): The biggest mistake is packing the housing to the brim with grease. Excess grease causes churning and overheating. Fill about one-third to one-half of the cavity.
- Do Not Forget the Seals: Position felt or labyrinth seals correctly in their grooves to keep workplace dust and dirt out of the assembly.
- Listen Closely! Your machinery communicates with you. If you hear unusual noises or feel excessive heat during initial test runs, investigate immediately.
Frequently Asked Questions
1. Are the rolling bearing and adapter sleeve included with the housing?
No, the SN 512 housing includes the cast iron shell, top cap, and connecting bolts. The bearing and adapter sleeve must be purchased separately according to your shaft diameter.
2. How do I know if size 512 is right for my machine?
Check the model designation stamped on your old housing. If it is worn off, measure the shaft diameter and bolt center distances, and consult KGICO technical support.
3. Can this housing be used in high-speed applications?
Yes, these housings are built for standard and heavy-duty operation. If your machine runs at very high RPMs, ensure you use a high-quality precision bearing and suitable high-speed grease.
4. Do I need to dismantle anything for routine relubrication?
Most SN models feature integrated grease nipples (zerks) that make relubrication simple without requiring full disassembly.
5. Why do cheap housings fail prematurely?
Low-quality housings are often made of brittle or substandard cast iron that cracks under initial stress. Lack of seat machining accuracy also causes the bearing to slip and vibrate.
Still Hesitating on Size Selection or Compatible Accessories?
The KGICO engineering team is ready to guide you toward the right choice. Contact us today for up-to-date pricing, free technical consultation, and ordering your H&K SN 512 housing.
